RPZ Valve
RPZ Valve
Our products are manufactured using advanced technologies and testing equipment. All items are controlled strictly in accordance with ISO9001 quality systems. We provide high-quality valve solutions suitable for diverse industrial environments.
Key Features:

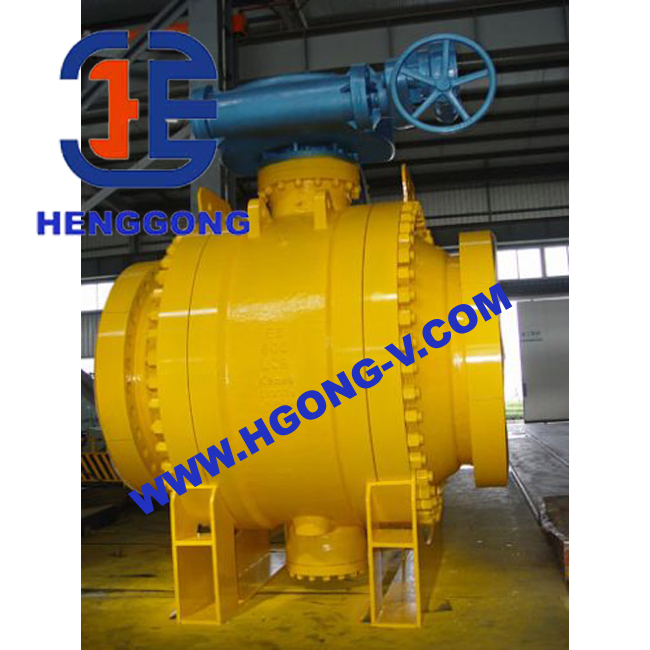

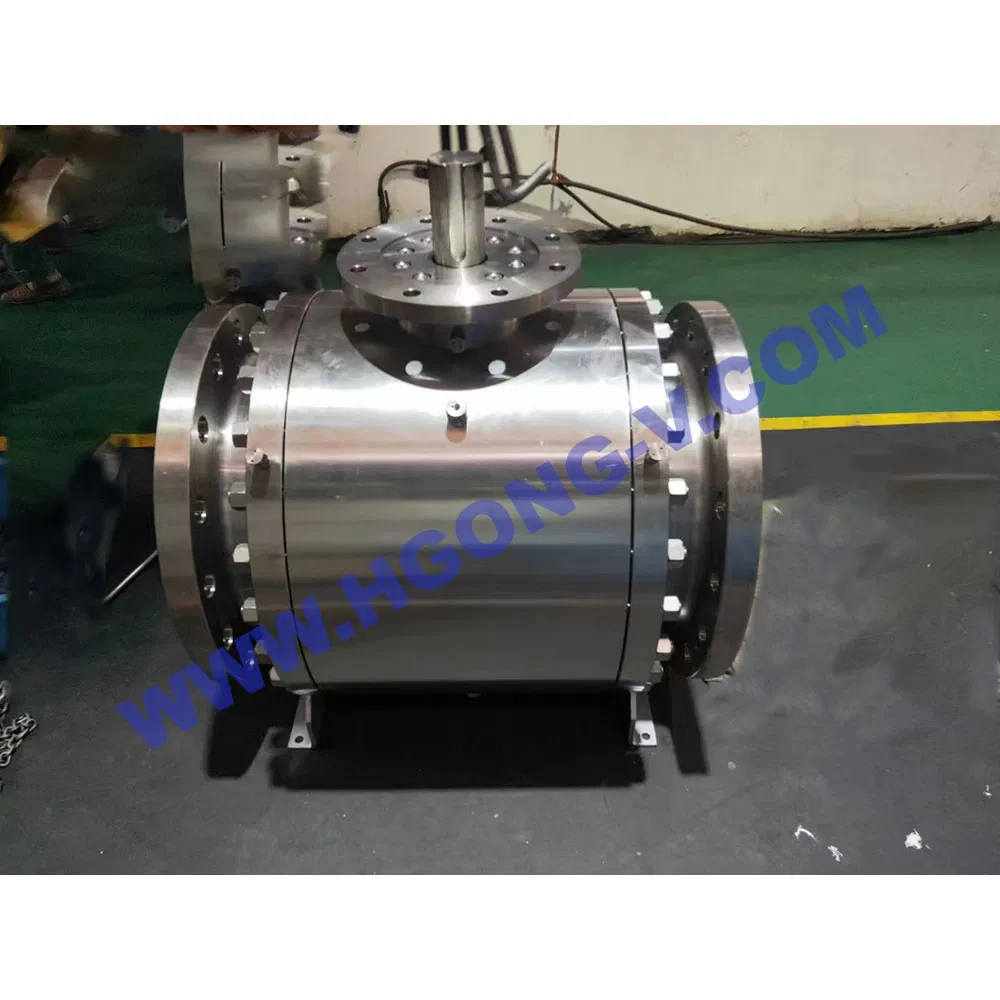

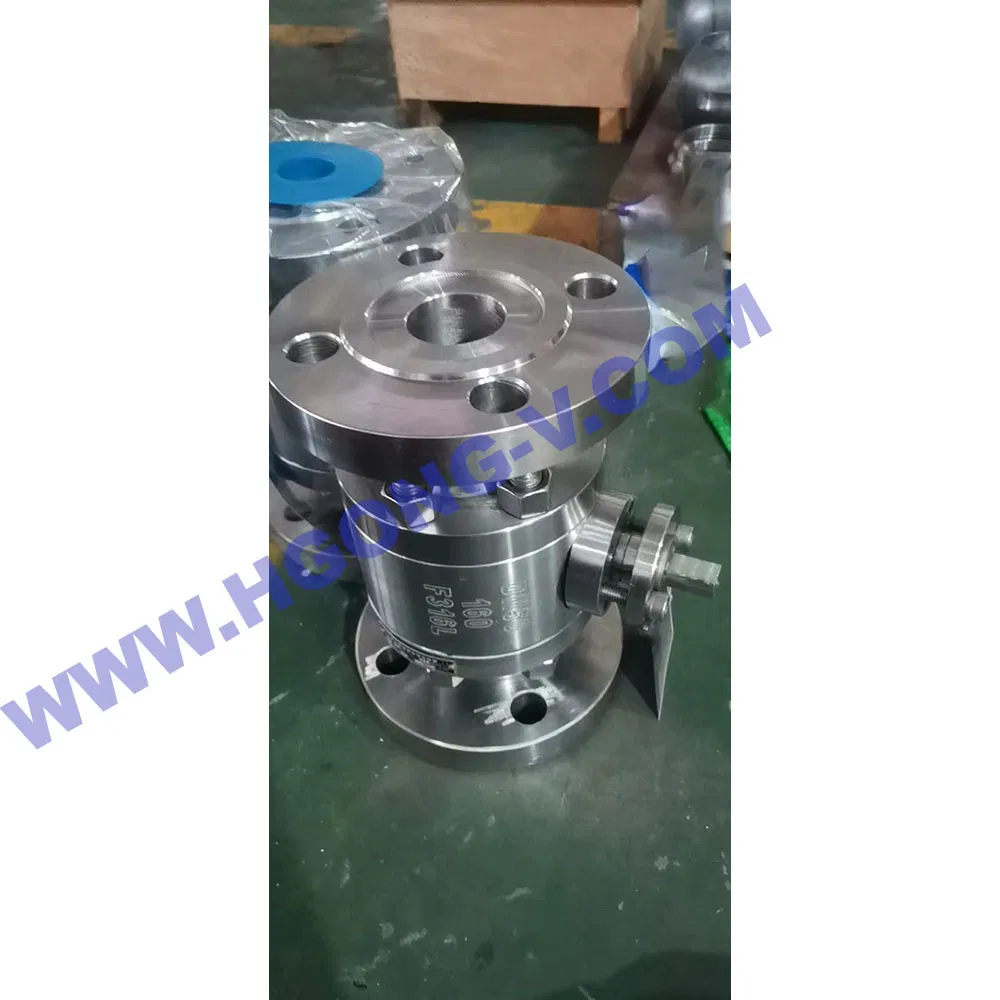

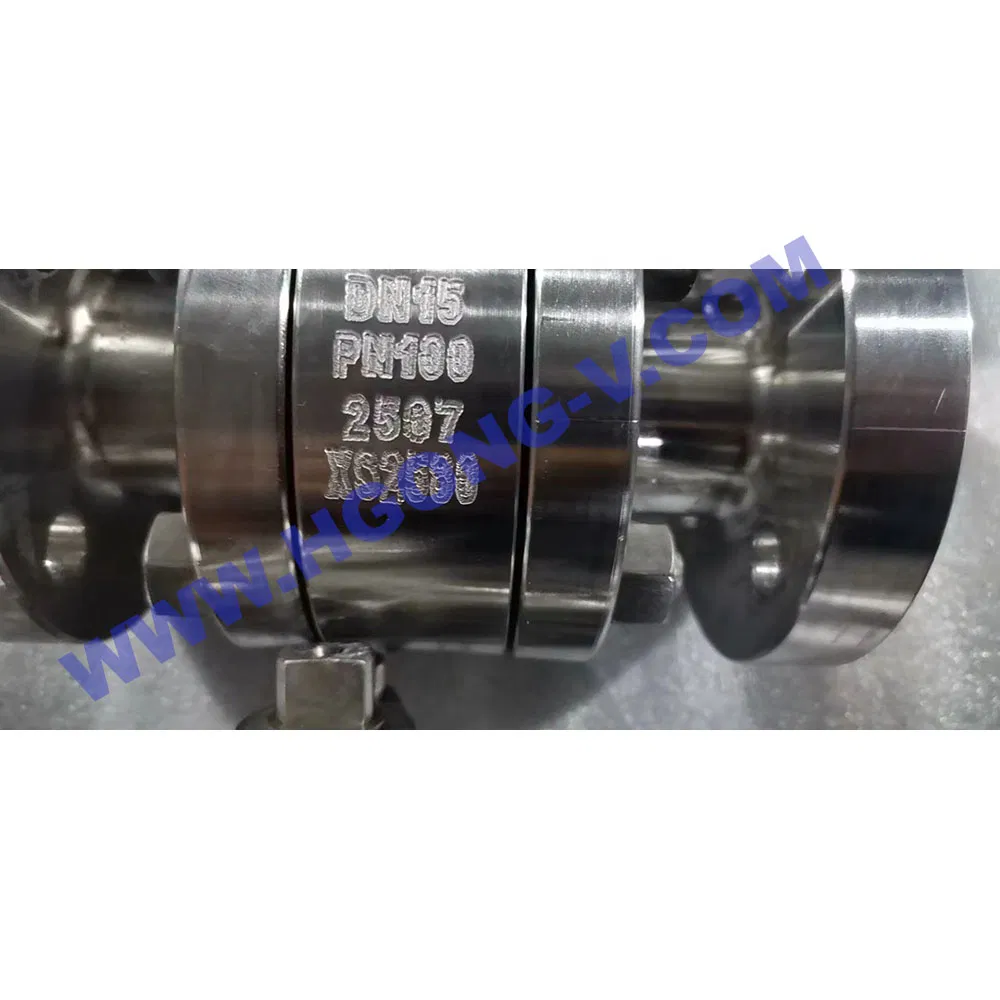

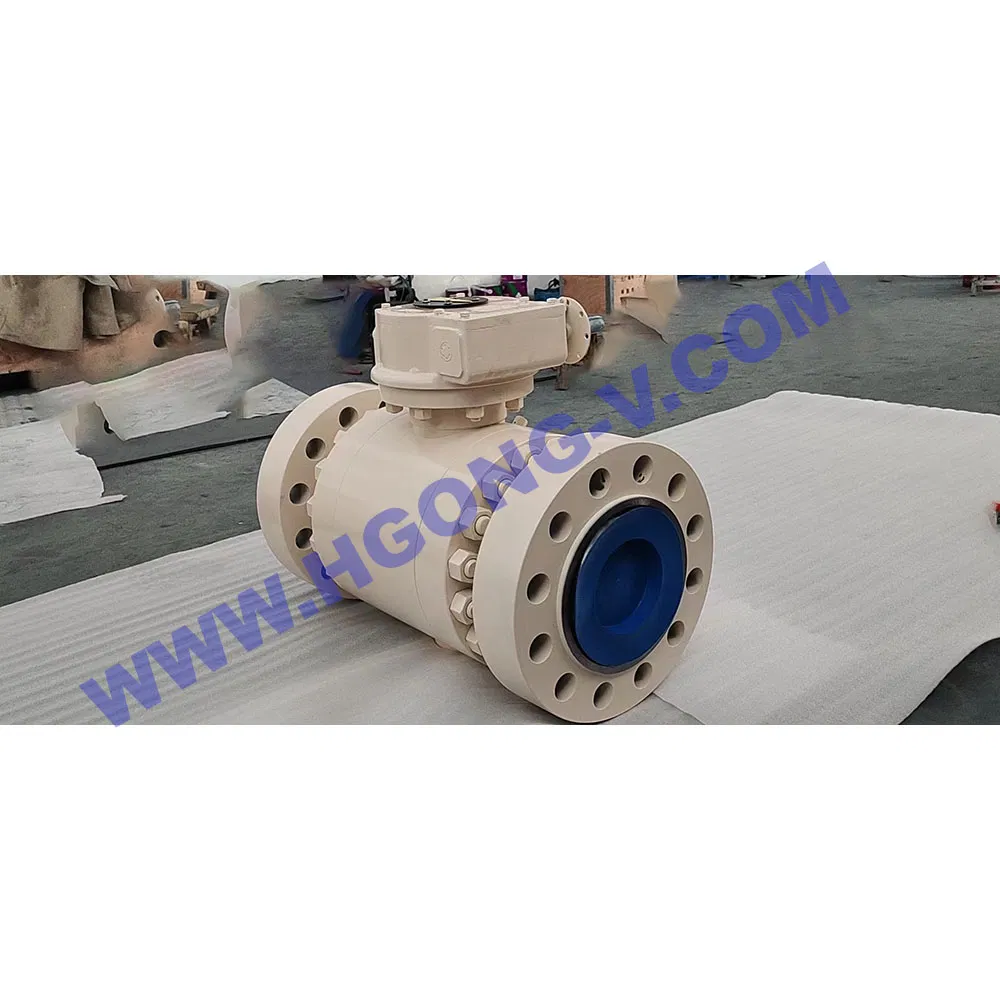

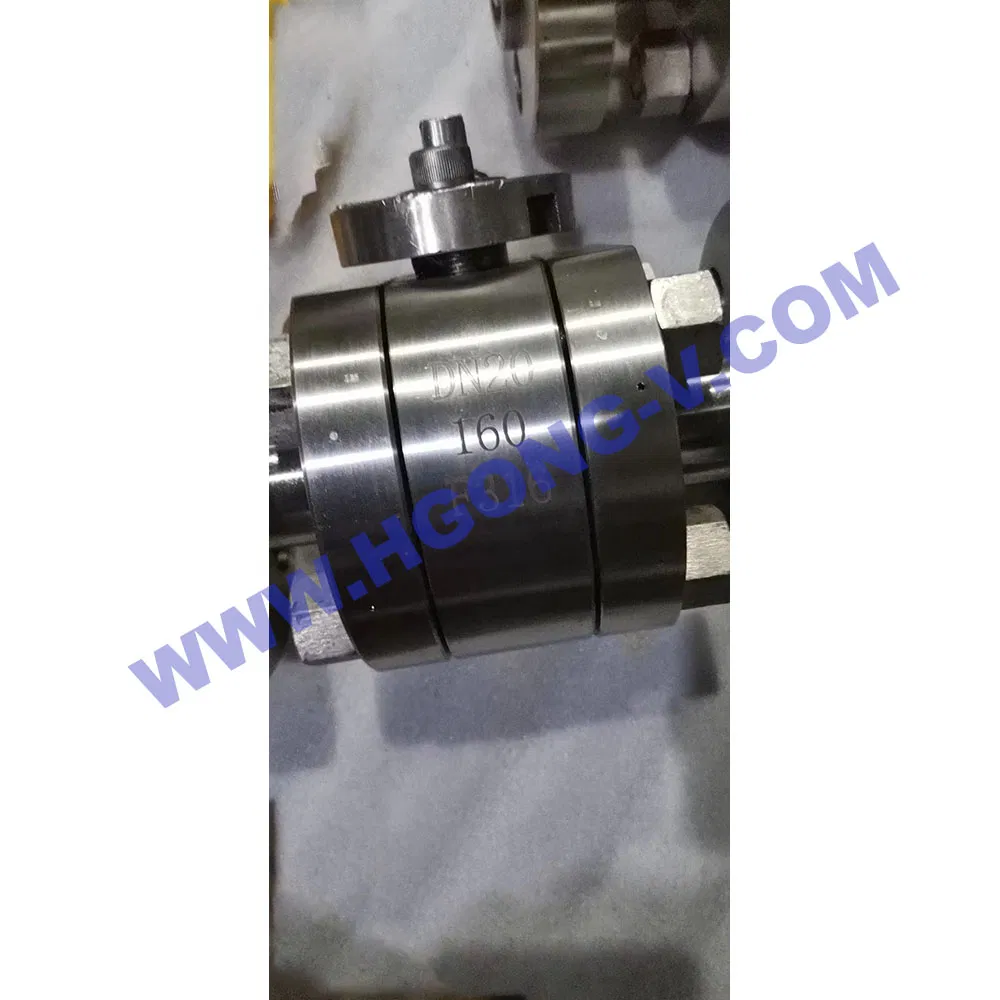

• ANSI6D C.S Trunnion Mounted BALL VALVE with Drain Plug
• Bolted cover, Two-piece or three-piece Body, fixed Ball
• Full or Reduced bore, Blowout Proof Stem
• Fire safe and Anti-static design
• Dual seat with injection and drain & outlet
Standards Compliance:
Design: ANSI 6D, ANSI B16.34 | Face to face: ANSI 6D, ANSI B16.10 | Flange: ANSI B16.5 | Fire-safe: ANSI 607, ANSI 6FA | Test: ANSI 6D, ANSI 598
| Nominal Pressure | 0.6 | 1.0 | 1.6 | 2.0 | 2.5 | 4.0 | 5.0 | 6.4 | 10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Shell Test Pressure | 0.9 | 1.5 | 2.4 | 3.0 | 3.8 | 6.0 | 7.5 | 9.6 | 15 | |
| Sealing Test | 0.66 | 1.1 | 1.16 | 2.2 | 2.8 | 4.4 | 5.5 | 7.1 | 11 | |
