Product Description

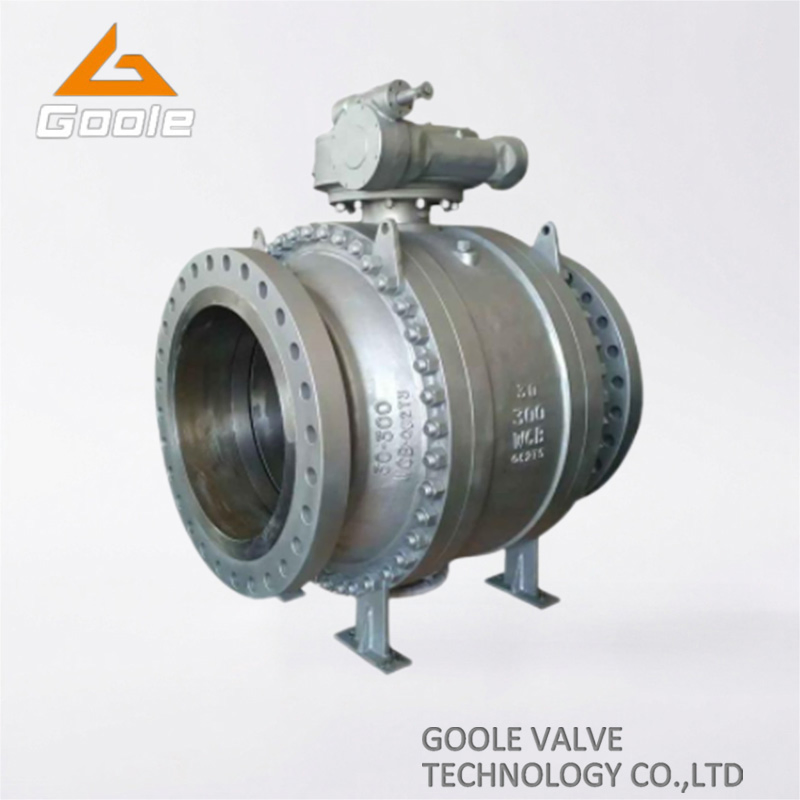

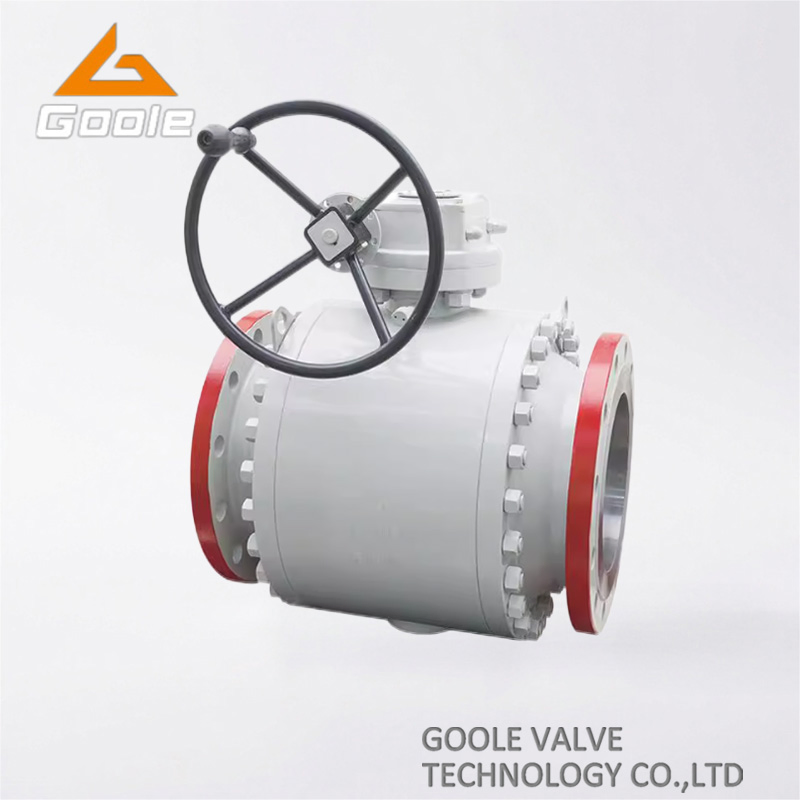

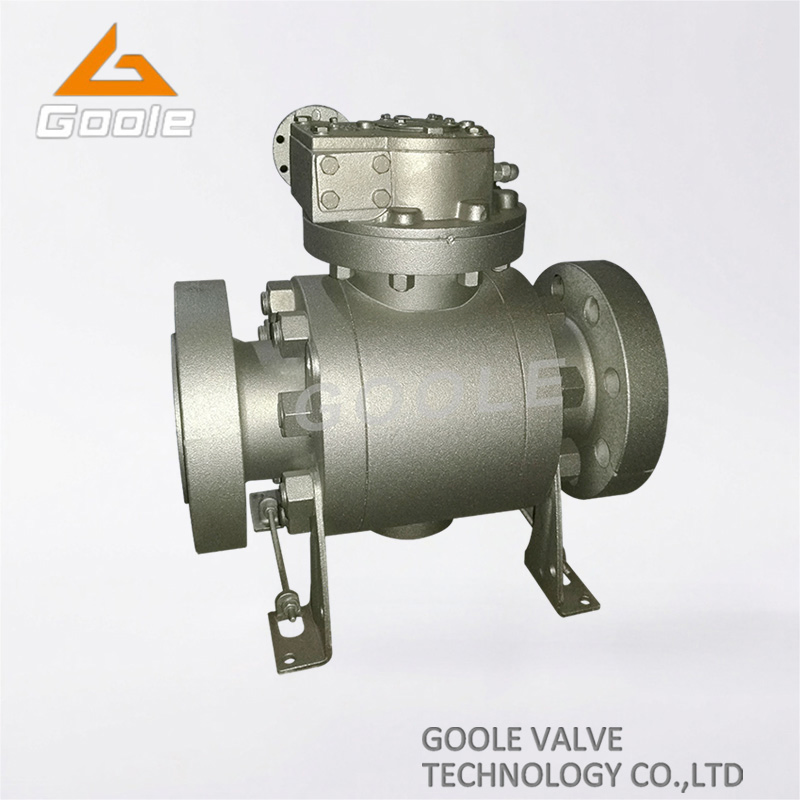

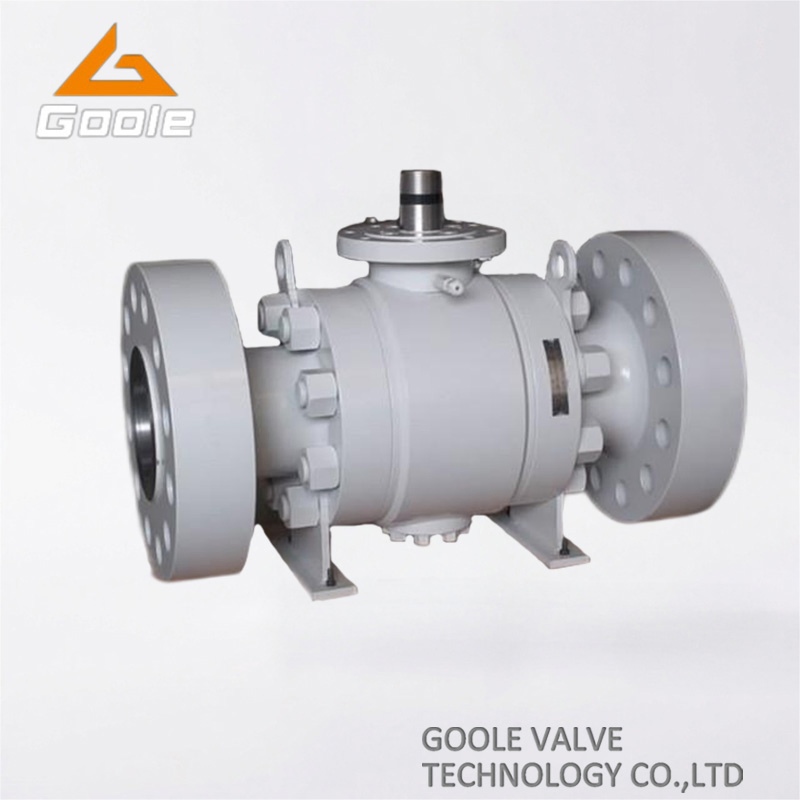

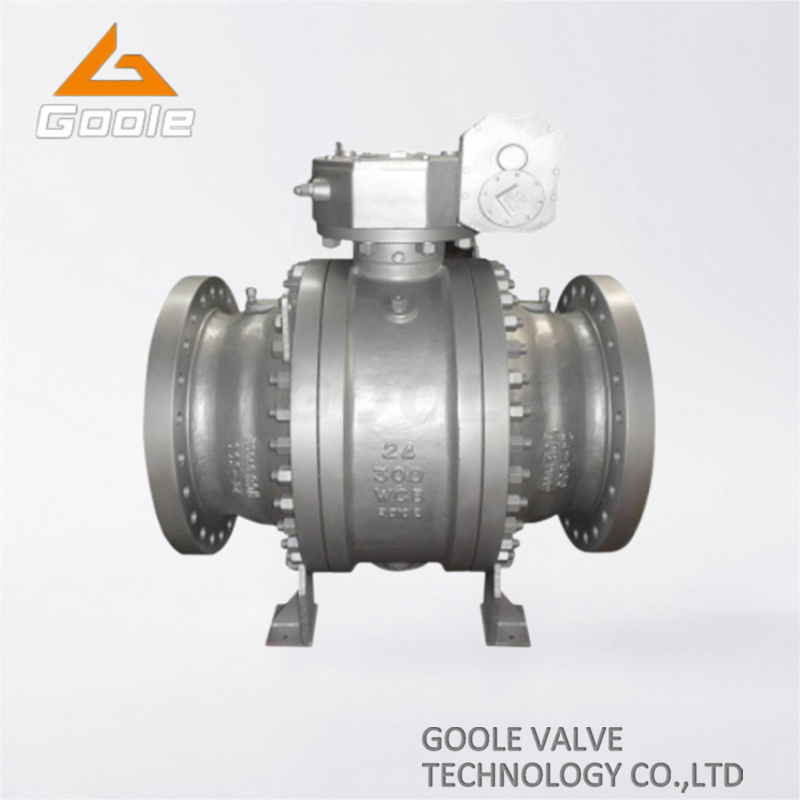

3PCS High Pressure Trunnion Mounted Ball Valve
The 3PCS Standard Port Forged Trunnion Ball Valve is engineered to provide robust, long-term operation under a wide range of industrial conditions. Unlike typical valves, this model features a standard port design, ensuring the internal bore matches the pipe size, which promotes smooth, unrestricted flow with minimal turbulence. This design is beneficial for systems that require steady, uninterrupted fluid transport.
The valve body is forged steel, which provides superior structural integrity compared to other materials, making it resistant to the stresses of heavy-duty use. Whether you need full bore or reduced bore options, the 3PCS valve delivers flexibility for various flow requirements. Its spring-loaded seats further optimize the sealing capabilities, ensuring consistent sealing even under fluctuating pressures, ensuring fluid tightness throughout the life of the valve.
Frequently Asked Questions
What are the advantages of a trunnion mounted design?
The trunnion design provides a fixed ball supported by bearings, which reduces operating torque and ensures effective sealing even at extremely high pressures compared to floating ball designs.
Is this valve suitable for high-temperature applications?
Yes, while the standard configuration is for normal temperatures, the metal-to-metal seat option and forged steel body allow for excellent performance in demanding thermal environments.
What is the difference between Full Bore and Reduced Bore?
Full Bore valves have an internal diameter equal to the pipe, minimizing pressure drop. Reduced Bore valves have a smaller internal opening, which is often more cost-effective for specific flow control needs.
Can this valve be automated?
Absolutely. While the standard mode is manual (handle), the design is compatible with pneumatic and electric actuators for remote or automated system integration.
What standards do these valves comply with?
Our trunnion mounted ball valves are manufactured in accordance with international standards such as API 608 and ISO 9001 quality management systems.
What is the typical warranty period?
The standard warranty period for this product series is 12 months from the date of installation or delivery.
