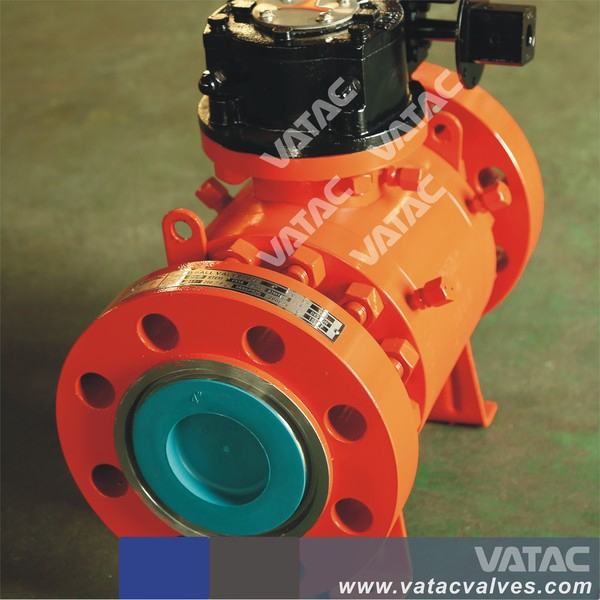

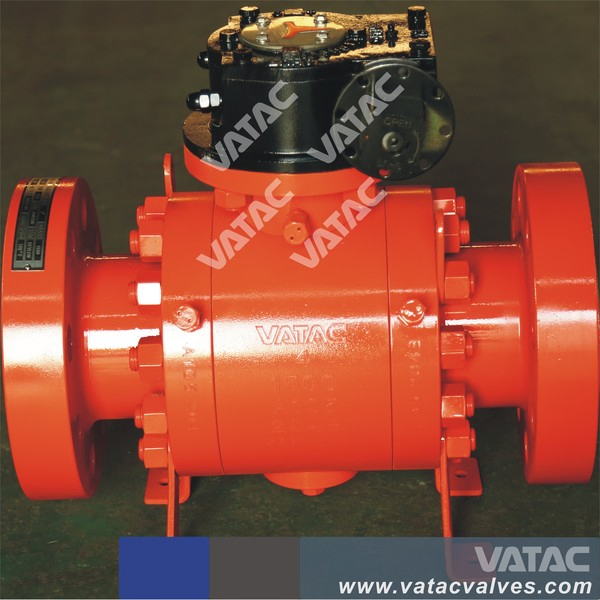

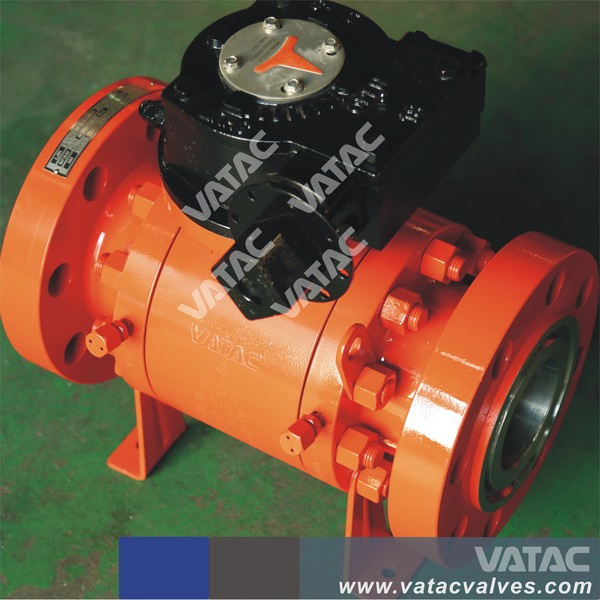

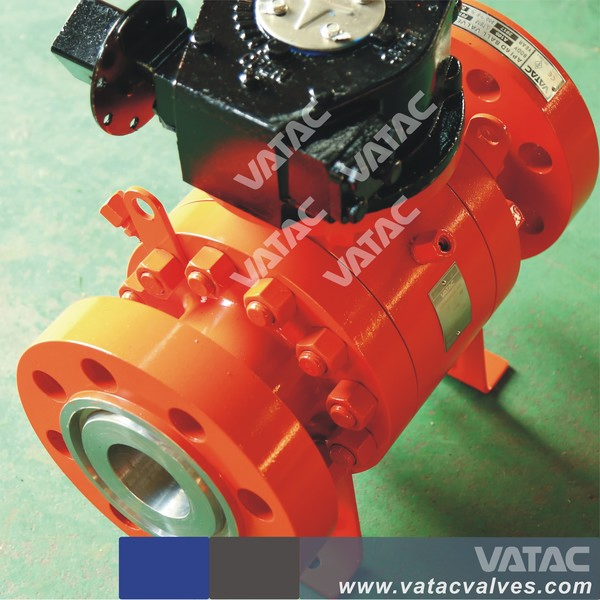

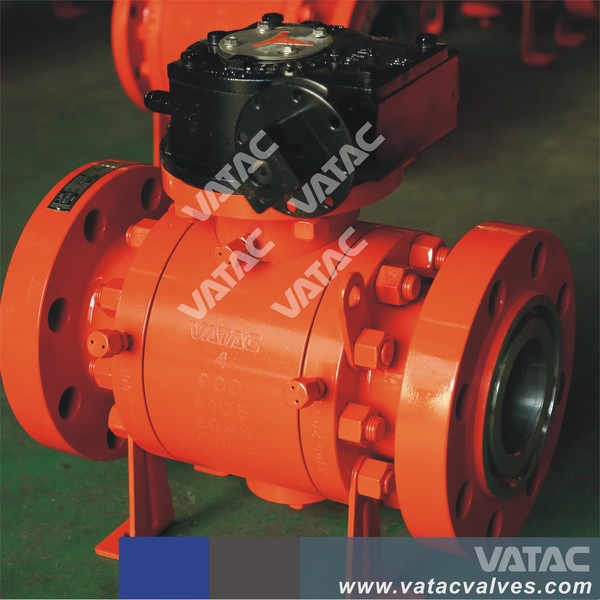

RF Forged Steel Electric Trunnion Mounted Ball Valve

1 / 5

RF Forged Steel Electric Trunnion Mounted Ball Valve

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Connection Form

Flange

Driving Mode

Electric

Nominal Pressure

ANSI CLASS 150-900

Channel

Straight Through Type

Structure

Fixed Ball Valve

Type

Fixed Ball Valve

Function

Shutoff

Temperature

Normal Temperature

Application

Industrial, Water, Household

Characteristic

Trunnion Mounted Ball Valve

Design Standard

API 6D, ASME B16.34 & BS5351

Face to Face

ASME B16.10

Ends Connection

RF, NPT, BW, SW

Inspect & Test

API 598 / API 6D

Certificate

DNV CE 0575, ISO 9001:2008

Production Capacity

8000 Tons Per Year

★

Product Features

Our Ball Valves are designed with the following premium features to ensure high performance in diverse environments:

Manufactured in Forged and Casting Materials: WCB, A105, SS304, SS316 & Duplex, etc.
Available in various Trim and Seat (Resilient and Metal) materials to suit different service conditions.
Pressure Rating availability: CL150, CL300, CL600, CL900, CL1500, CL2500.
Both Floating and Trunnion Ball designs are available.
Flanged (RB, F.P) ends comply with ANSI B16.5 standards.
Size ranges from 1/2" up to 18".
Optional lockable handle lever and blow-out proof stem for enhanced safety.
Fire Safe design compliant with API 6FA.
Valve marking according to MSS-SP-25.

Main Parts & Materials

Part Names	Material Options
Body/Bonnet	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304L	CF3M/F316L
Ball	A105+ENP	SS304	F22	SS304	SS316	SS304L	SS316L
Stem	A105	F304	F6a	F304	F316	F304L	F316L
Seat Ring	PTFE / RPTFE / NYLON / DEVLON / PEEK or METAL
Packing	Graphite / PTFE
Suitable Temp.	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C

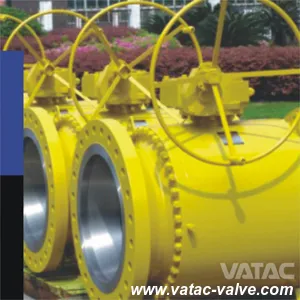

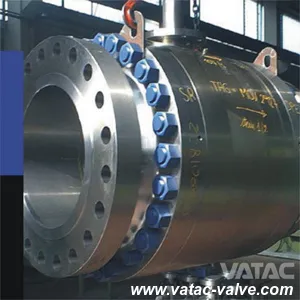

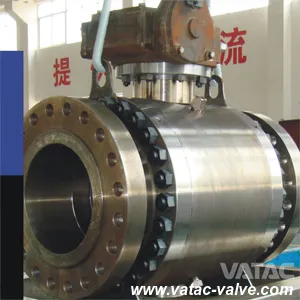

Product Gallery

Frequently Asked Questions

Q1: What are the primary design standards for these ball valves? A1: These valves are designed and manufactured according to API 6D, ASME B16.34, and BS5351 standards.

Q2: What pressure ratings are available? A2: We offer a wide range of pressure ratings including ANSI CLASS 150, 300, 600, and up to 900.

Q3: Can these valves handle extreme temperatures? A3: Yes, depending on the material selection (such as Stainless Steel CF3M/F316L), the valves can operate in temperatures ranging from -196°C to 427°C.

Q4: Are the ball valves fire-safe? A4: Yes, the ball valves feature a fire-safe design compliant with API 6FA standards.

Q5: What types of ends connections are supported? A5: The valves support multiple connection types including RF (Raised Face), NPT, BW (Butt Weld), and SW (Socket Weld).

Q6: Is a blow-out proof stem standard? A6: Yes, all our ball valves come with a blow-out proof stem as a standard safety feature.
