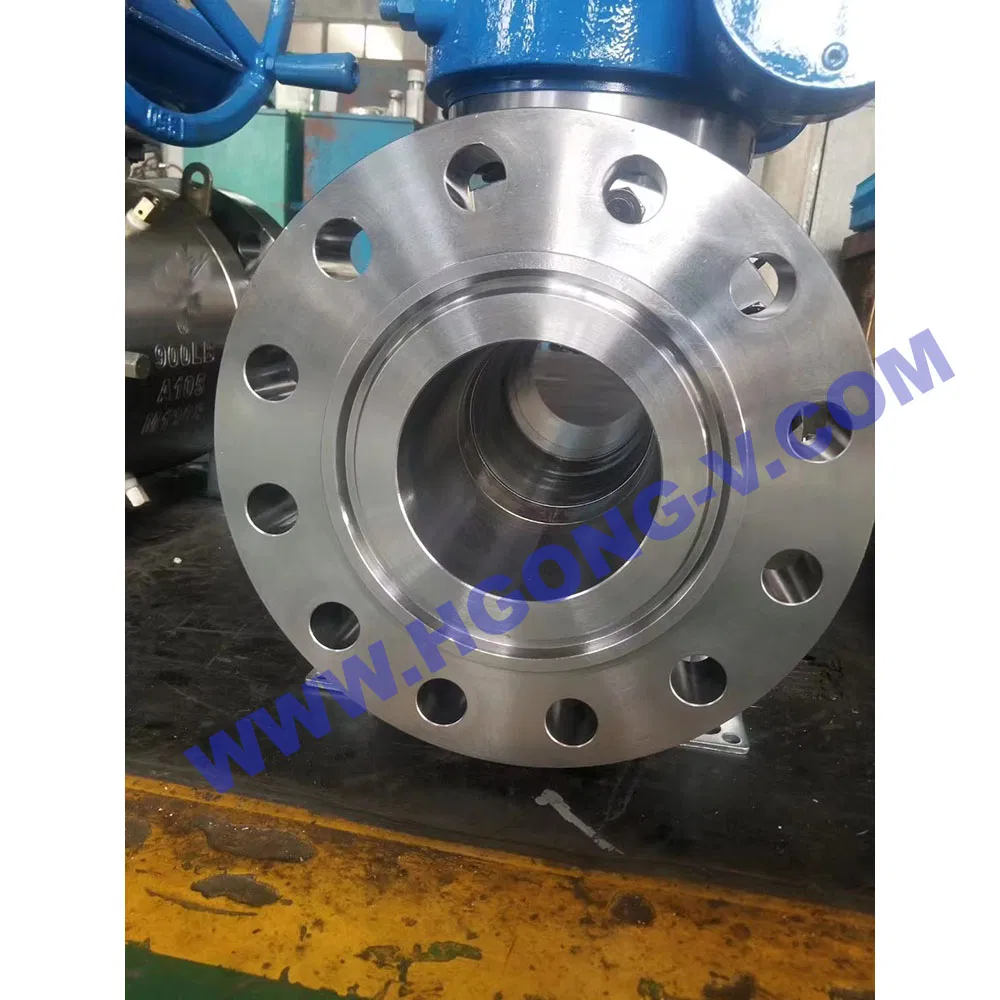

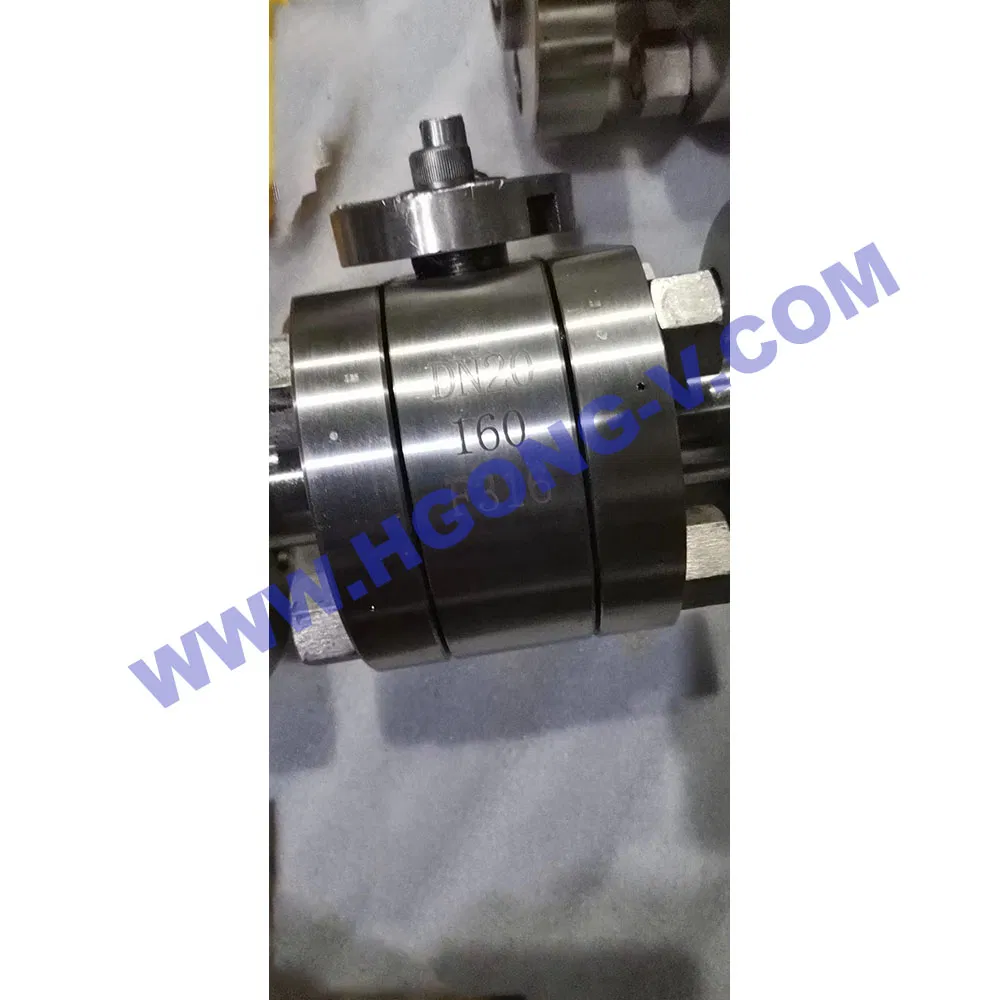

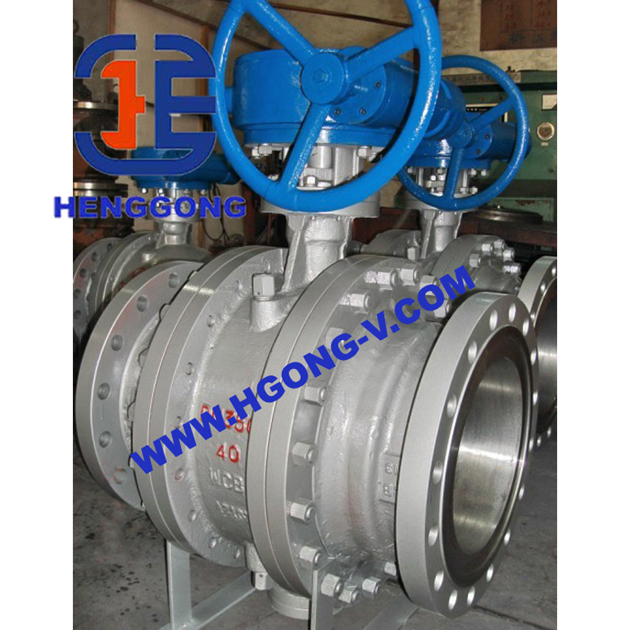

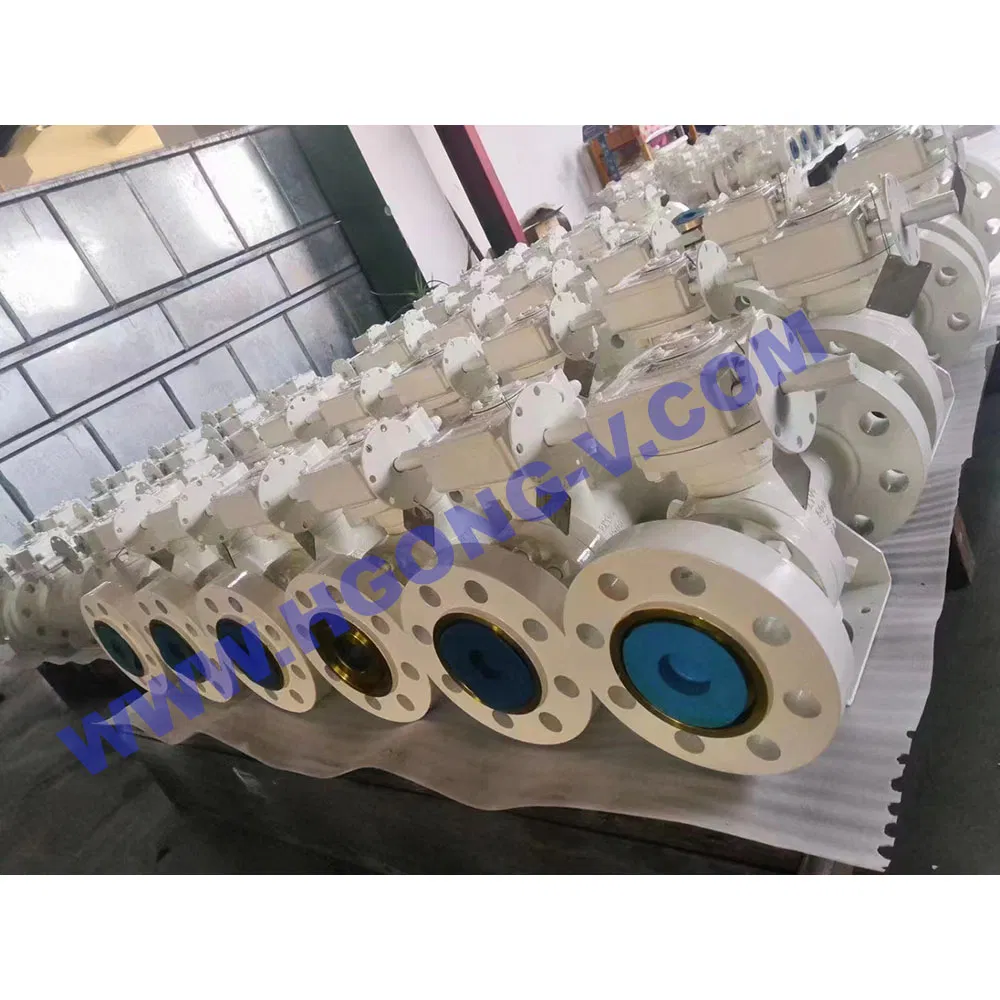

ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
1 / 5
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve
ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve

ANSI/DIN/JIS A105 Wcb 304 F91 Worm Gear Pneumatic Flange Forged Trunnion Mounted Gas Ball Valve

Customization: Available
Media: Water
Material: Forged Steel
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Q347F
Connection Form
Flange
Driving Mode
Worm Gear
Nominal Pressure
ANSI CLASS 150-900
Structure
Fixed Ball Valve
Standard
BS/DIN
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage
Pressure/PN
150lb to 2500lb
Applicable Medium
Water, Oil, Gas
Certificate
ISO 9001: 2008, CE
Specification
DN50-DN1000
⚙️ Product Description
  • Anti-Sulphuric standard: ANCE MR 0175
  • Dimension standard: GB/T 79-94, ANSI B16.5
  • Face to Face: GB 12221-2005, ANSI B16.10
  • Test and Check: GB/T 13927, JB/T9092, ANSI 598
  • Nominal Pressure: PN1.6-16.0MPa, Class 150-1500Lb
  • Material: Body: A105, A350 LF2, A182 F316; Sealing: RTFE, PPL
  • Design Features: Three-piece body, fixed Ball, Blowout Proof Stem, Fire safe and Anti-static
Design and Manufacture ANSI B16.34, ANSI/ASME 608, ANSI/ASME 6D, BS5351
Face to Face Dimension ANSI B16.10, ANSI/ASME 6D
Flanged Dimension ANSI B16.5
Butt welded ANSI B16.25
Fire-safe ANSI/ASME 607, ANSI/ASME 6FA
📸 Detailed Photos

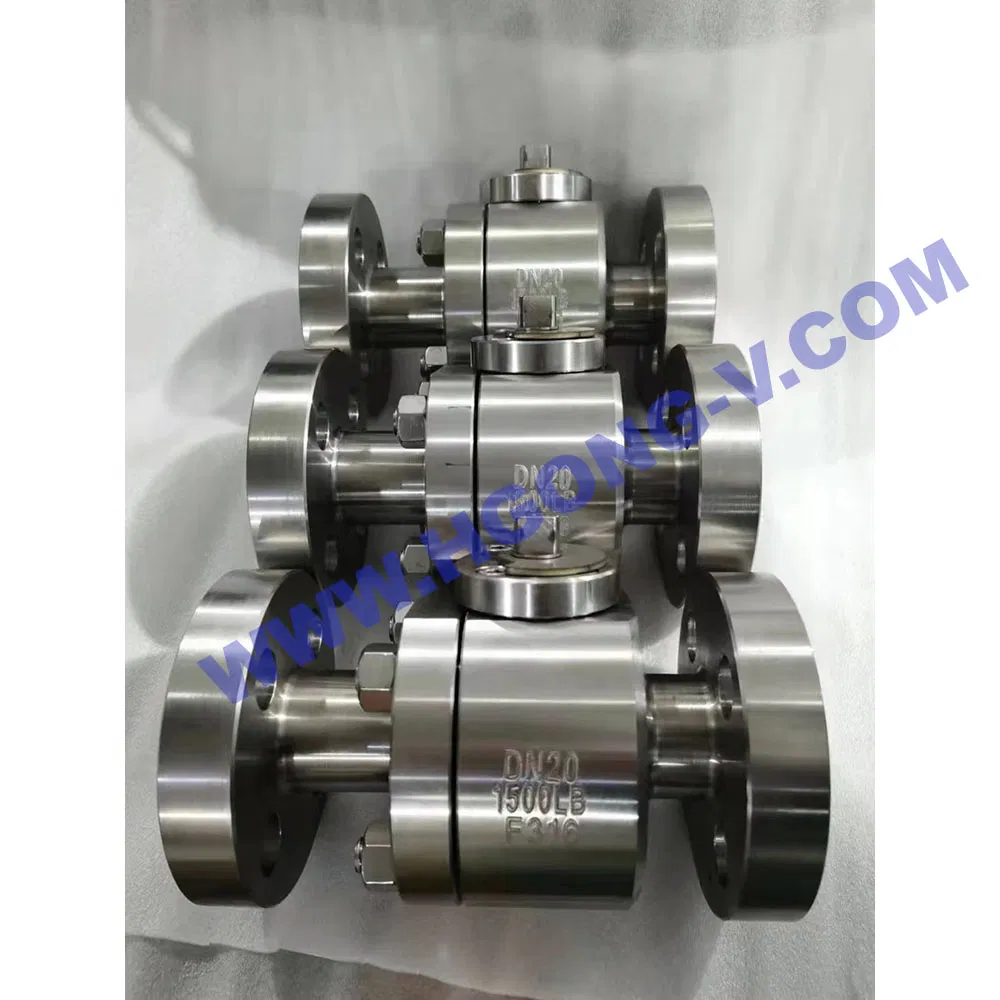

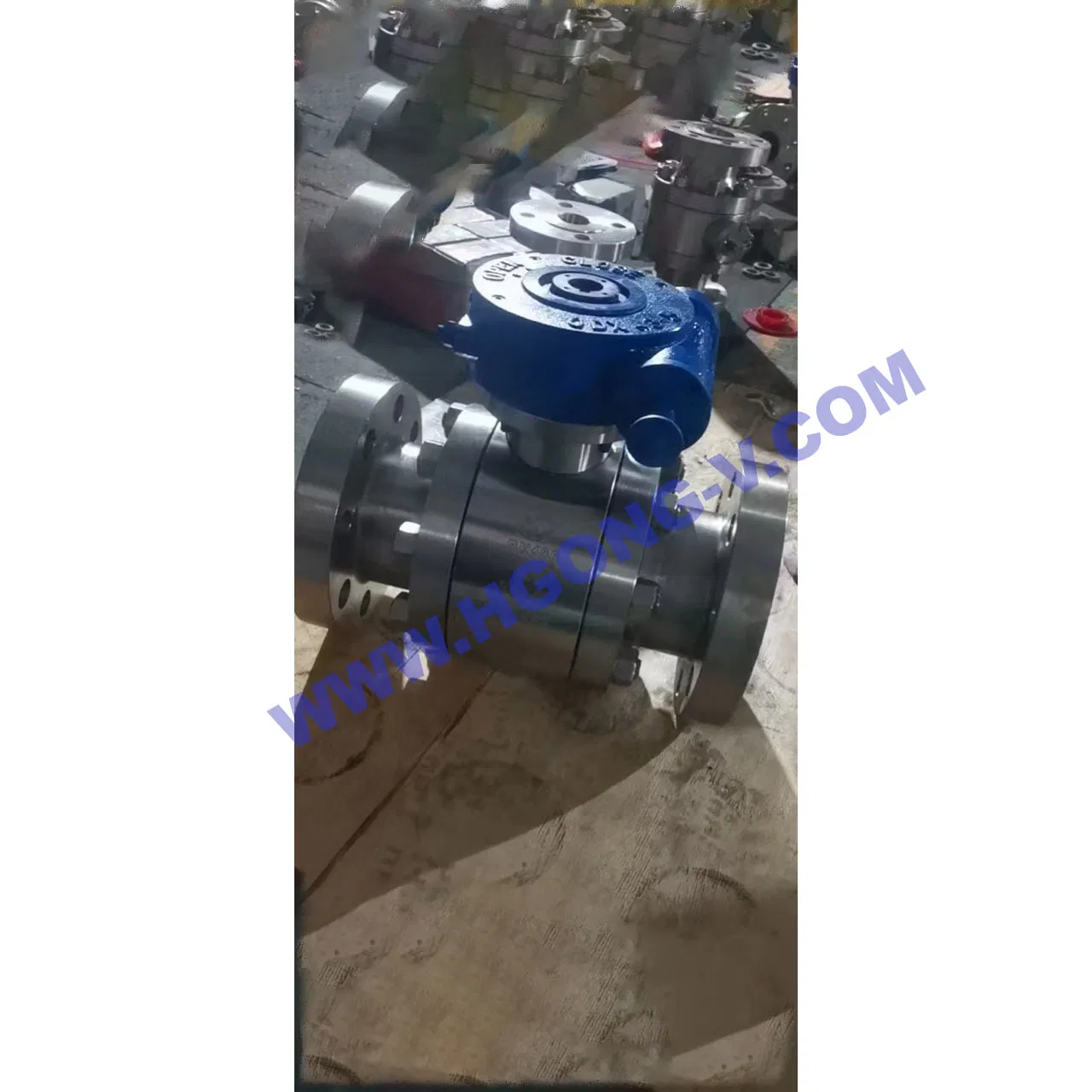

Trunnion Mounted Gas Ball Valve

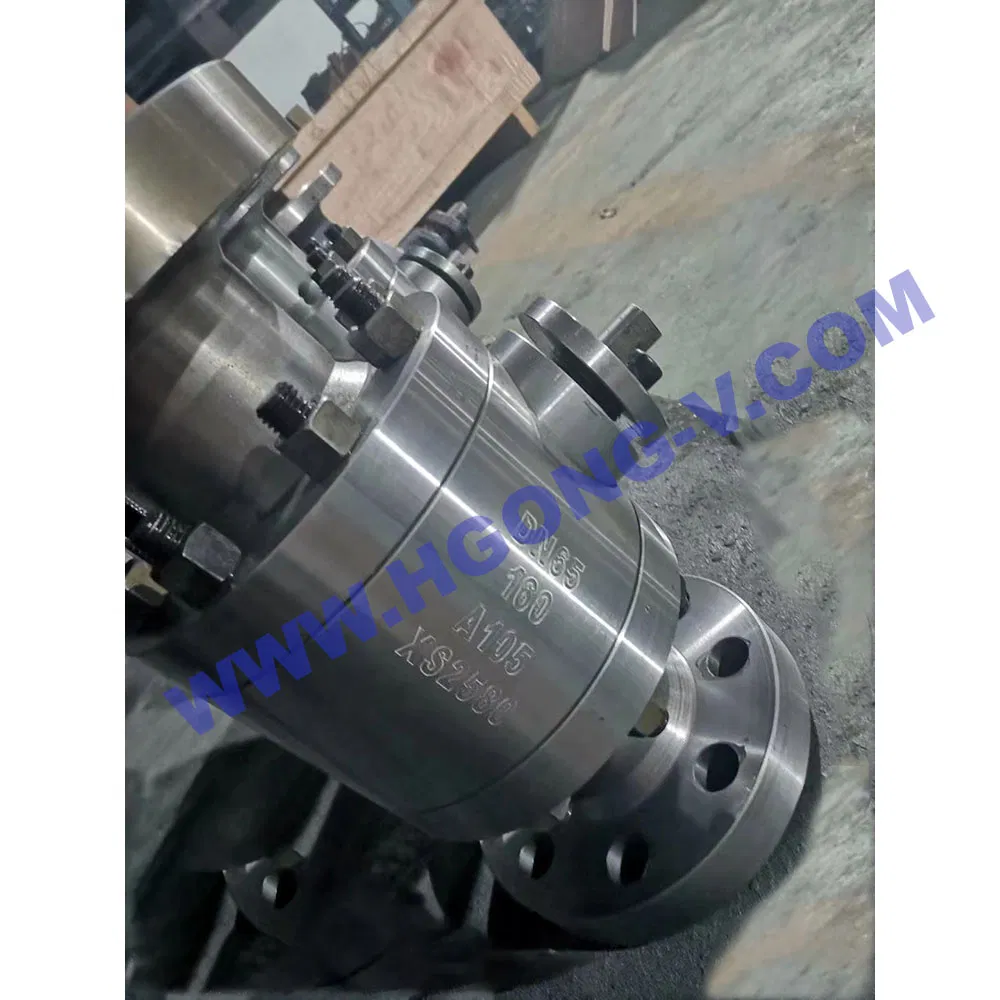

Worm Gear Ball Valve

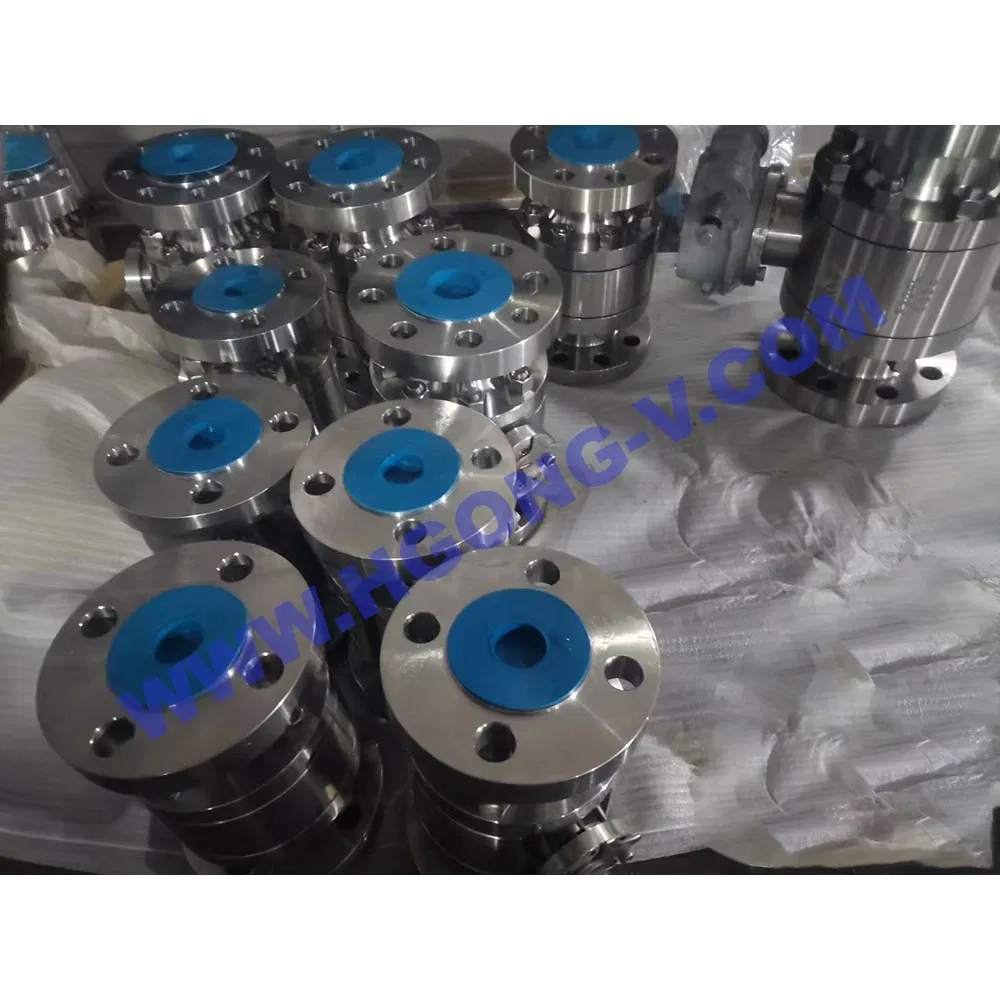

Pneumatic Flange Ball Valve
🔥 Hot Sales Products

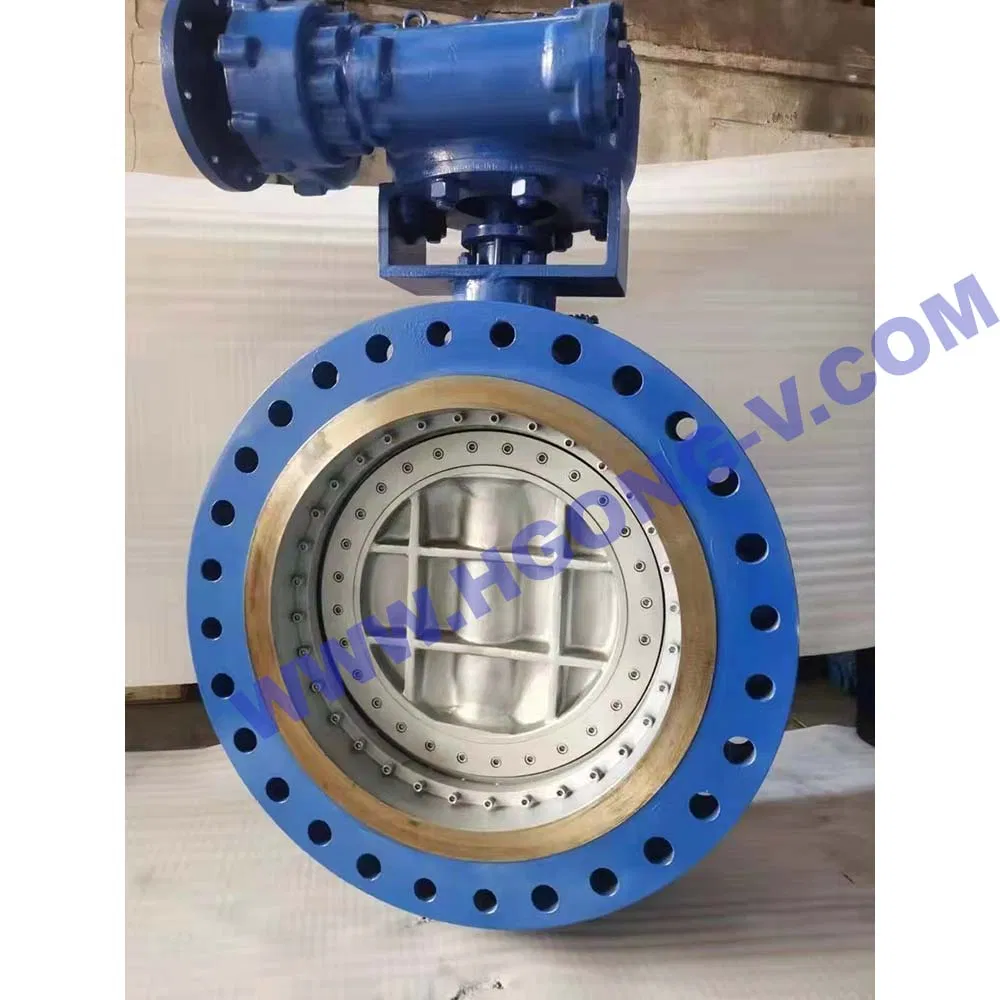

Butterfly Valve

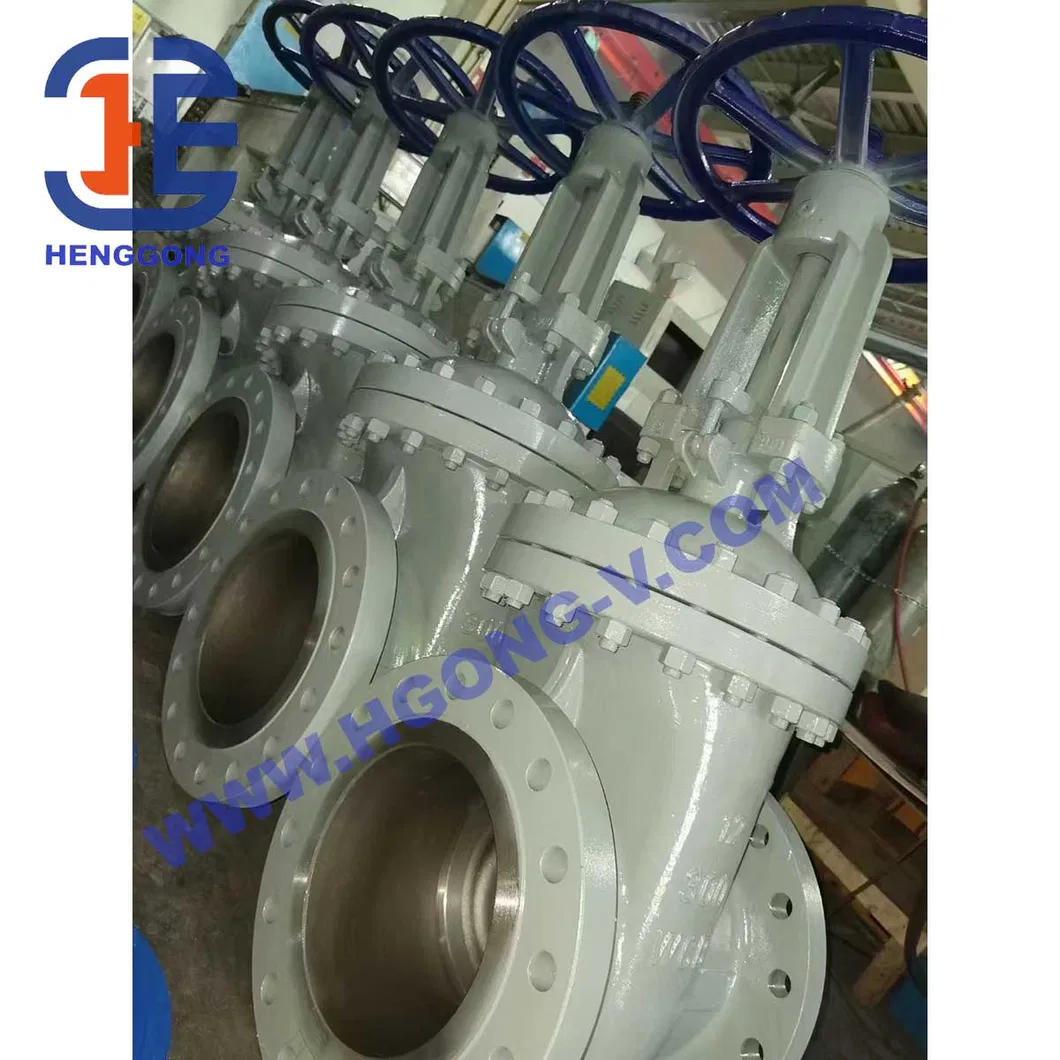

Gate Valve
Swing Check Valve
🏆 Our Advantages
Quality Control

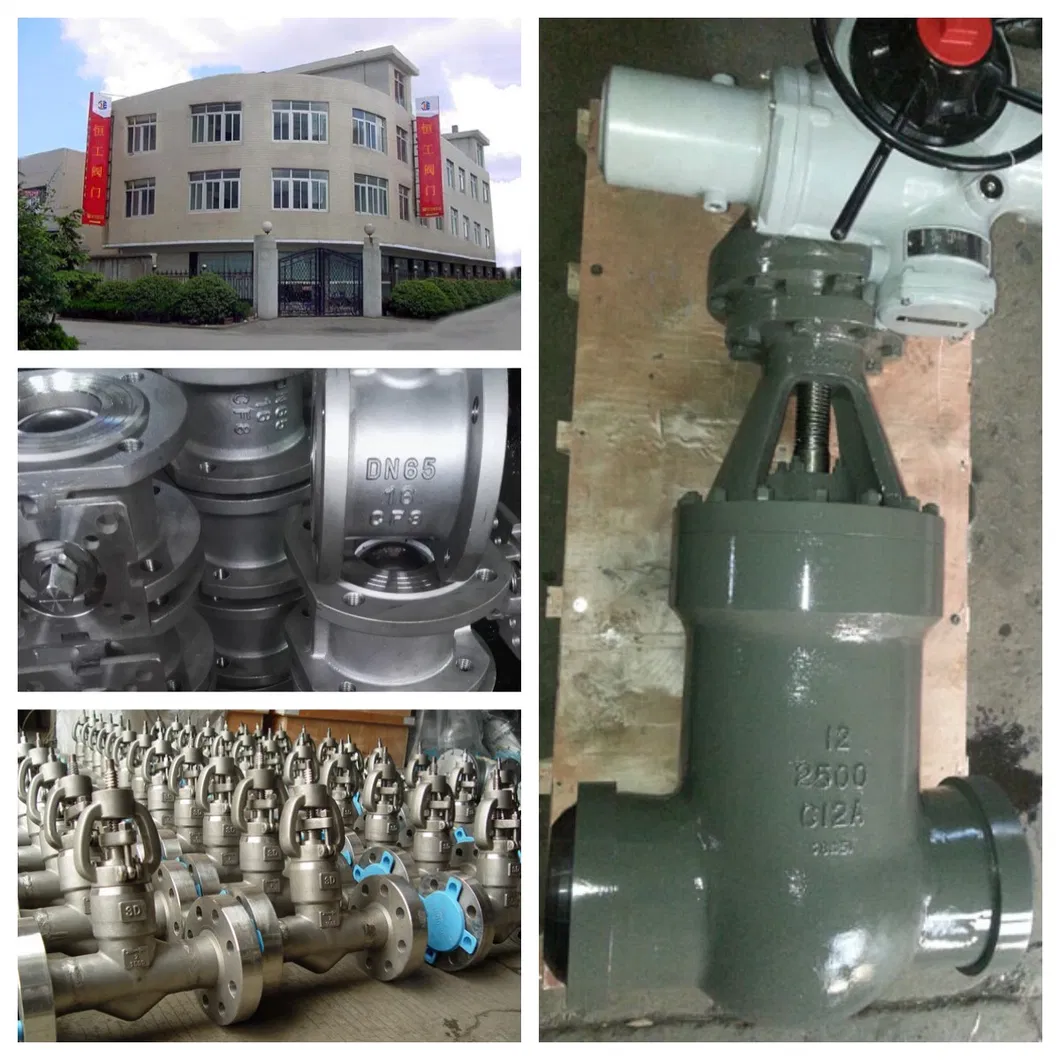

Production Advantage

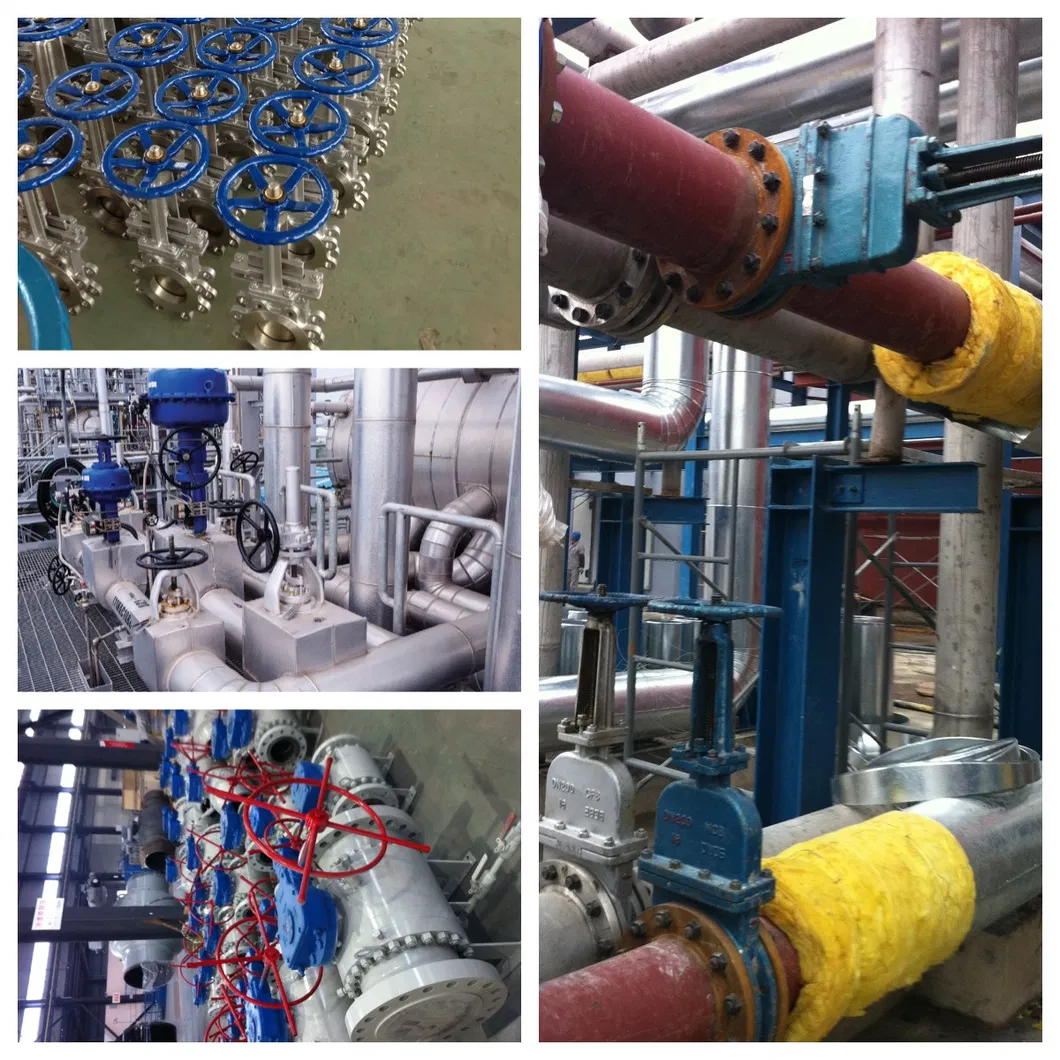

Manufacturing Advantage
Factory Overview
Global Standards
❓ Frequently Asked Questions
Are you a manufacturer or a distributor?
We are a valve manufacturer with 25 years of experience in development, design, production, and sales, recognized among the top valve manufacturers.
Is it a finished product or can be customized?
We customize professional valves according to your specific technical requirements, drawings, and parameters.
What is your price term?
Our standard price terms are Ex-factory and FOB.
What is the minimum order quantity?
For small diameter valves, the MOQ is 10pcs/model. For large diameter valves, the MOQ is 1pc/model.
What is the term of payment?
We accept T/T, L/C, and orders placed via secure trade platforms.
How long is the delivery time?
Standard delivery typically takes around 15 days depending on the order specification and quantity.
