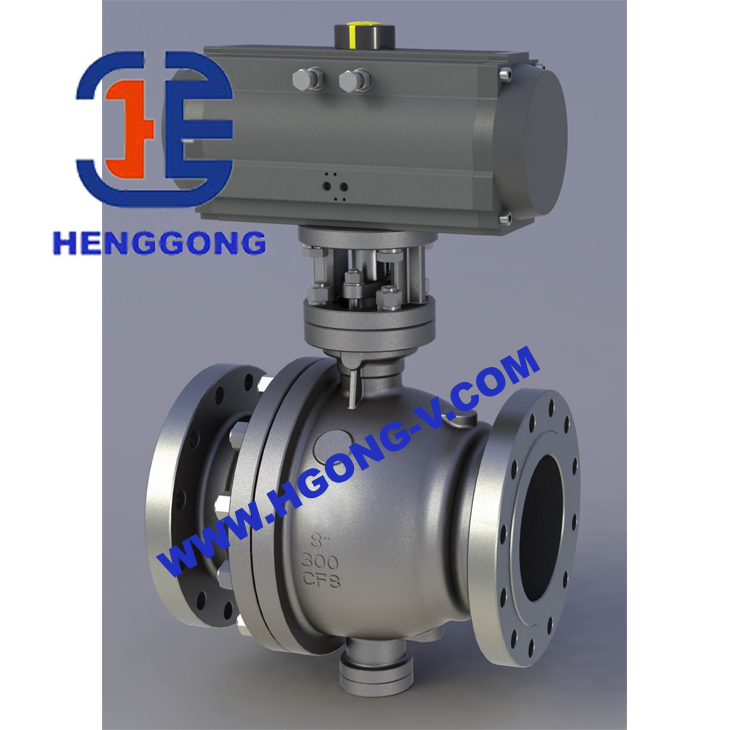

RPZ Valve
RPZ Valve
| Model NO. | Q647F |
| Connection Form | Flange |
| Driving Mode | Pneumatic |
| Nominal Pressure | ANSI CLASS 150-900 |
| Channel | Straight Through Type |
| Structure | Fixed Ball Valve |
| Standard | DIN/BS/ANSI/En/GOST |
| Applicable Medium | Water, Oil, Gas |
| Pressure/Pn | 150lb/300lb/600lb/900lb/1500lb/2500lb |
| Trademark | OEM |
| Transport Package | Plywood Case |
Technical Standards:
Anti-Sulphuric standard: ANCE MR 0175
Dimension standard: GB/T 79-94, ANSI B16. 5
Face to Face: GB 12221-2005 ANSI B16. 10
Test and check: GB/T 13927 JB/T9092 ANSI 598
Connection End: GB12224-2005 ANSI B16. 25
Specifications:
1. Size: DN50-400mm And 2'-16' Inch
2. Nominal Pressure: PN1. 6-16. 0MPa, Class 150-1500Lb
3. Applicable temperature: -193~300 ºC
4. Material Body: A105, A350 LF2, A182 F316; Sealing: RTFE, PPL
Features:

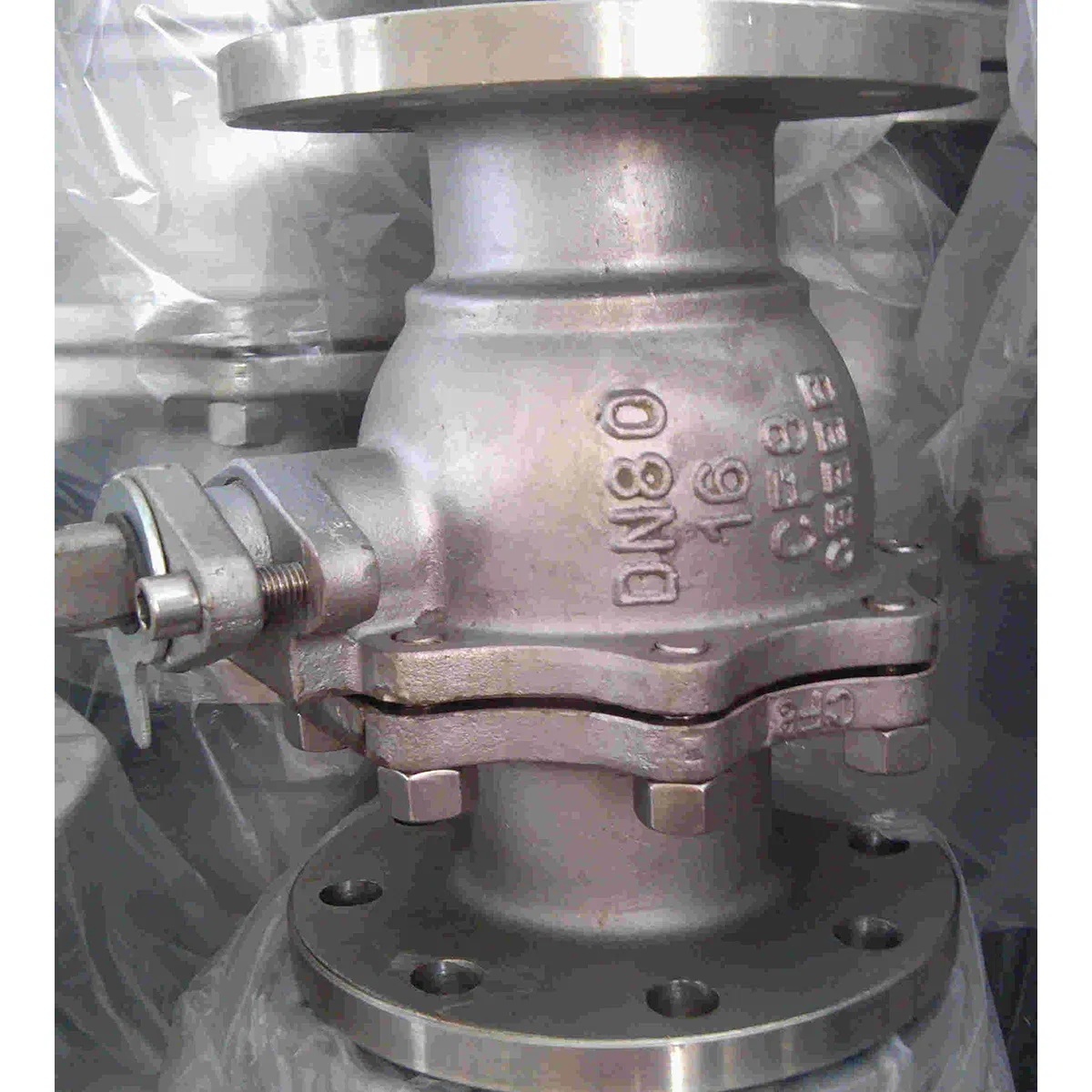

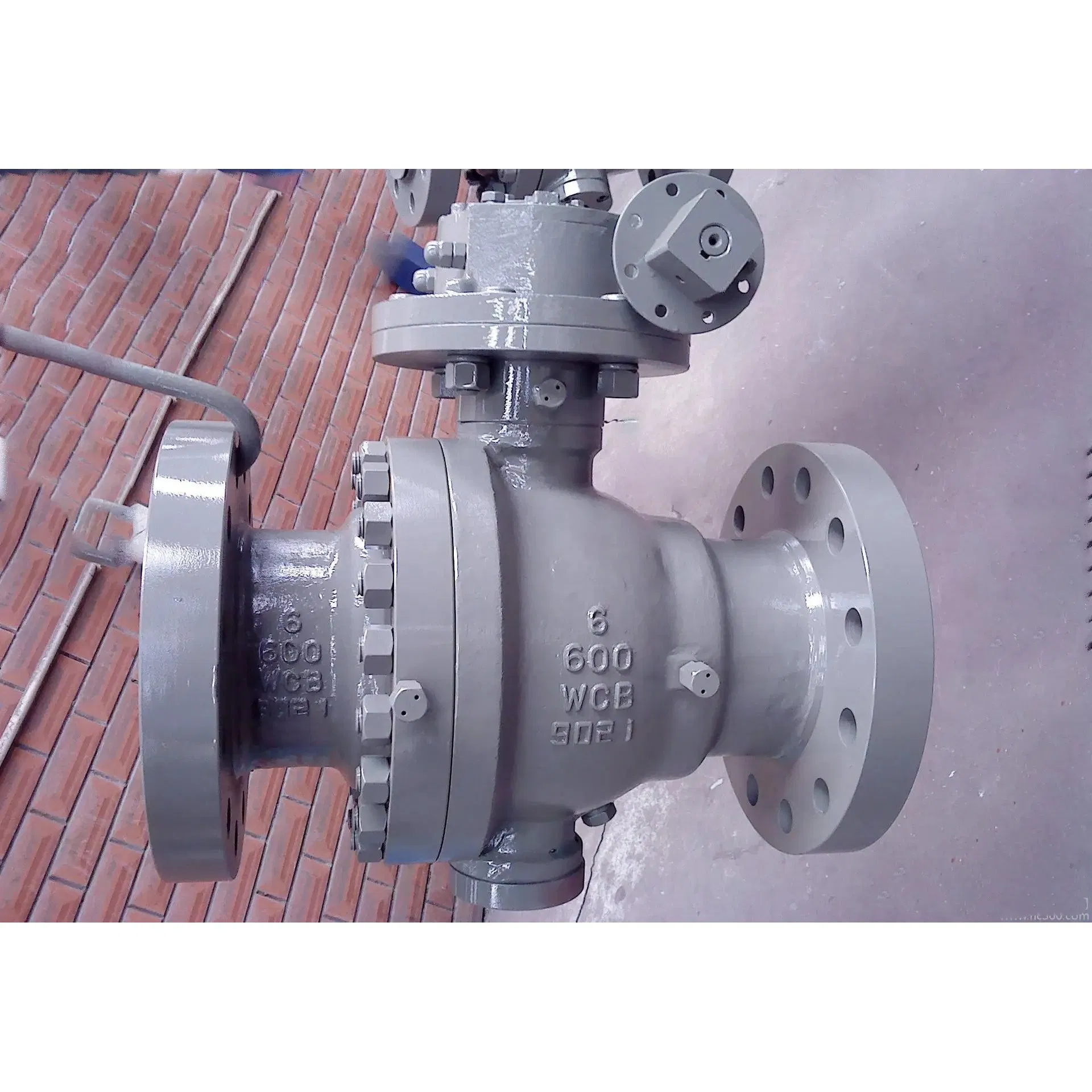

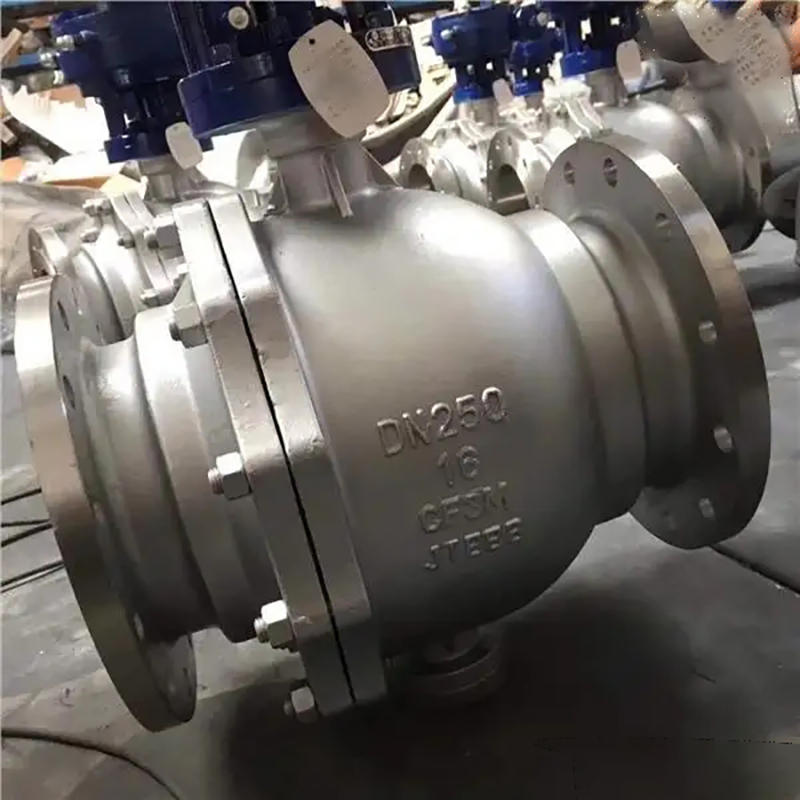

Three Pieces Type Forged Steel Ball Valves, Bolted cover or welded cover, three-piece Body, fixed Ball.
Full or Reduced bore, Blowout Proof Stem. Fire safe and Anti-static design. Dual seat with injection and drain & outlet.
| Requirement | Standard Compliance |
| Design and Manufacture | ANSI B16.34, ASTM/ASME/ANSI 608, 6D, BS5351 |
| Face to Face Dimension | ANSI B16.10, ASTM/ASME/ANSI 6D |
| Flanged Dimension | ANSI B16.5 |
| Butt welded | ANSI B16.25 |
| Fire-safe | ASTM/ASME/ANSI 607, 6FA |
| Package Size | 80.00cm * 80.00cm * 80.00cm |
| Gross Weight | 35.000kg |
