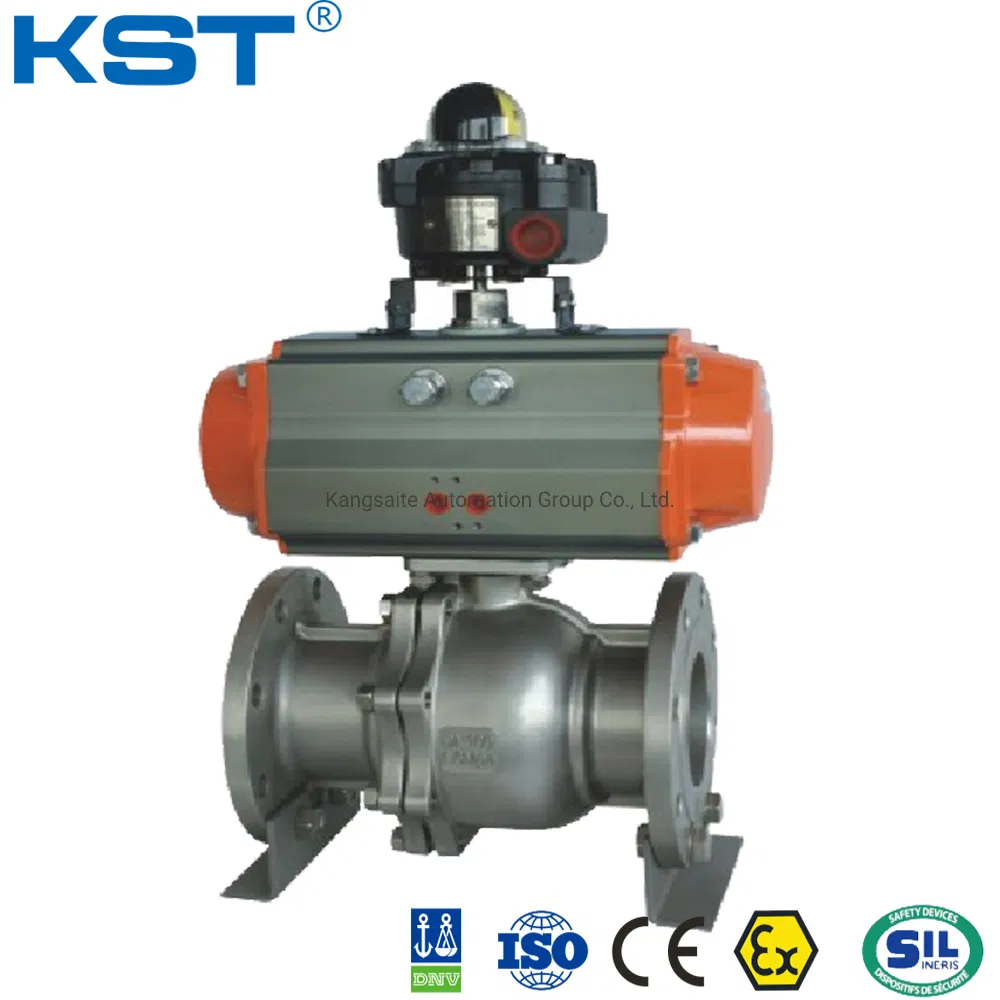

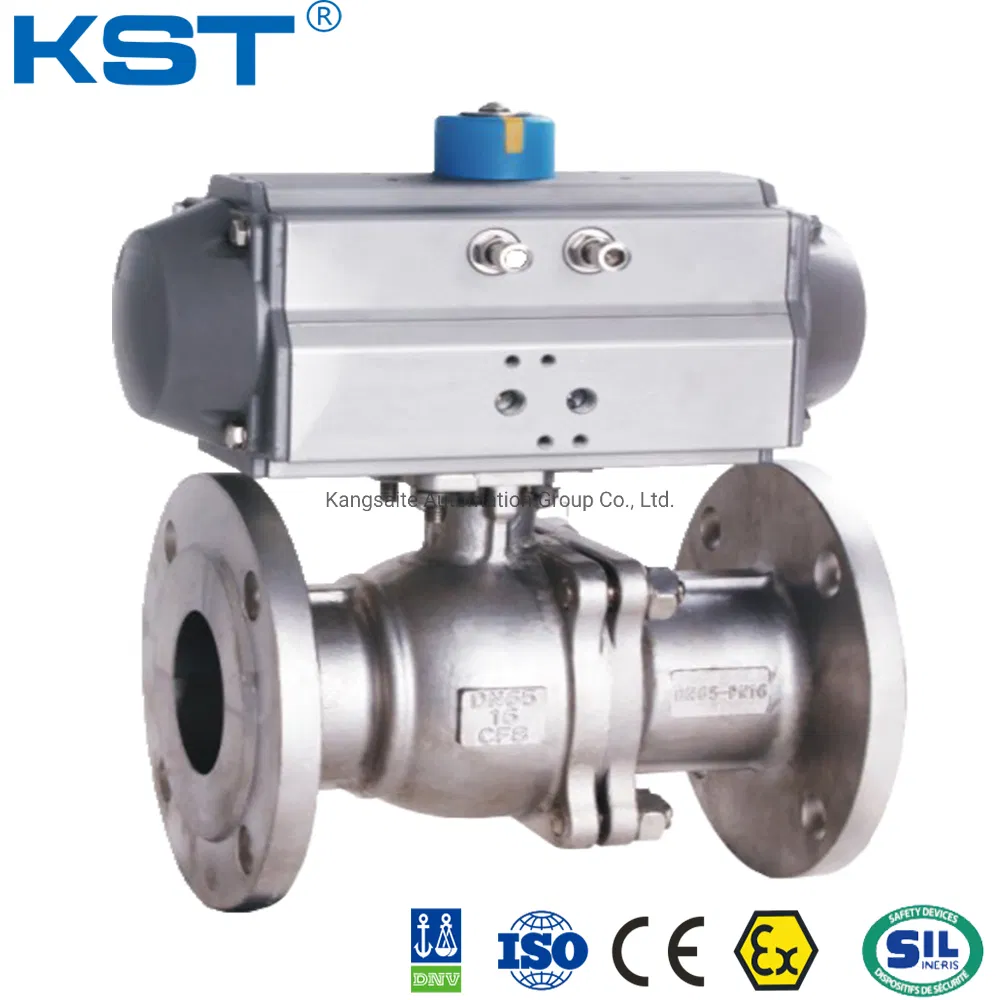

CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
1 / 5
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv
CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv

CF8/CF8m/CF3m Stainless Steel Floating Ball/Trunnion Mounted Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator 6D/CE/ISO9001/FDA/Dnv

Customization: Available
Material: Stainless Steel
Connection Form: Flange
Send Inquiry

Product Description

📋

Basic Information

Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
1/2"-8"
Diaphragm Material
EPDM, FPM, PTFE
Ball Assembly
Side Entry
Driving Way
Pneumatic, Normally Closed, Normally Open
Transport Package
Bubble Wrap, Carton Box, Plywood Case
Specification
CE, ISO9001, FDA, DNV
HS Code
8481804090
Production Capacity
10, 000PCS/Month
🛠️

Product Description

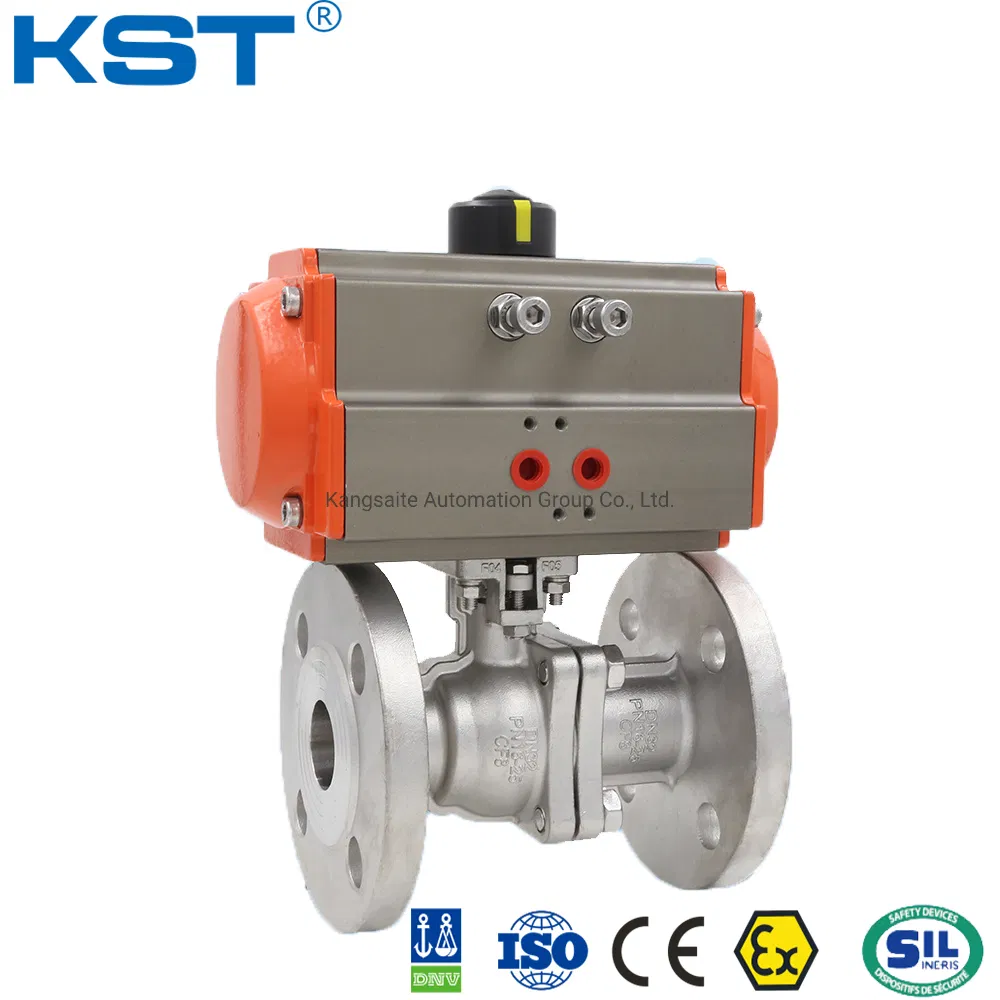

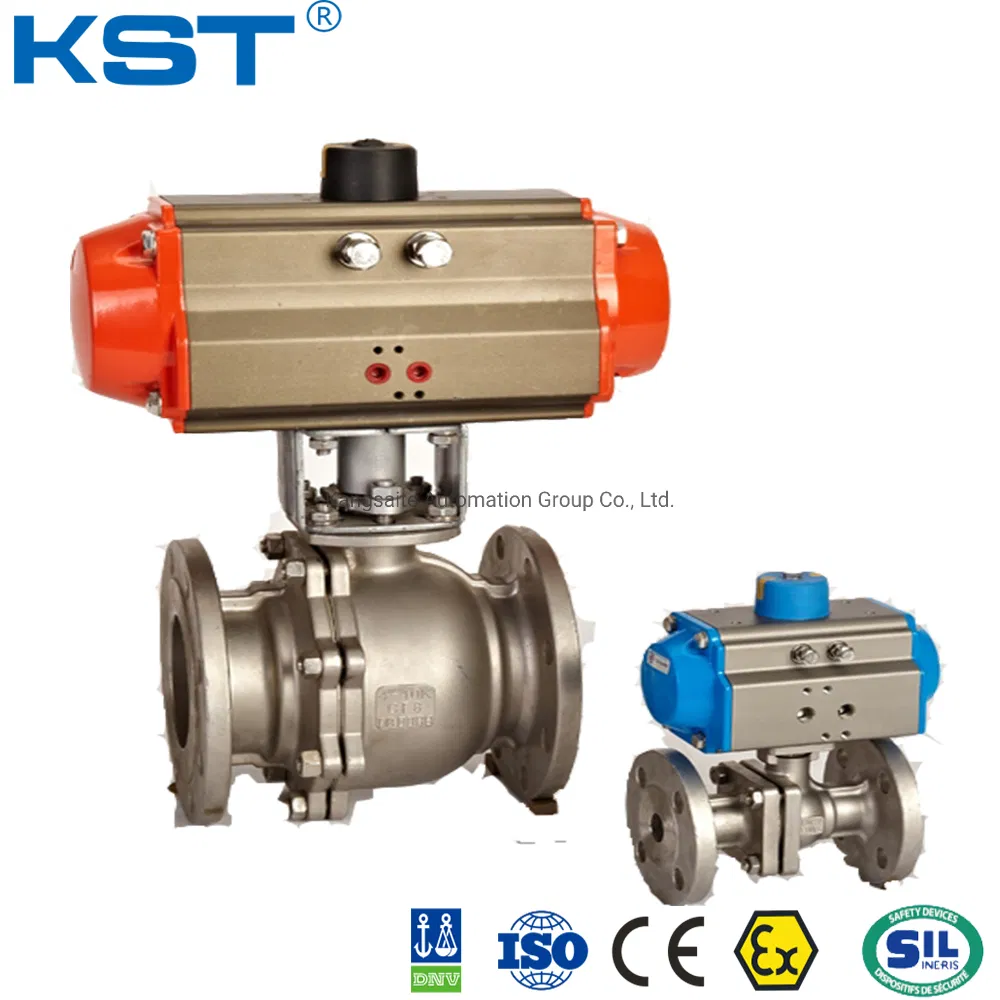

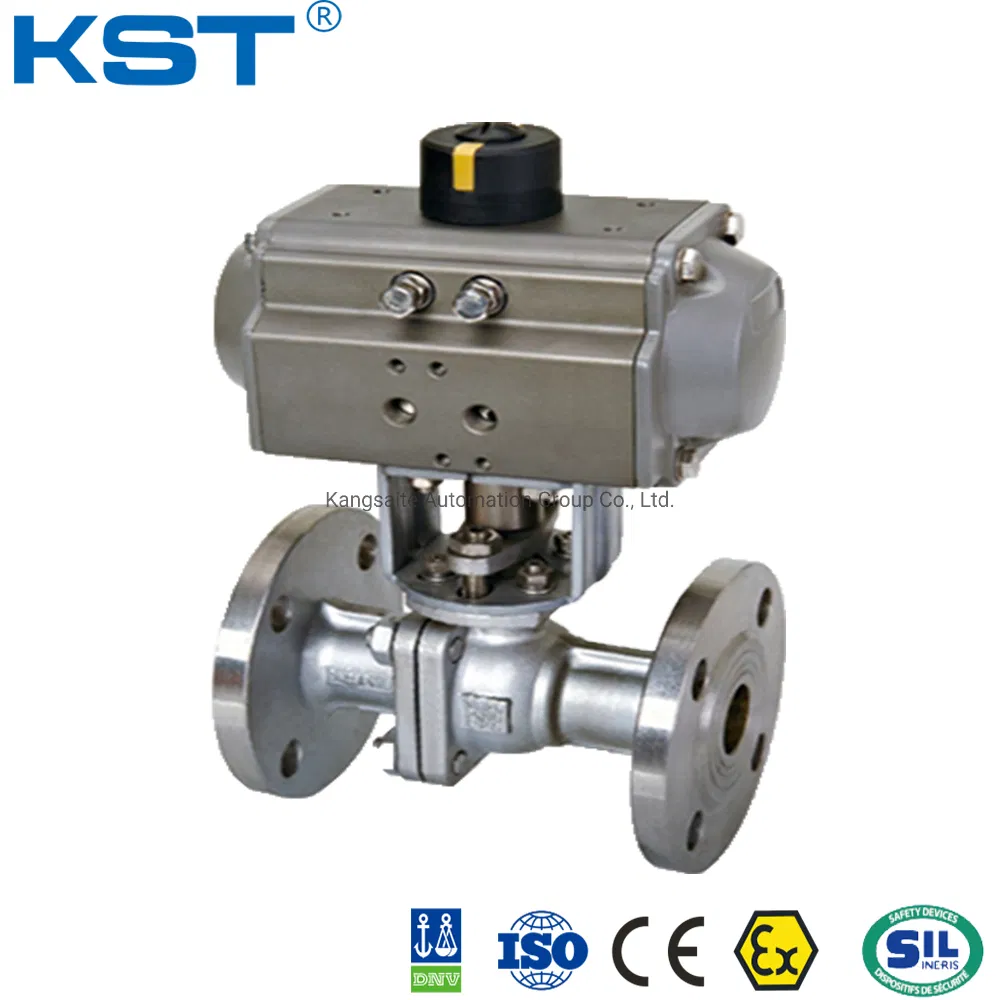

Stainless Steel Flanged Ball Valve with ISO 5211/DIN 3337 Pneumatic Actuator

Main Features:

✔ 1. Flanged Type Ball Valve
✔ 2. Electro and Mechanical Polishing
✔ 3. Sealing Material: PTFE, NBR, EPDM, FPM
✔ 4. Manufacture Standard: GB, DIN, ISO, SMS
✔ 5. Zero Leakage

Technical Specifications:

🔹 1). Nominal Diameter: DN15-300
🔹 2). Pressure Range: 1.6-6.4 Mpa
🔹 3). Medium Temp.: -10° C~+180° C
🔹 4). Ambient Temp.: -10° C~+60° C
🔹 5). Valve Body Material: SS304, SS316, WCB
🔹 6). Sealing Material: PTFE
🔹 7). Actuator Cover: Aluminum Alloy
🔹 8). Operating Pressure: 3-8bar
🔹 9). Type: Double-acting, single-acting
🔹 10). Standard: ANSI, DIN, JIS
🔹 11). Connection: Flanged
🔹 12). Applicable medium: Water, gas, oil, acid, alkali, etc

Product Options:

✚ Pneumatic Actuator
✚ Solenoid Valve
✚ Limit Switch Box
✚ Positioner
✚ Air Source Treatment
Applicable Media: Water, Oil, Gas, Nitric Acid, Acetic Acid
Certification: CE/DNV/FDA/ISO9001-2008
Sample Testing: One Sample available for testing (Under $10), Freight Collect
Packing: Plastic Bag, Carton & Plywood Case / According to requirements.
Term of Delivery: FOB/CNF/CIF, Customers' Request
🖼️

Product Gallery

Pneumatic Actuator Ball Valve 1
Pneumatic Actuator Ball Valve 2
Pneumatic Actuator Ball Valve 3
Pneumatic Actuator Ball Valve 4
Pneumatic Actuator Ball Valve 5
Pneumatic Actuator Ball Valve 6

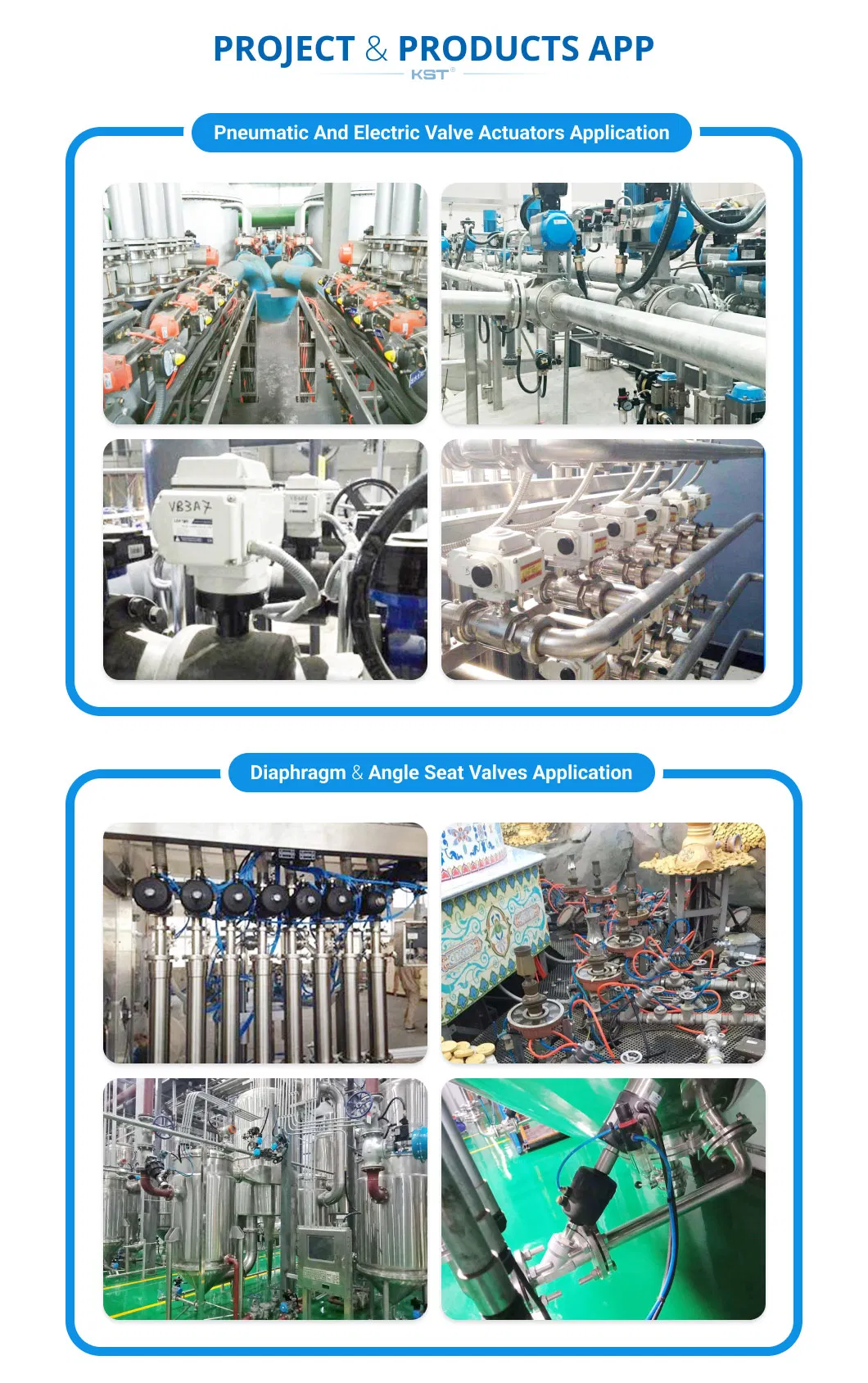

Pneumatic Actuator Ball Valve 7
Pneumatic Actuator Ball Valve 8
❓

Frequently Asked Questions

Q1: What are the primary applications for this flanged ball valve?
It is widely used in industrial water systems, general industrial usage, and household applications, particularly where automation via pneumatic control is required.
Q2: What materials are used for the valve body and sealing?
The valve body is available in SS304, SS316, and WCB. Sealing materials include PTFE, NBR, EPDM, and FPM to suit different chemical and temperature requirements.
Q3: What is the operating pressure range for the pneumatic actuator?
The pneumatic actuator operates within a pressure range of 3 to 8 bar, supporting both double-acting and single-acting types.
Q4: Does this valve comply with international manufacturing standards?
Yes, the valve is manufactured according to GB, DIN, ISO, and SMS standards, and it holds certifications such as CE, ISO9001, FDA, and DNV.
Q5: Can this valve handle corrosive media?
Yes, due to the stainless steel construction (SS304/SS316) and PTFE sealing, it is suitable for water, gas, oil, acids, and alkalis.
Q6: Is zero leakage guaranteed for this product?
Yes, one of the key features of this flanged ball valve design is its zero-leakage performance under specified operating conditions.
