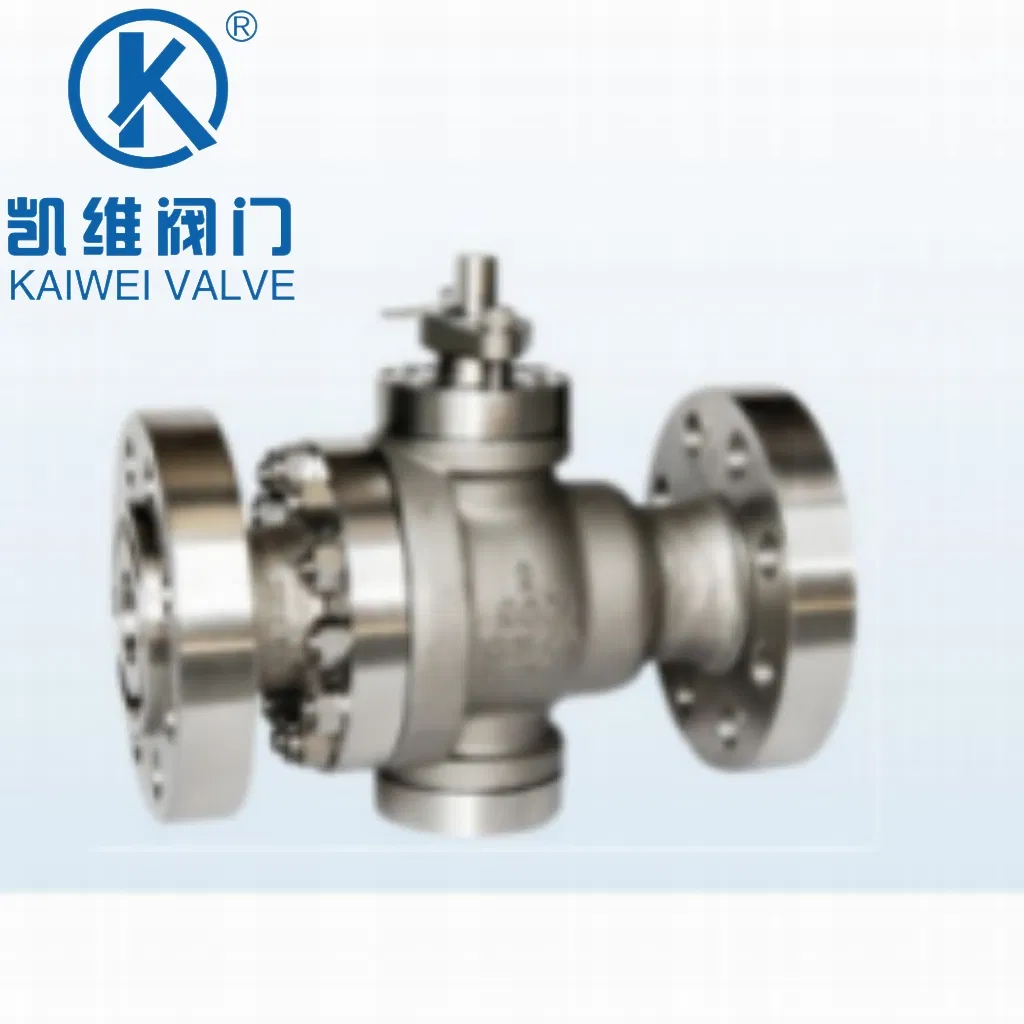

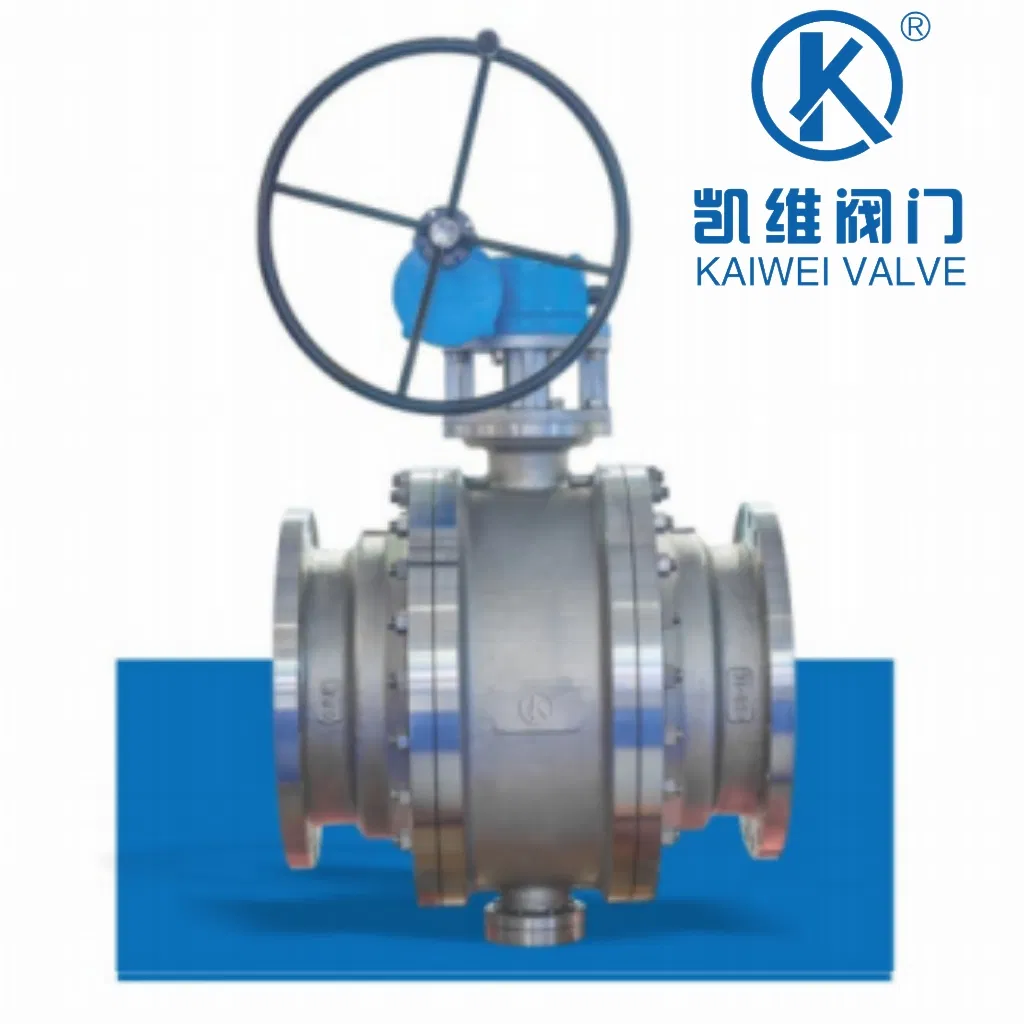

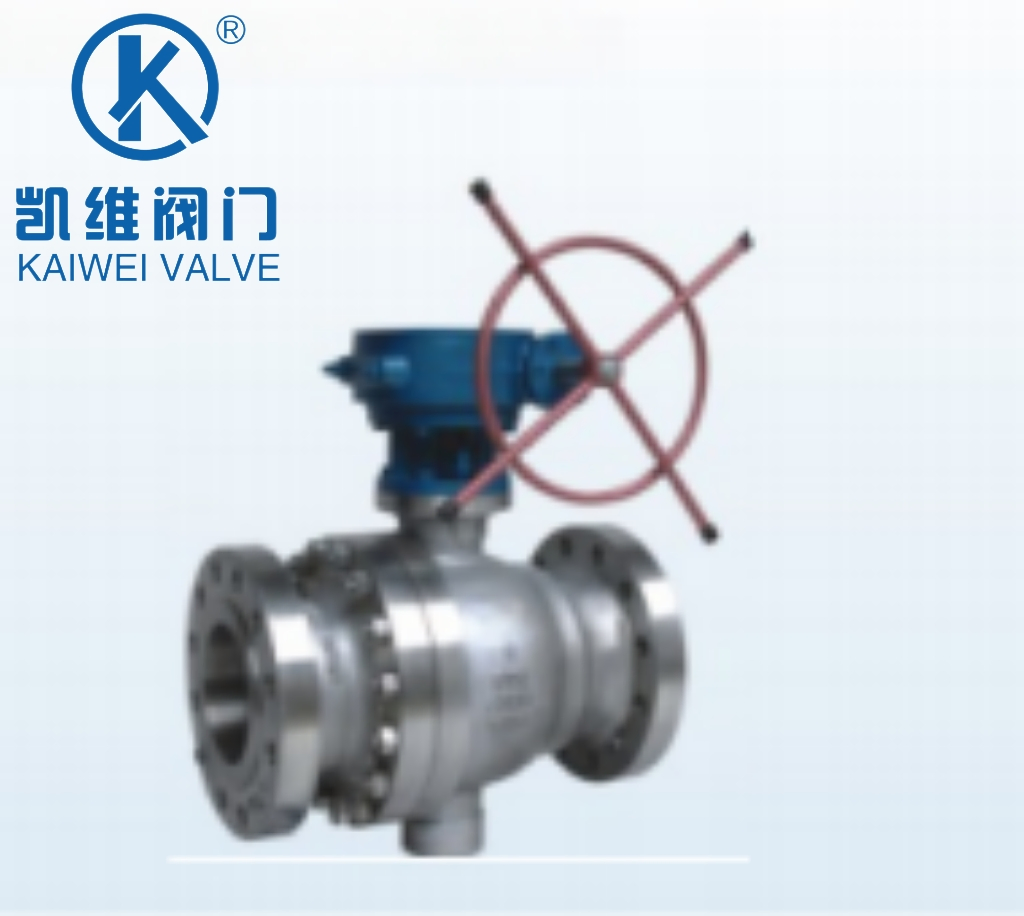

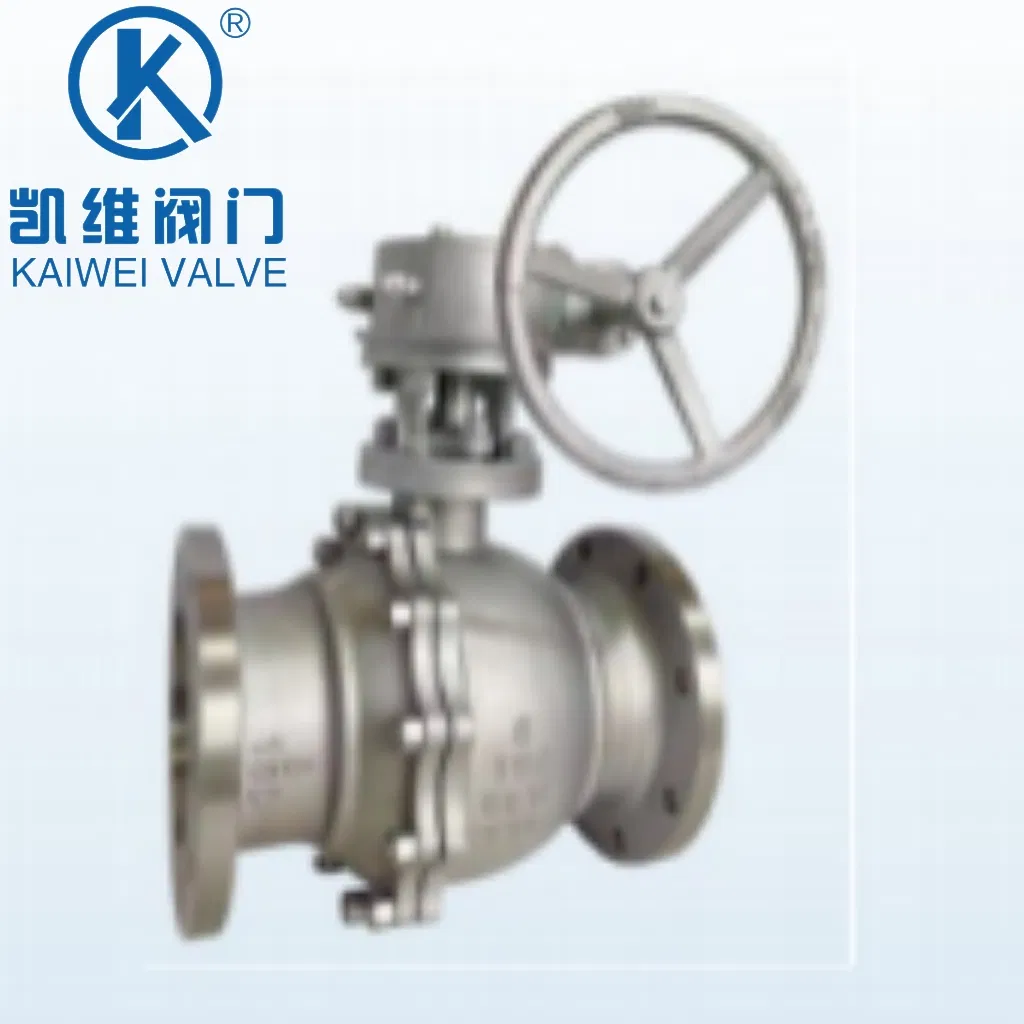

Casted Trunnion Mounted or Floating Stainless Steel Ball Valve

1 / 5

Casted Trunnion Mounted or Floating Stainless Steel Ball Valve

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Connection FormFlange

Nominal PressurePN1.0-32.0MPa

ChannelStraight Through Type

StructureFloating Ball Valve

TypeFloating Ball Valve

FunctionBlow-Down Valve

TemperatureNormal Temperature

StandardISO 17292

ApplicationIndustrial, Water, Household Usage

Warranty1 Year

CertificationISO 9000, CE

Applicable MediumWater, Oil, Gas

Fire SafeAPI607

Transport PackageWooden

OriginChina

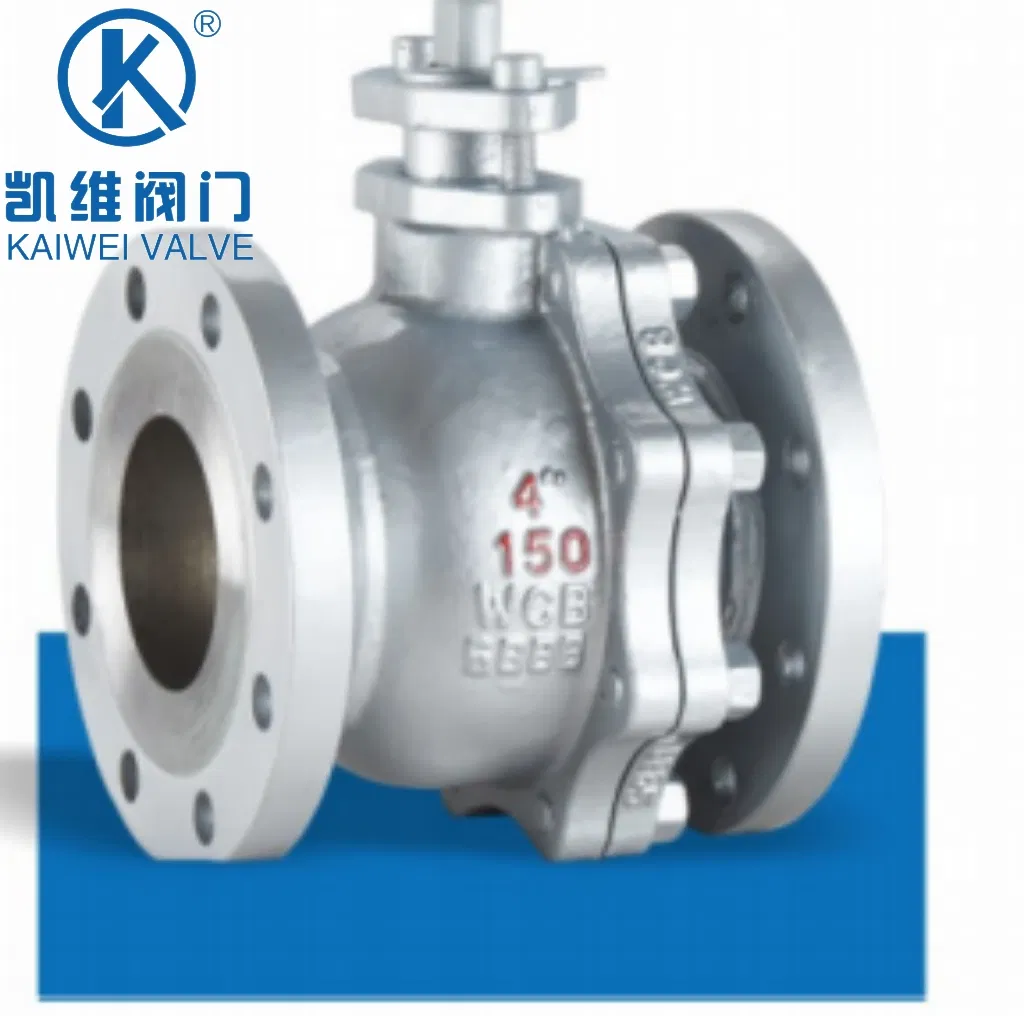

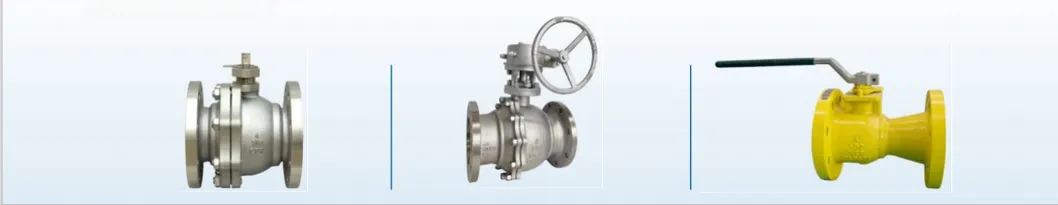

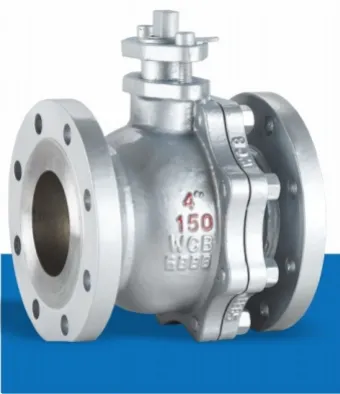

Casted Floating Ball Valve

Design Features

Straightforward design ensuring optimal sealing and minimal torque.
Reduced bore and full bore options to minimize flow resistance.
Low emission packing for enhanced environmental safety.
Fire-safe, anti-static, and anti-blowout stem designs.
Optional locking mechanism for secure operation.
Optional ISO 5211 top flange for actuation compatibility.

Technical Parameters

Body Material	ASTM A216WCB, ASTM A351 CF8M, ASTM A352LCB
Nominal Size	NPS 1/2'' to 10''
Pressure Range	Class 150 to 600 LB
Working Temperature	-46 to 200
Connection Method	RF, RTJ, BW, SW
Design Standards	API6D, API608, ASME B16.34, ISO17292
Inspection and Test	API589, API 6D
Connection Ends	ASME B16.5 (Flanged), ASME B16.25 (BW), ASME B16.11 (SW/Threaded)

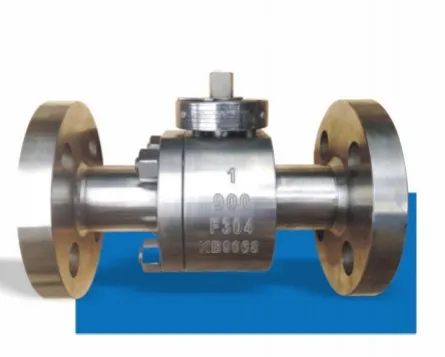

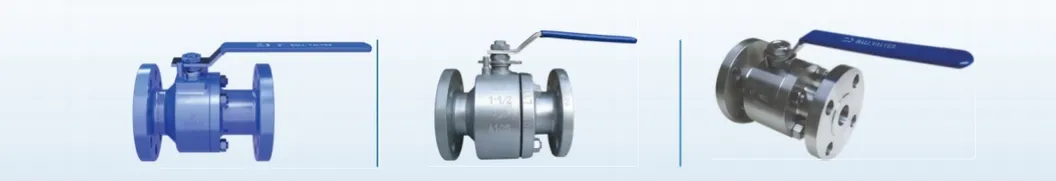

Forged Floating Ball Valve

Key Attributes

High-strength forged body construction.
Advanced sealing technology for high-pressure cycles.
Anti-static and blowout-proof stem for industrial safety.

Body Material	ASTM A105, ASTM A182 F316/F304, ASTM A350 LF2
Pressure Range	Class 150 to 2500LB
Working Temperature	-60 to 260

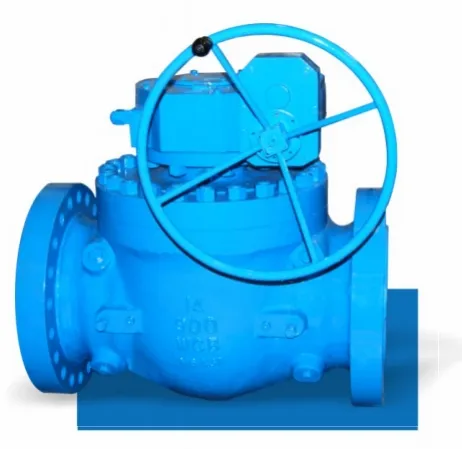

Top-Entry Ball Valve

Design Features

Simple structure for excellent tightness and low torque.
Emergency sealant injection for critical sealing enhancement.
Cavity pressure self-relief mechanism.
Optional extended bonnet for cryogenic or high-temp use.

Nominal Size	NPS 2'' to 36''
Pressure Range	Class 150 to 2500LB
Design Standards	API6D, API608, ASME B16.34

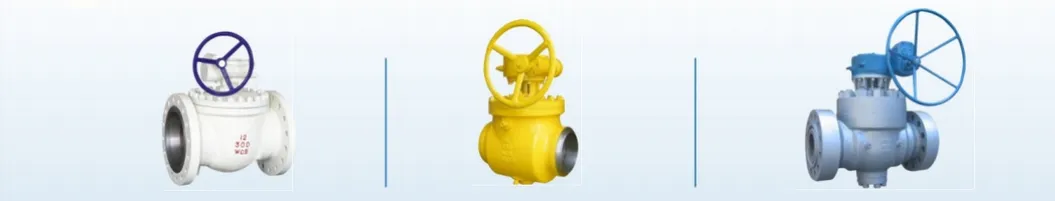

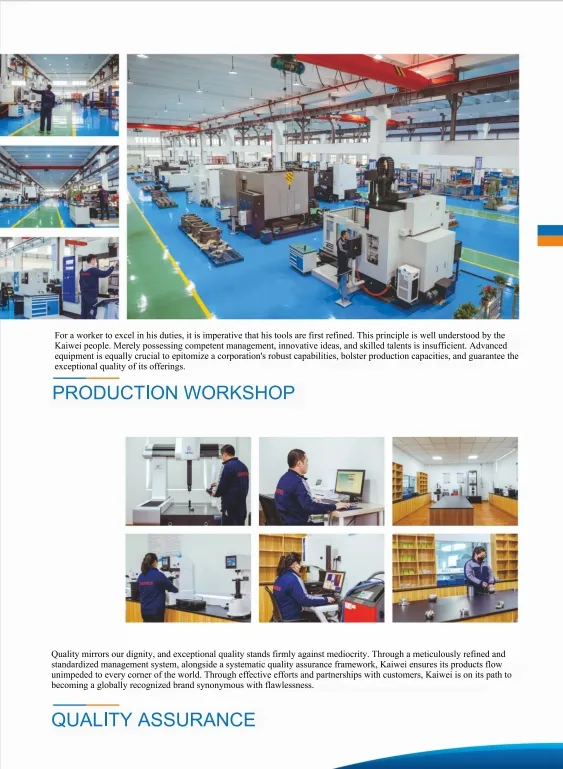

Detailed Photos & Exhibition

Enterprise Certification

Frequently Asked Questions

What materials are available for the ball valve bodies?

Our valves are available in a variety of materials including ASTM A216WCB (Carbon Steel), ASTM A351 CF8M (Stainless Steel), and Forged options like ASTM A105 or F316 depending on the application requirements.

Do these valves comply with international fire safety standards?

Yes, our ball valves are designed and tested to meet API 607 and API FA fire-safe standards, ensuring reliability in high-risk environments.

What is the difference between Floating and Top-Entry ball valves?

Floating ball valves are typically used for smaller sizes and lower pressures where the ball is supported by the seats. Top-Entry valves allow for easier maintenance as the internal parts can be accessed without removing the valve from the pipeline.

Can these valves be used for extreme temperature conditions?

Absolutely. We offer specialized configurations for both cryogenic applications (down to -60°C) and high-temperature scenarios (up to 260°C) using appropriate body materials and extended bonnets.

What connection methods are supported?

We support multiple connection ends including Raised Face (RF), Ring Type Joint (RTJ), Butt Weld (BW), and Socket Weld (SW) to match various piping standards like ASME B16.5 and B16.25.
