Pneumatic Forged Steel Trunnion Mounted Ball Valve

1 / 5

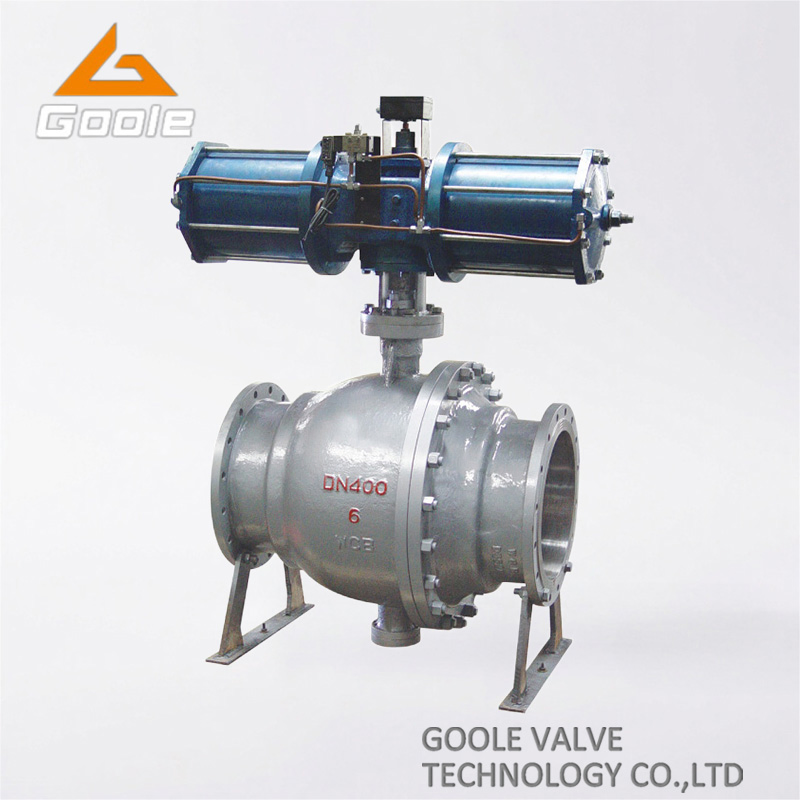

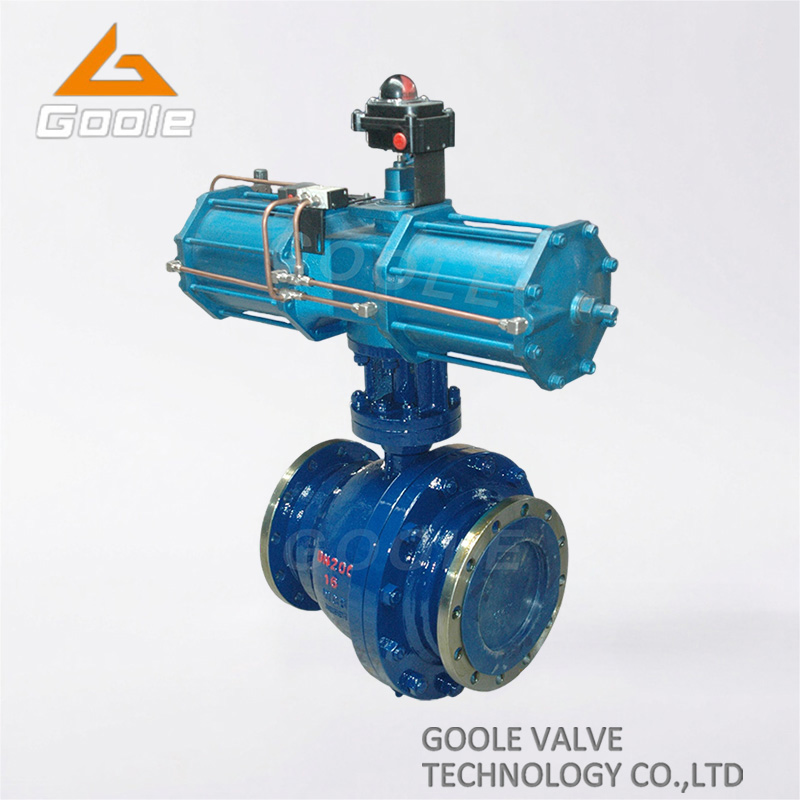

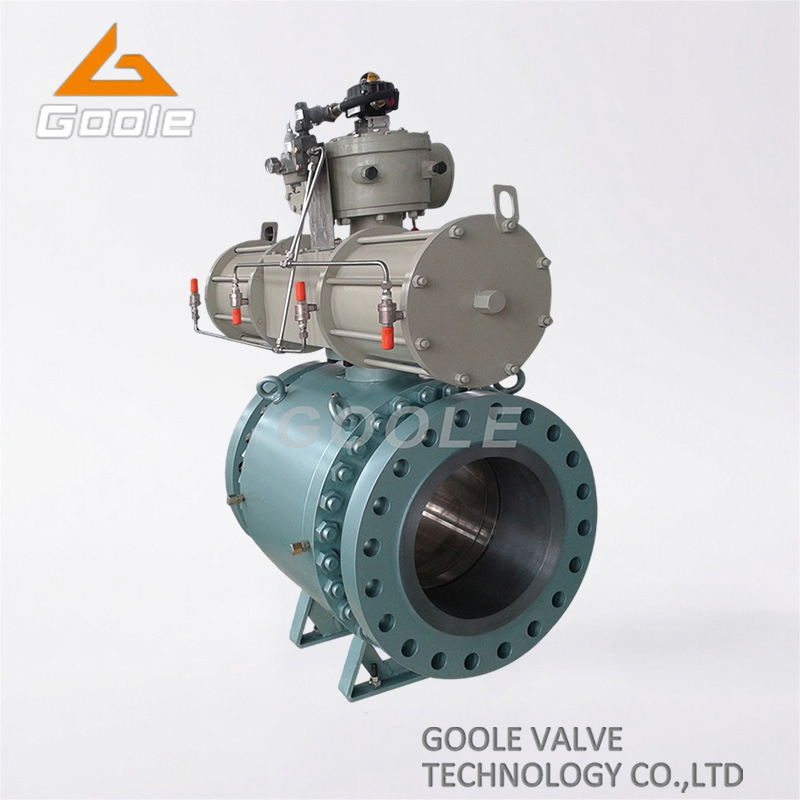

Pneumatic Forged Steel Trunnion Mounted Ball Valve

Customization:	Available
Media:	W.O.G.
Connection Form:	Flange

Send Inquiry

Product Description

Basic Info

Model NO.GAQ647F

Driving ModePneumatic

Nominal PressureANSI CLASS 150-900

ChannelStraight Through Type

StructureFixed Ball Valve

TypeTrunnion Mounted Ball Valve

FunctionBlow-Down Valve

TemperatureNormal Temperature

StandardAPI 608

ApplicationIndustrial Usage

PackagePlywood Case

HS Code8481804090

Product Description

Pneumatic Forged Steel Trunnion Mounted Ball Valve

Pneumatic Actuated ball valve is designed with an upper and lower stem fixed valve core (shaft supported) and a movable sealing seat. More stable work. Equipped with automatic compensation function, bi-directional sealed valve seats have great shear force and self-cleaning function when rotating without gap between them.

For the full bore valve, the bore diameter i.e hole in the ball has the same internal diameter as the pipe, whereas a reduced bore valve has a smaller bore diameter than the internal diameter of the pipework it is on. Full-port ball valves are used where their low flow resistance is of value such as on pump suction pipes, where a pressure drop can affect pump performance.

Product Features

⚙️

1. Pneumatic Actuation:

Allows for precise, automatic control of fluid flow, reducing the need for manual intervention and improving system automation.

✂️

2. Shear Force Resistance:

The V-incision metal seat design allows the valve to handle fiber and small solid particles, such as pulp, without compromising sealing performance.

🎯

3. Precise Flow Control:

Provides precise regulation and reliable positioning, with roughly equal percentage flow characteristics and an impressive 100:1 adjustable ratio.

Technical Parameters

Parameter	Details	Parameter	Details
Nominal Pressure	PN1.6~6.4MPa	Nominal Diameter	20~400mm
Hard Seal Temp	-40~300ºC	Soft Seal Temp	-40~180ºC
Applicable Medium	Water, Gas, Oil, etc.	Driving Means	Manual, Electric, Pneumatic
Body Materials	WCB, CF8, CF8M, CF3M	Stem Materials	2Cr13, 304, 316
Rotary Angle	90°	Valve Seat	PTFE, 0Crl, 7Ni4Cu4Nb

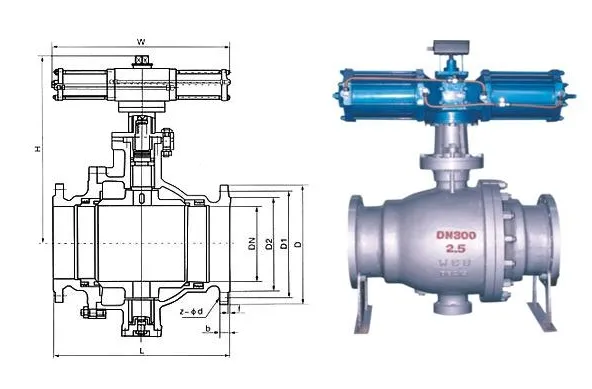

Main Dimensions Reference

DN(mm)	25	32	40	50	65	80	100	150	200	250	300	350	400
Kv	22	36	58	82	145	200	355	798	418	2209	3185	4309	5664

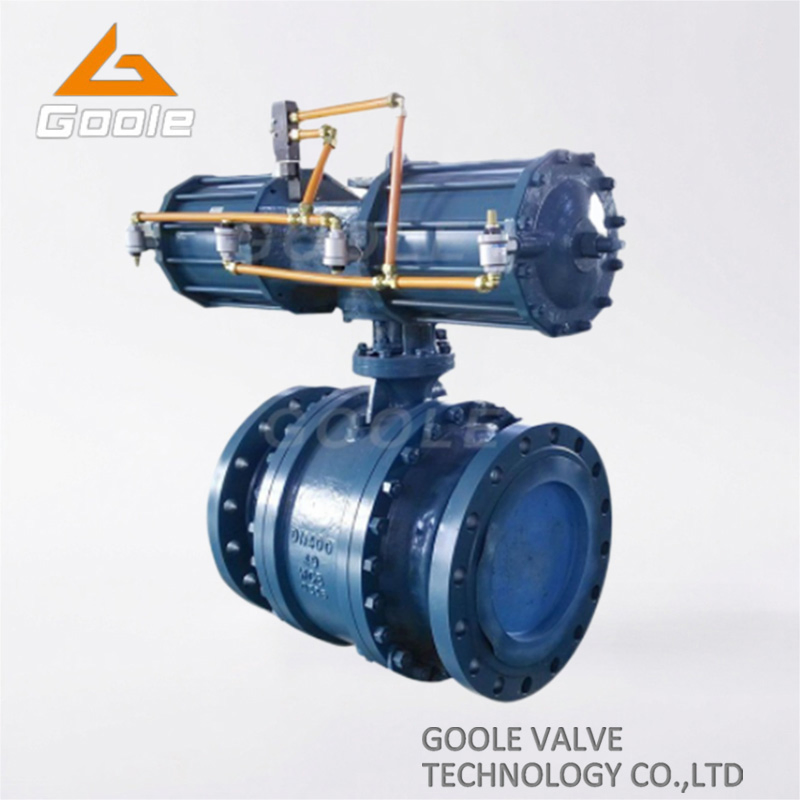

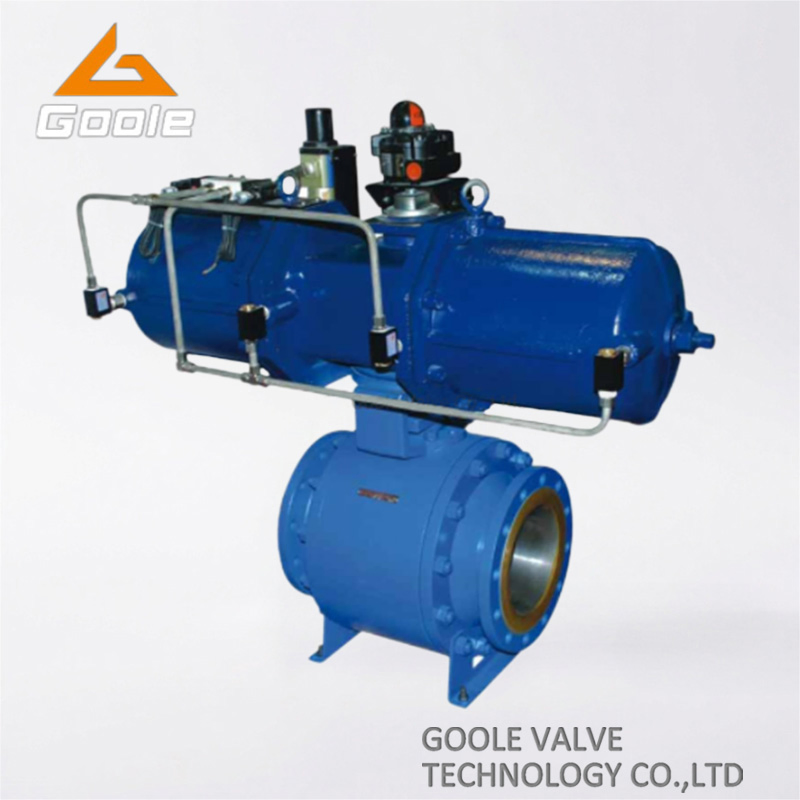

Product Display

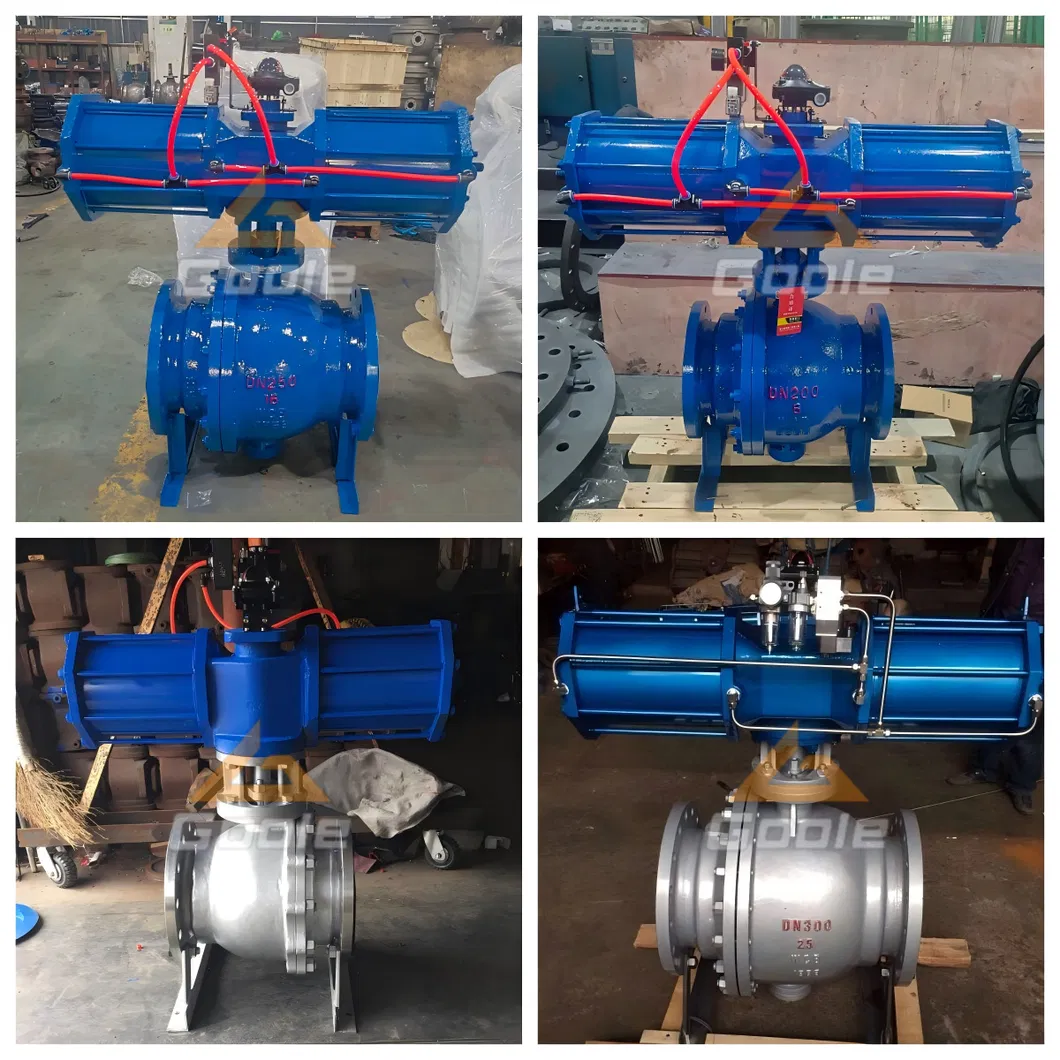

Pneumatic Forged Steel Trunnion Mounted Ball Valve Display

Frequently Asked Questions

Q1: What is the advantage of a trunnion-mounted design? A: The trunnion-mounted design uses an upper and lower stem to fix the valve core, providing greater stability and a more reliable seal under high-pressure conditions compared to floating ball valves.

Q2: Can this valve handle media with solid particles? A: Yes, the V-incision metal seat design provides a shear force that can handle fibers and small solid particles like pulp, maintaining a clean sealing surface.

Q3: What is the difference between hard and soft seals? A: Soft seals (like PTFE) offer excellent bubble-tight shutoff at lower temperatures (up to 180ºC), while hard seals are designed for higher temperature applications (up to 300ºC).

Q4: How does pneumatic actuation improve system performance? A: It allows for automated remote control, faster response times, and precise positioning, which is critical for industrial automation and flow regulation.

Q5: What body materials are available for corrosive environments? A: We offer stainless steel options such as CF8, CF8M, and CF3M, which provide excellent resistance to corrosion in various chemical and industrial applications.
