RPZ Valve
RPZ Valve
Orbital ball valves control fluid flow by rotating the ball, mainly used to cut off, distribute, and change the direction of medium flow. Its working principle is to open and close the valve through the rotation of the sphere. The design features of track ball valves include frictionless opening and closing, low torque design, and self-cleaning sealing surface function, which make track ball valves perform well in various industrial applications.

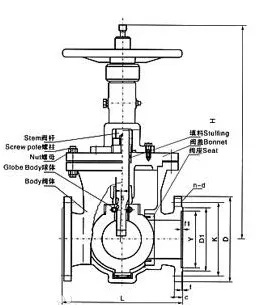

| NO. | Part name | A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M |
|---|---|---|---|---|---|---|
| 1 | Body | A216 WCB | A217 WCB | A217 C5 | A351 CF8 | A351 CF8M |
| 2 | Plug | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8M |
| 3 | Gasket | Flexible graphite + stainless steel / PTFE | ||||
| 4 | Cover | A216 WCB | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M |
| 7 | Packing | Flexible graphite / PTFE | ||||
| TYPE | ORBIT BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
|---|---|---|---|
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500 |
| CONNECTION | THREADED, WELDED, FLANGE END | FUNCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL, PNEUMATIC, ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| WARRANTY | 12 MONTHS | HS CODE | 84819090 |
