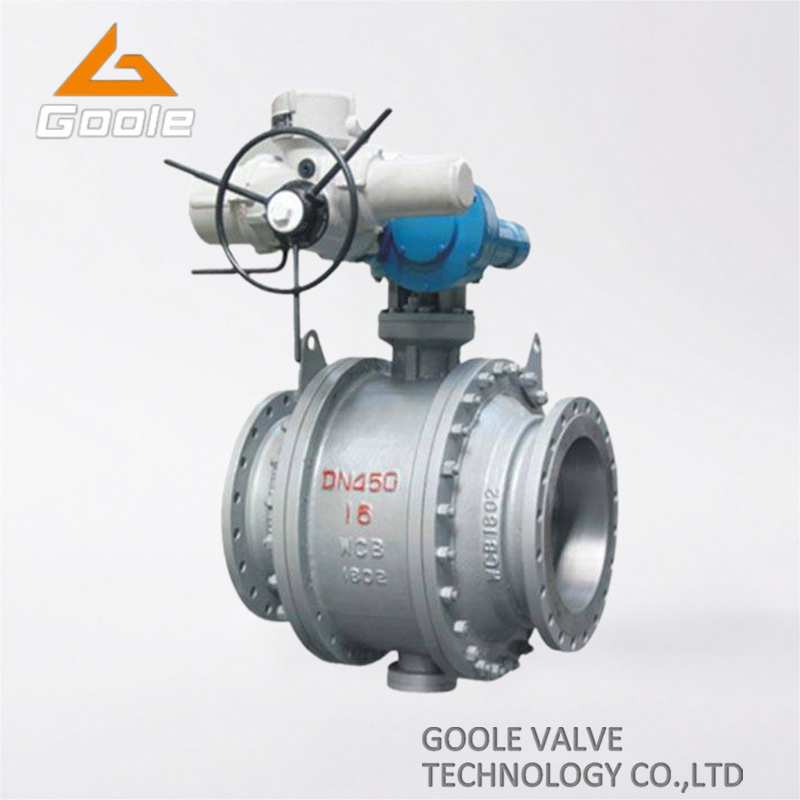

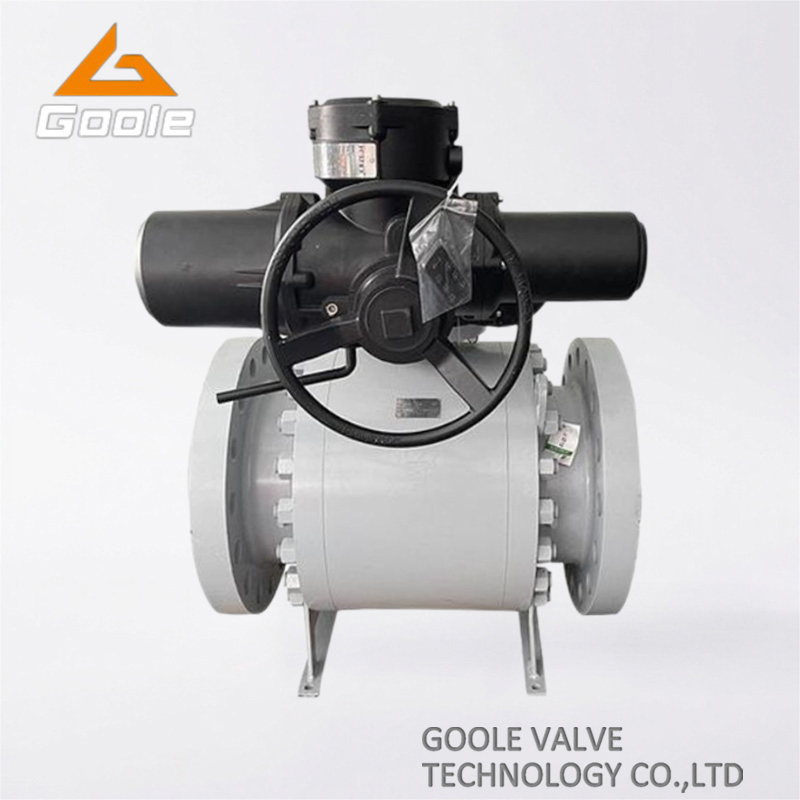

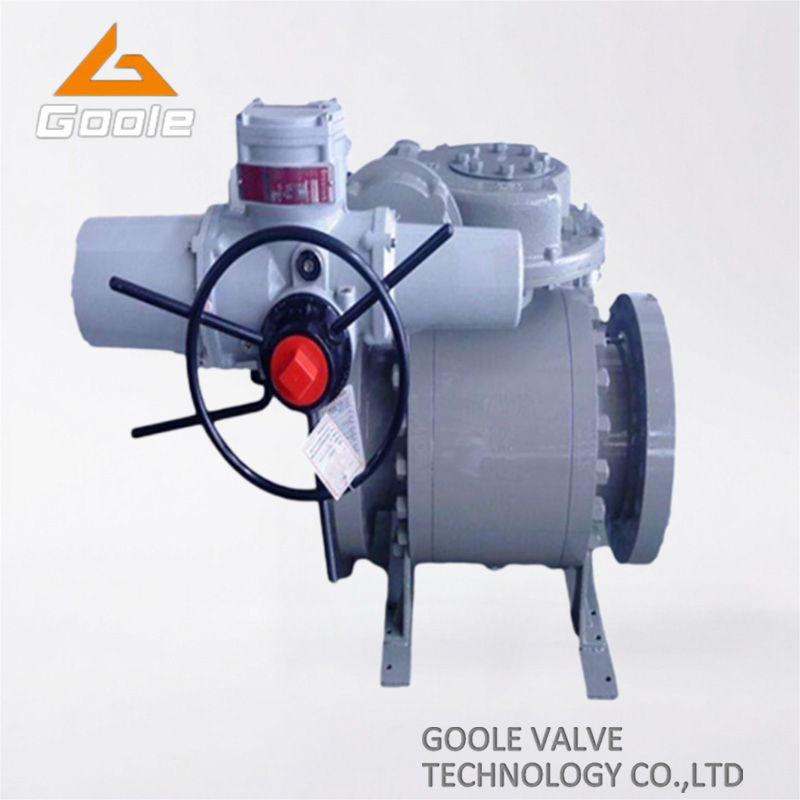

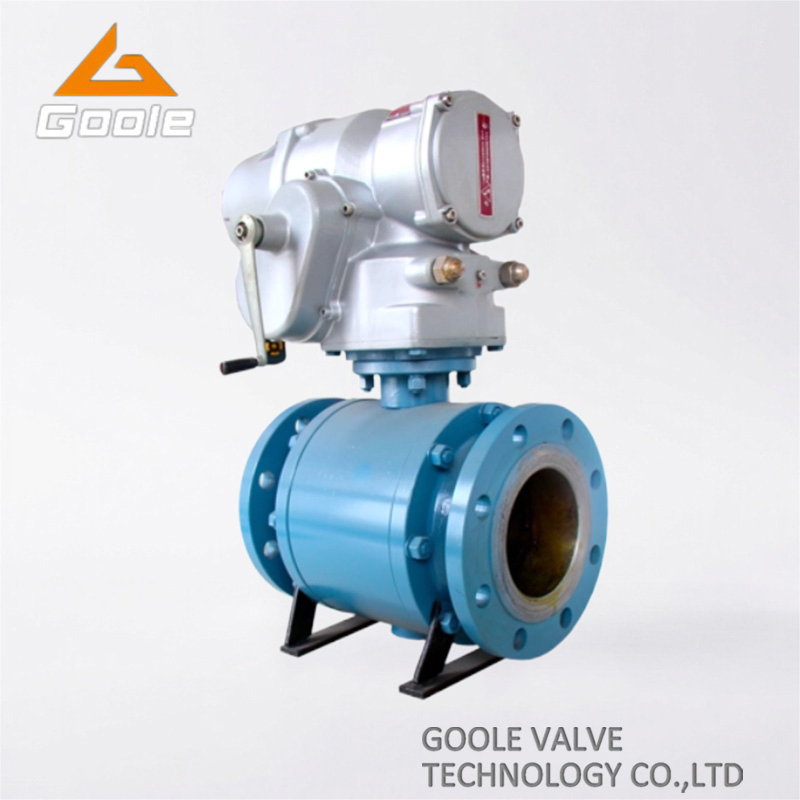

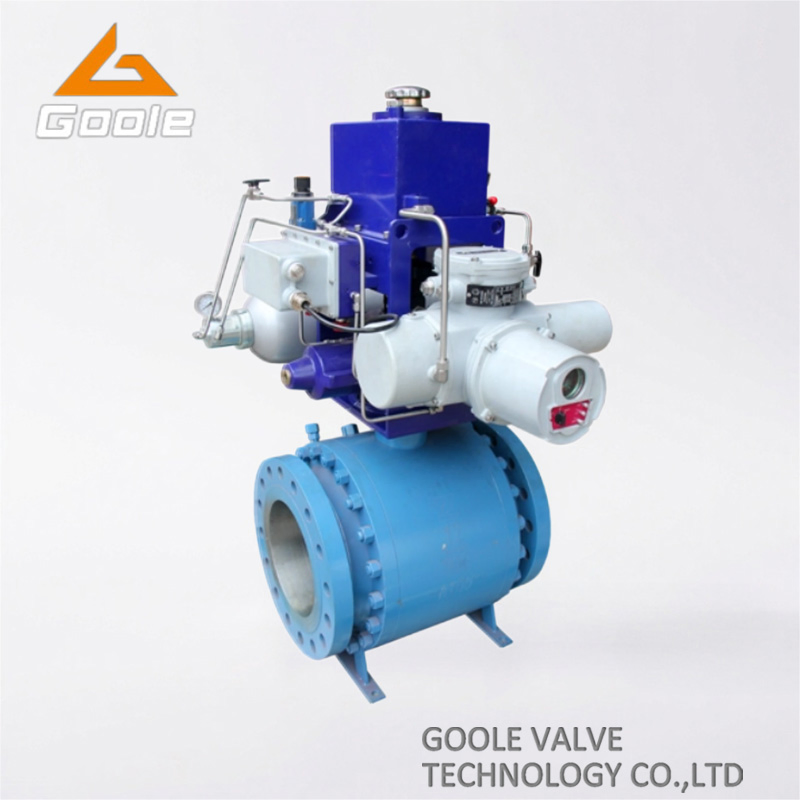

3 Pieces Electric Forged Steel Trunnion Mounted Ball Valve
The electric forged steel ear shaft ball valve adopts electric drive, providing reliable and automated fluid control in pipeline systems. Electric actuators are easy to operate remotely, making them an ideal choice for automated industrial processes. This feature reduces the need for manual intervention and ensures consistent and accurate control of traffic.
Through electric drive, operators benefit from easy control as valves can be operated without manual input, making them an excellent choice for high demand applications. Electric actuators also allow for remote monitoring and control, which helps improve operational efficiency and simplify operations.
| Parameter | Value / Description |
|---|---|
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Hard Seal Temp | -40~300ºC |
| Soft Seal Temp | -40~180ºC |
| Applicable medium | Water, gas, oil quality and more |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem Material | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| DN(mm) | 25 | 50 | 100 | 200 | 300 | 400 |
|---|---|---|---|---|---|---|
| Kv | 22 | 82 | 355 | 418 | 3185 | 5664 |
| P(MpA) | 14 | 9 | 8 | 3.5 | 2.5 | 1.5 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500 |
| CONNECTION | THREADED, WELDED, FLANGE END | FUNCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL, PNEUMATIC, ELECTRIC | WARRANTY | 12 MONTHS |
