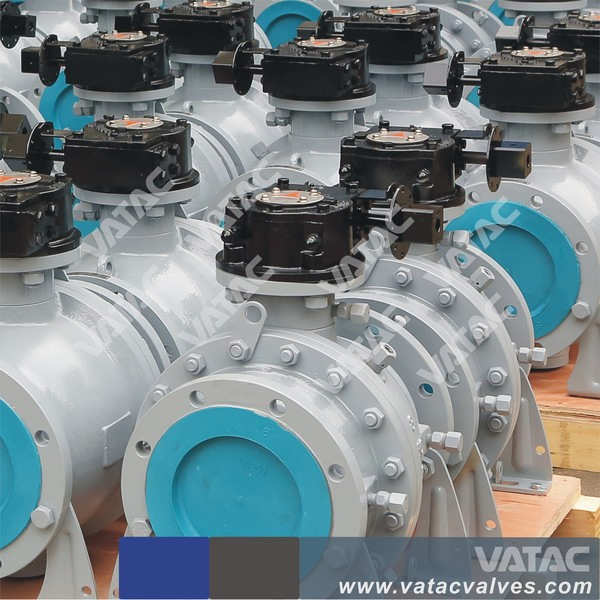

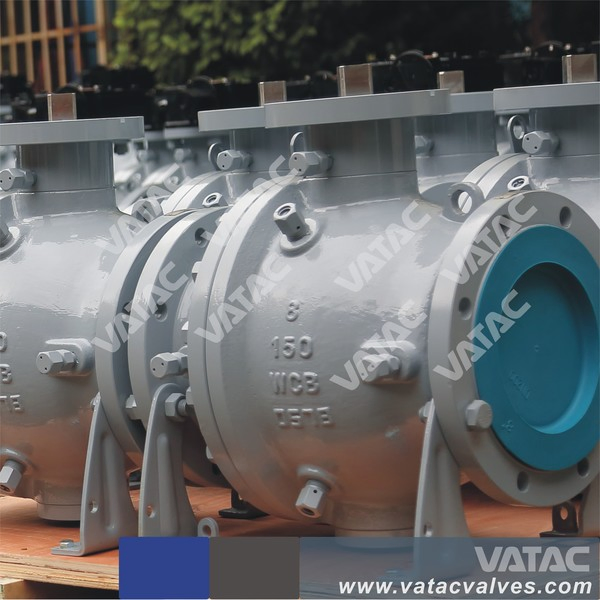

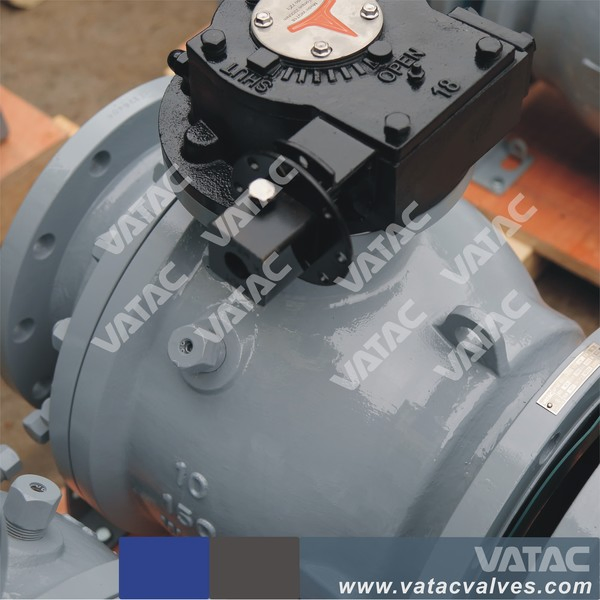

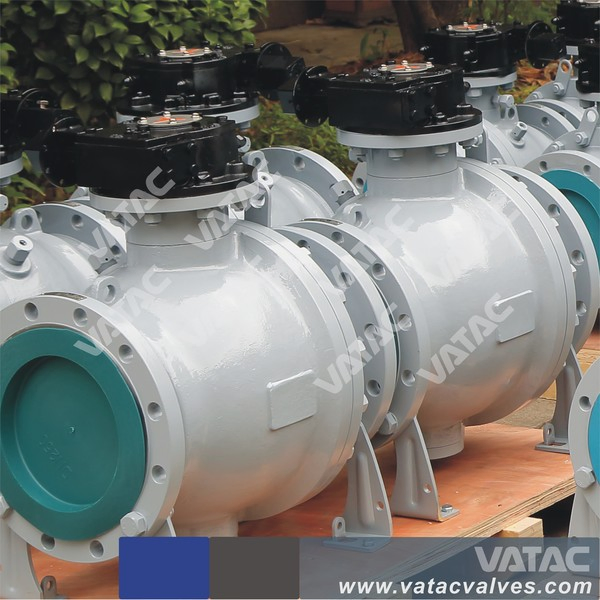

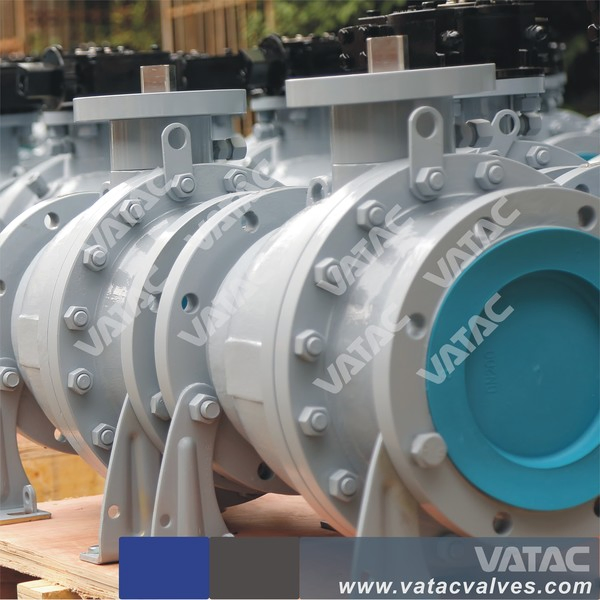

Carbon Steel Pneumatic Flanged Trunnion Mounted Ball Valve

1 / 5

Carbon Steel Pneumatic Flanged Trunnion Mounted Ball Valve

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Info

Connection Form

Flange

Driving Mode

Pneumatic

Nominal Pressure

ANSI CLASS 150-900

Channel

Straight Through Type

Structure

Fixed Ball Valve

Type

Fixed Ball Valve

Function

Shutoff

Temperature

Normal Temperature

Application

Industrial Usage, Water Industrial Usage, Household Usage

Characteristic

Trunnion Mounted Ball Valve

Design & Manufacture

API 6D, ASME B16.34 & BS5351

Pre-Temp. Rating

ASME B16.34

Face to Face

ASME B16.10

Ends Connection

RF, NPT, Bw, Sw

Inspect & Test

API 598

Certificate 1

Dnv CE 0575

Certificate 2

ISO 9001: 2008

Transport Package

Sea Worthy Ply-Wood Packing

Specification

API, ANSI, AEME, BS, DIN, JIS, GB etc

HS Code

848180490

Production Capacity

8000 Tons Per Year

⚙️

Product Description

Ball Valves are engineered with high-performance features for diverse industrial applications:

Manufacture in Forged and Casting Materials: WCB, A105, SS304, SS316 & Duplex, etc.
Pressure Rating Available: CL150, CL300, CL600, CL900, CL1500, CL2500.
Available in Both Floating and Trunnion Ball designs.
Flanged (RB, F. P) Ends to ANSI B16.5 and Face to Face Dimension to ANSI B16.10.
Wall Thickness and Pre-temp. Rating compliant with ASME B16.34.
Size Ranges: 1/2" ~ 18".
Optional Lockable Handle Lever and Blow-Out Proof Stem.
Fire Safe Design according to API 6FA.
Inspection & Testing: API 6D / API 598; Marking: MSS-SP-25.

Part Names	Material Options
Body / Bonnet	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF8L/F304L	CF3M/F316L
Ball	A105+ENP	SS304	F22	SS304	SS316	SS304L	SS316L
Stem	A105	F304	F6a	F304	F316	F304L	F316L
Seat Ring	PTFE / RPTFE / NYLON / DEVLON / PEEK or METAL
Packing	Graphite / PTFE
Gasket	SS304 + Graphite
Bolts / Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M
Temperature	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C

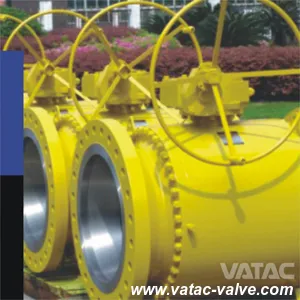

Pneumatic Flanged Trunnion Mounted Ball Valve 1

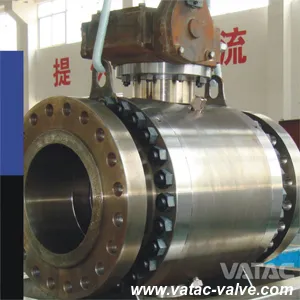

Pneumatic Flanged Trunnion Mounted Ball Valve 2

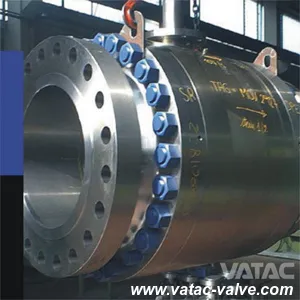

Pneumatic Flanged Trunnion Mounted Ball Valve 3

❓

Frequently Asked Questions

What materials are available for the ball valve body?

We provide a wide range of materials including Carbon Steel (WCB, A105), Stainless Steel (SS304, SS316, SS304L, SS316L), Low Carbon Steel (LCB, LF2), and Alloy Steel (WC6, F22) to suit different service conditions.

What is the maximum pressure rating for these valves?

Our ball valves are available in pressure ratings ranging from ANSI Class 150 up to Class 2500, making them suitable for both low and high-pressure industrial applications.

Do the valves meet international safety standards?

Yes, our valves are designed and manufactured according to API 6D, ASME B16.34, and BS5351 standards. They are also Fire Safe designed to API 6FA and inspected per API 598.

What size ranges do you offer for flanged ball valves?

We offer a comprehensive size range from 1/2 inch up to 18 inches to accommodate various piping requirements.

What are the typical applications for these pneumatic ball valves?

These valves are widely used in general industrial projects, water treatment facilities, and household utility systems for reliable shutoff control.

Can the valves handle extreme temperatures?

Yes, depending on the material selected (such as CF8 or CF8M), our valves can operate in temperatures ranging from cryogenic levels (-196°C) up to high-temperature environments (427°C).
