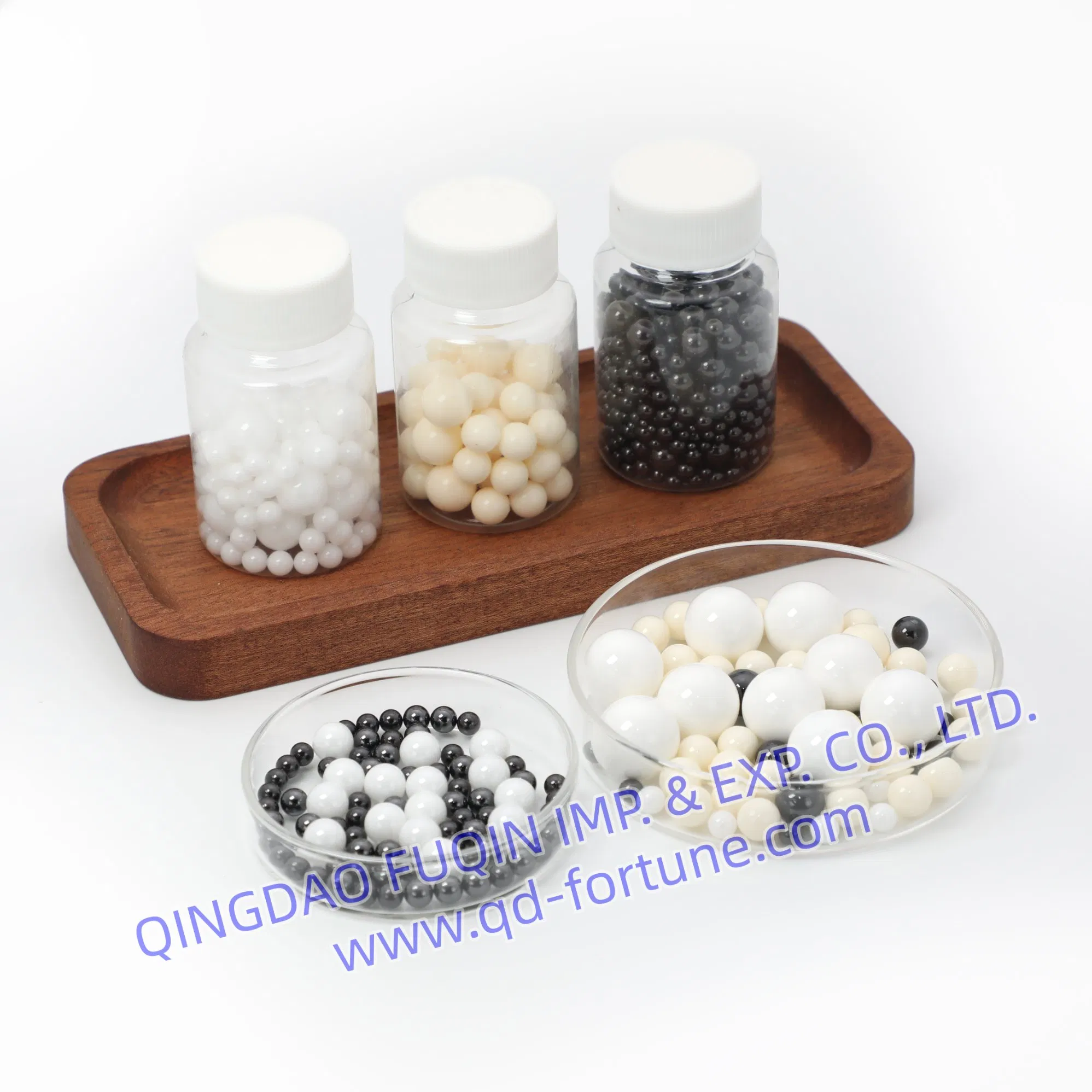

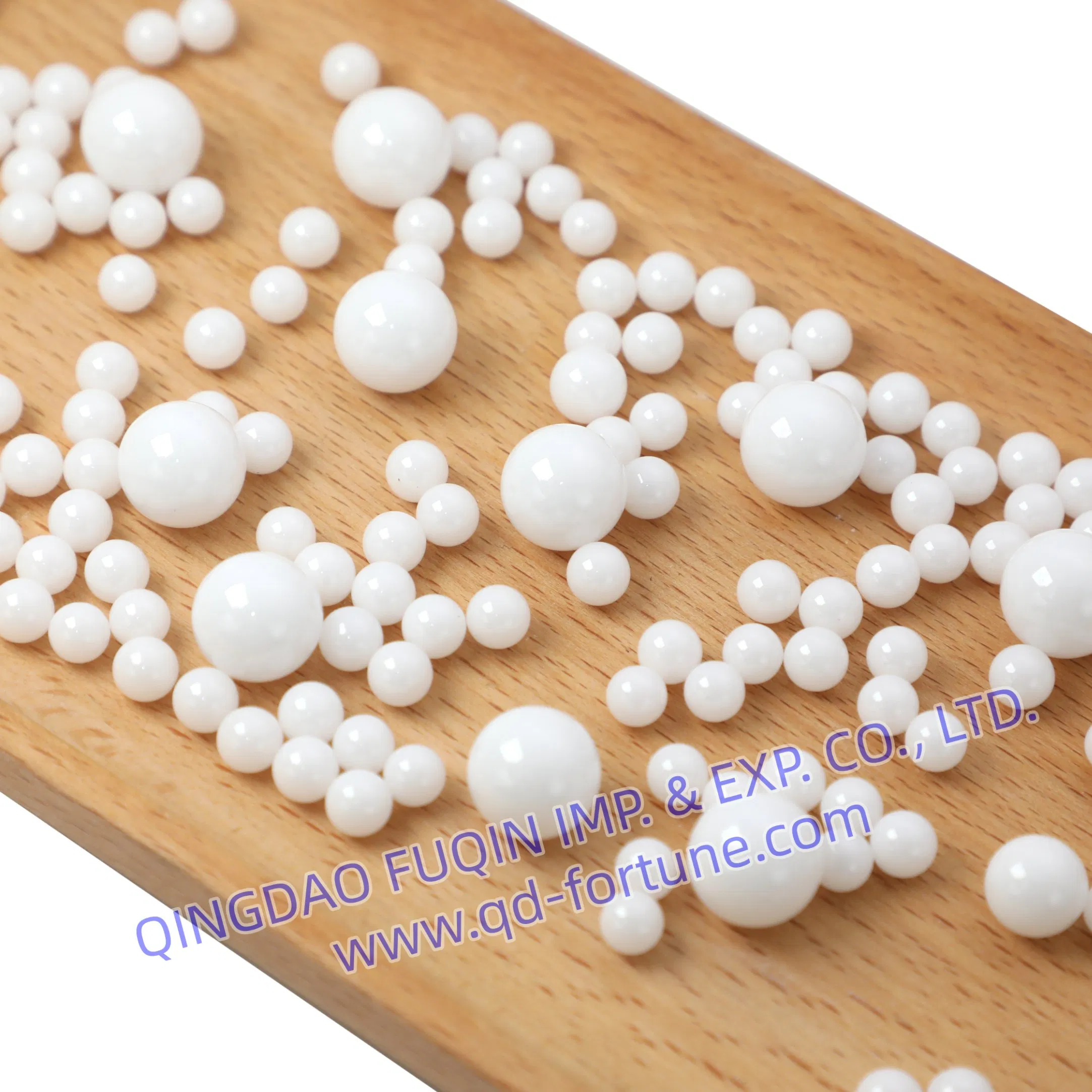

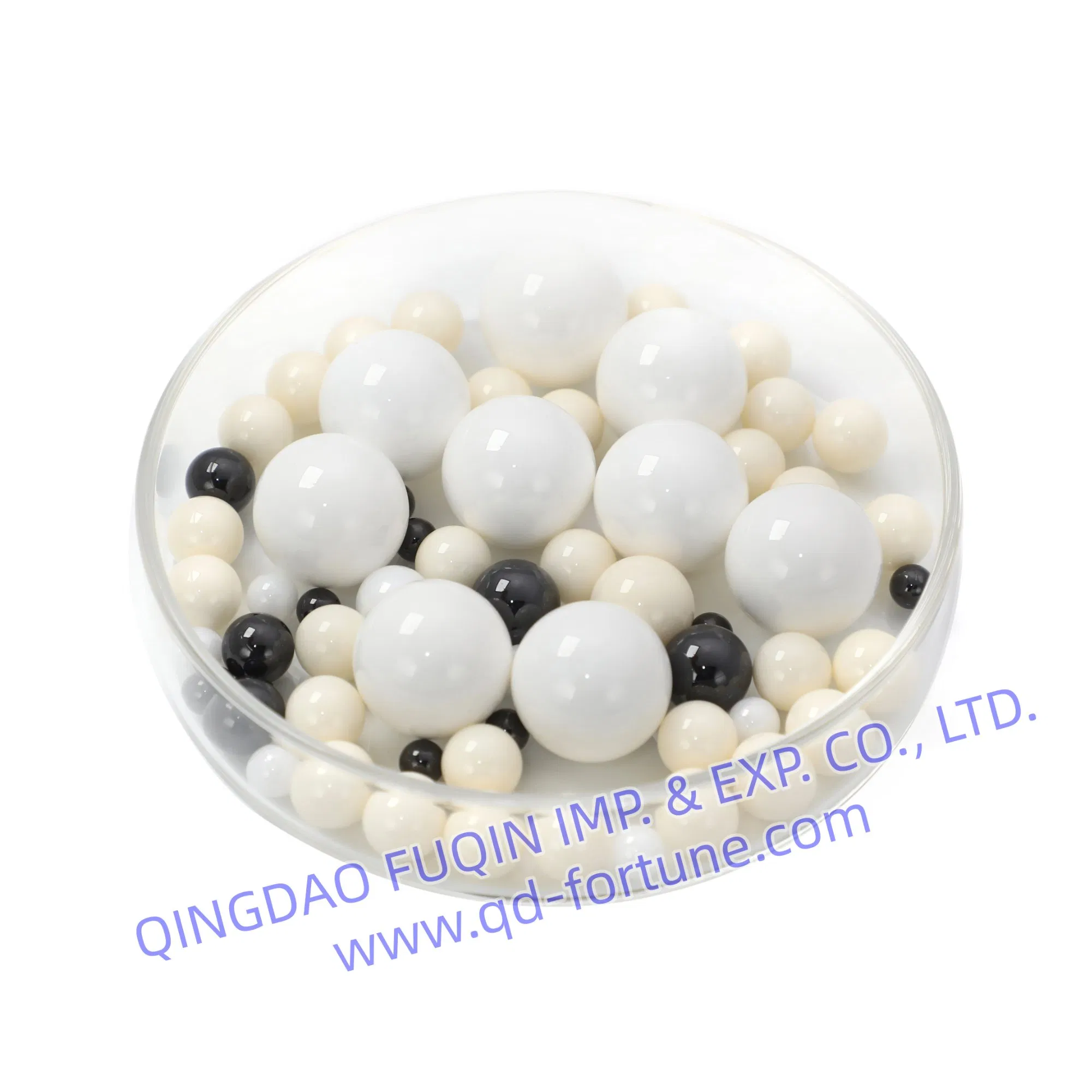

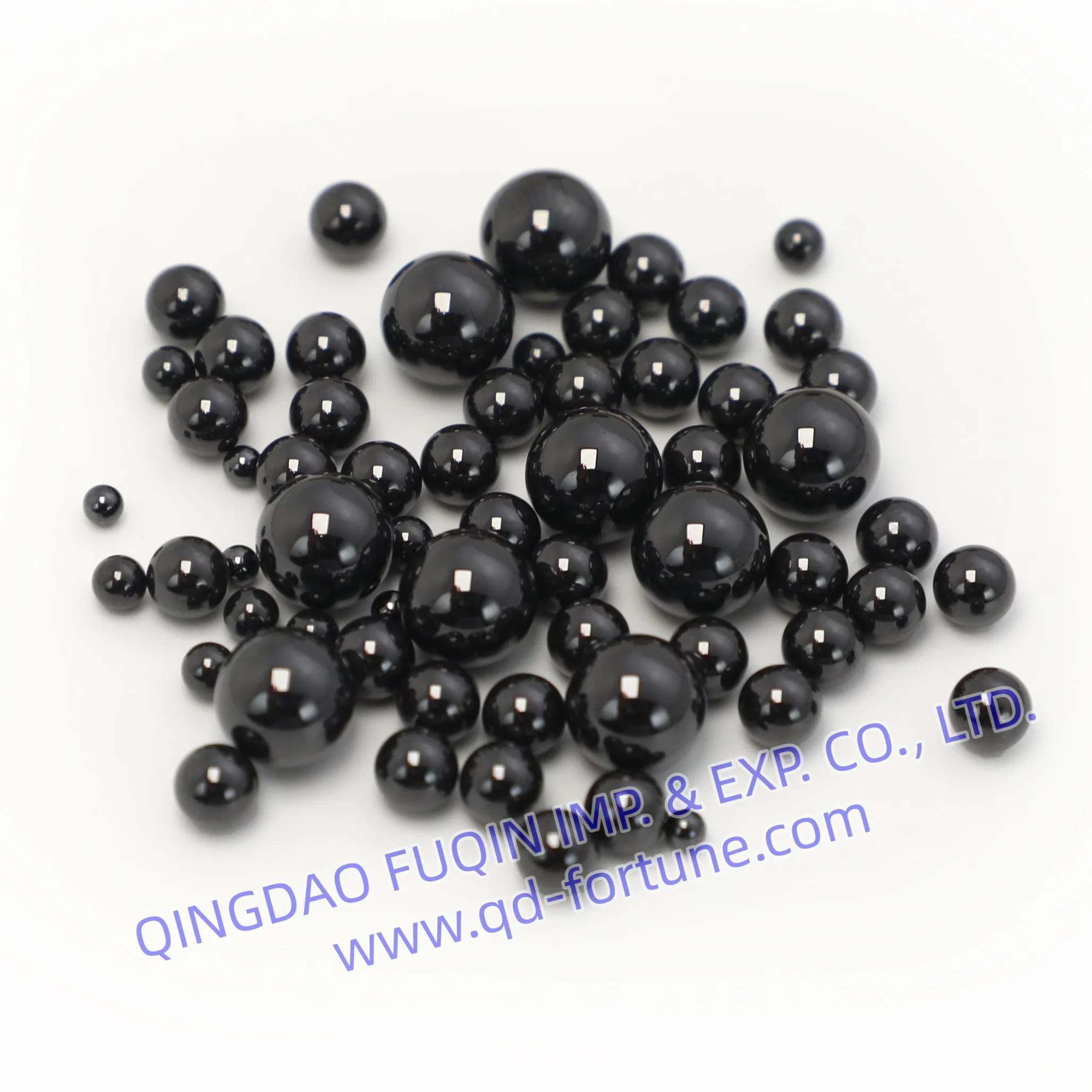

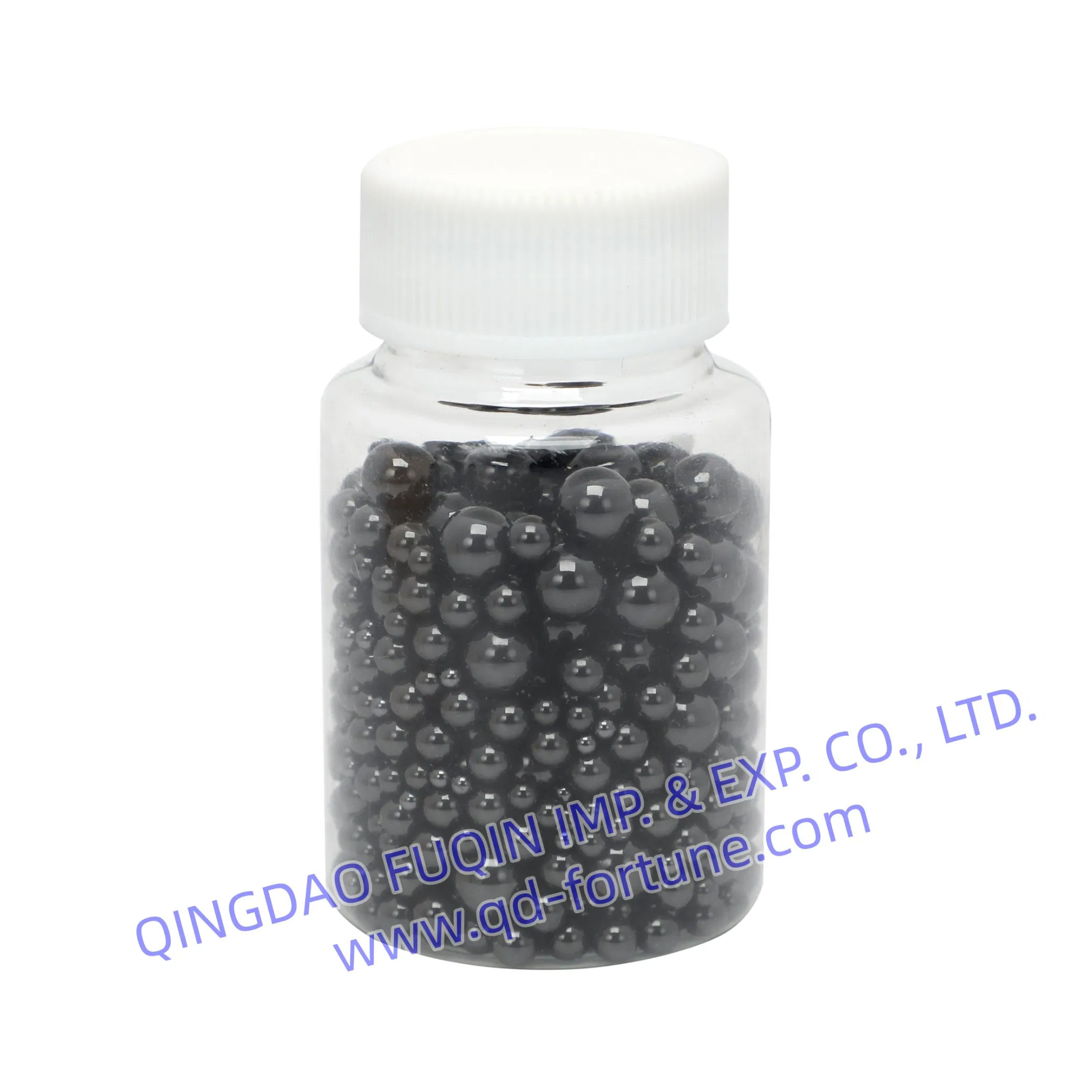

Precision Hip G5 G10 Al2O3/Zro2/Sic/Si3n4 Ceramic Ball for Bearing/Grinding/Lapping/Valve

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
fuqin-C2601
Standard Parts
Yes
Universal
Yes
Type
Bearing Ball
Material
Stainless Steel / Ceramic
Feature
Yes
Samples
Yes
Quality
ISO9001
OEM
No
Production Capacity
500,000PCS/Week
Company Profile

We are a professional manufacturing and exporting company, mainly supplying balls, rollers, rod ends and so on. Our professional team aims to provide qualified products, quick service and quick delivery. We have served the automotive, bearing, and cosmetics industry for more than 15 years. To reach our goals, we are continuously developing and improving our processes.

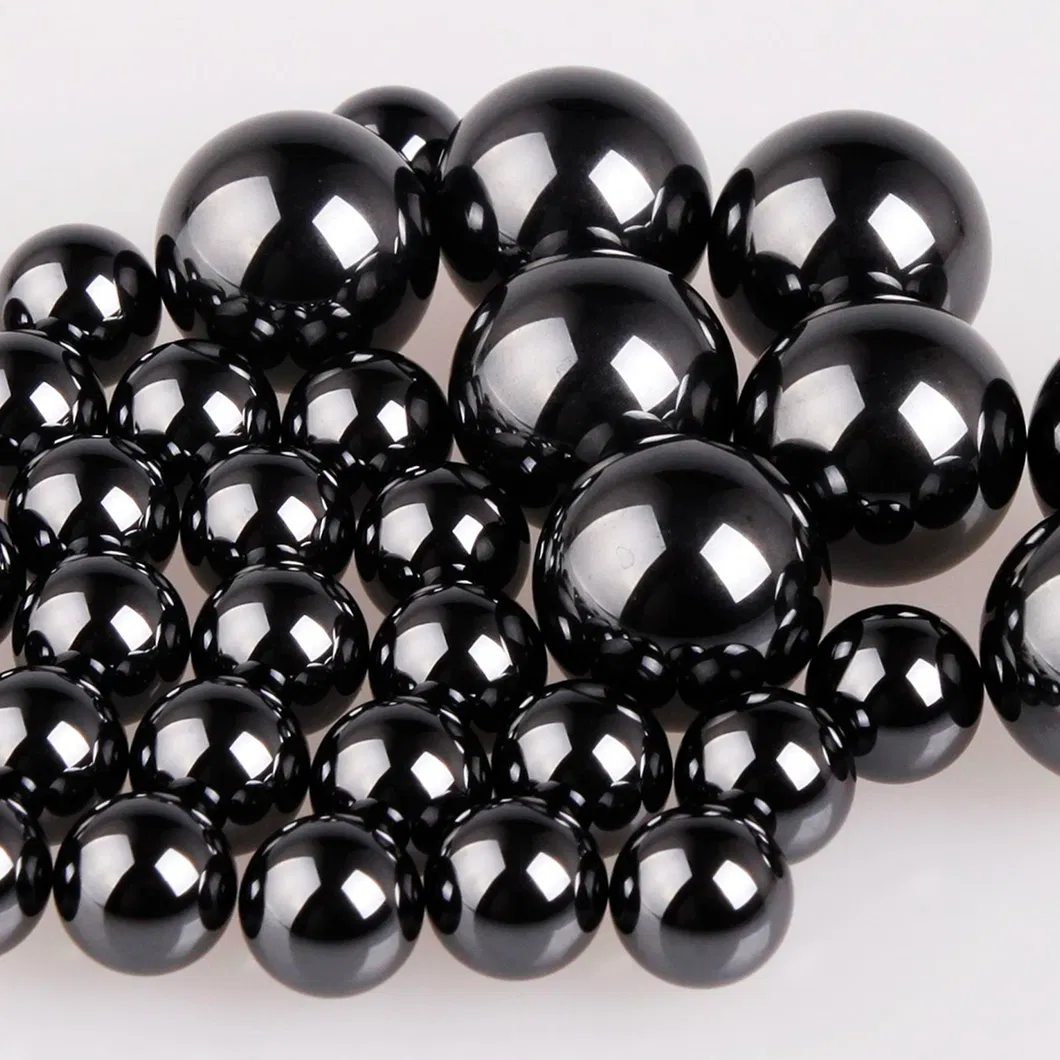

Ceramic Ball 1

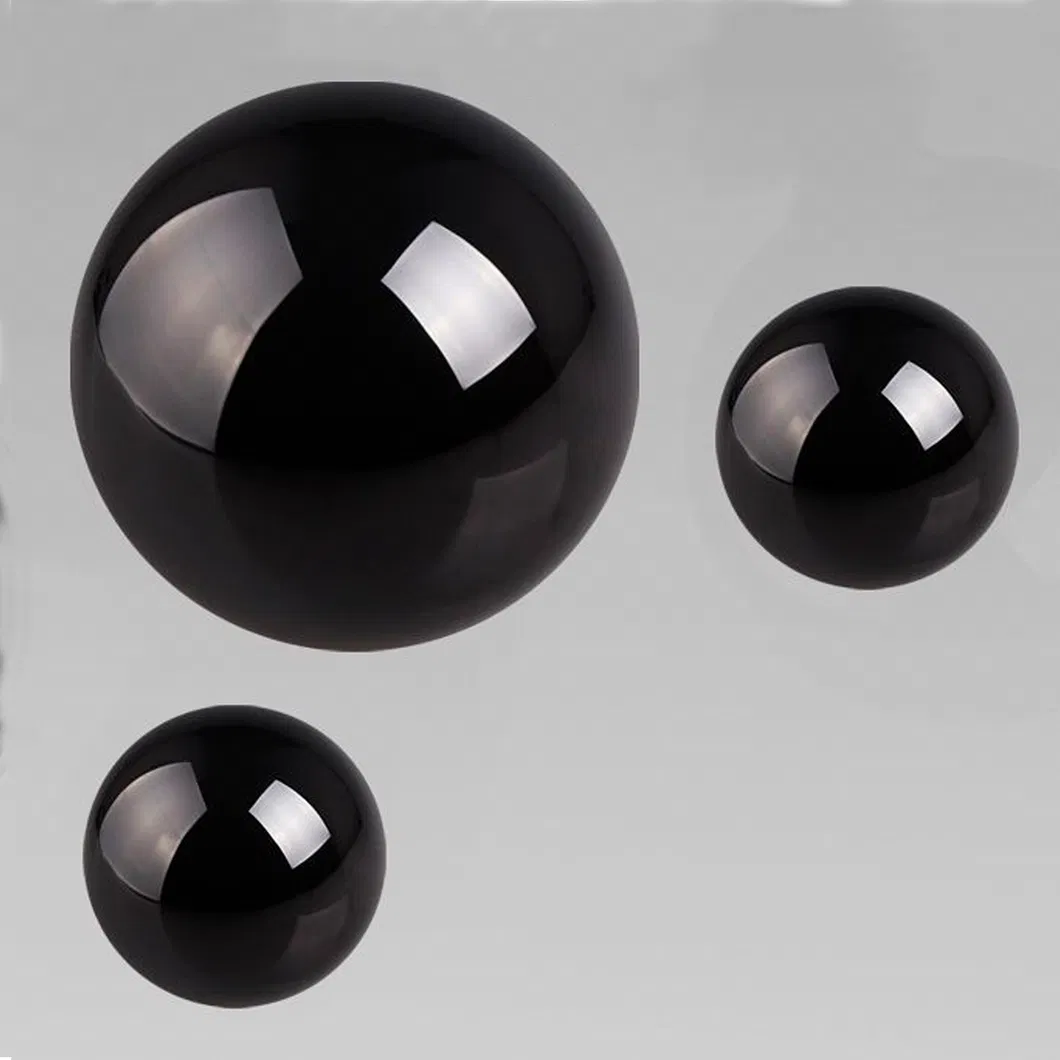

Ceramic Ball 2

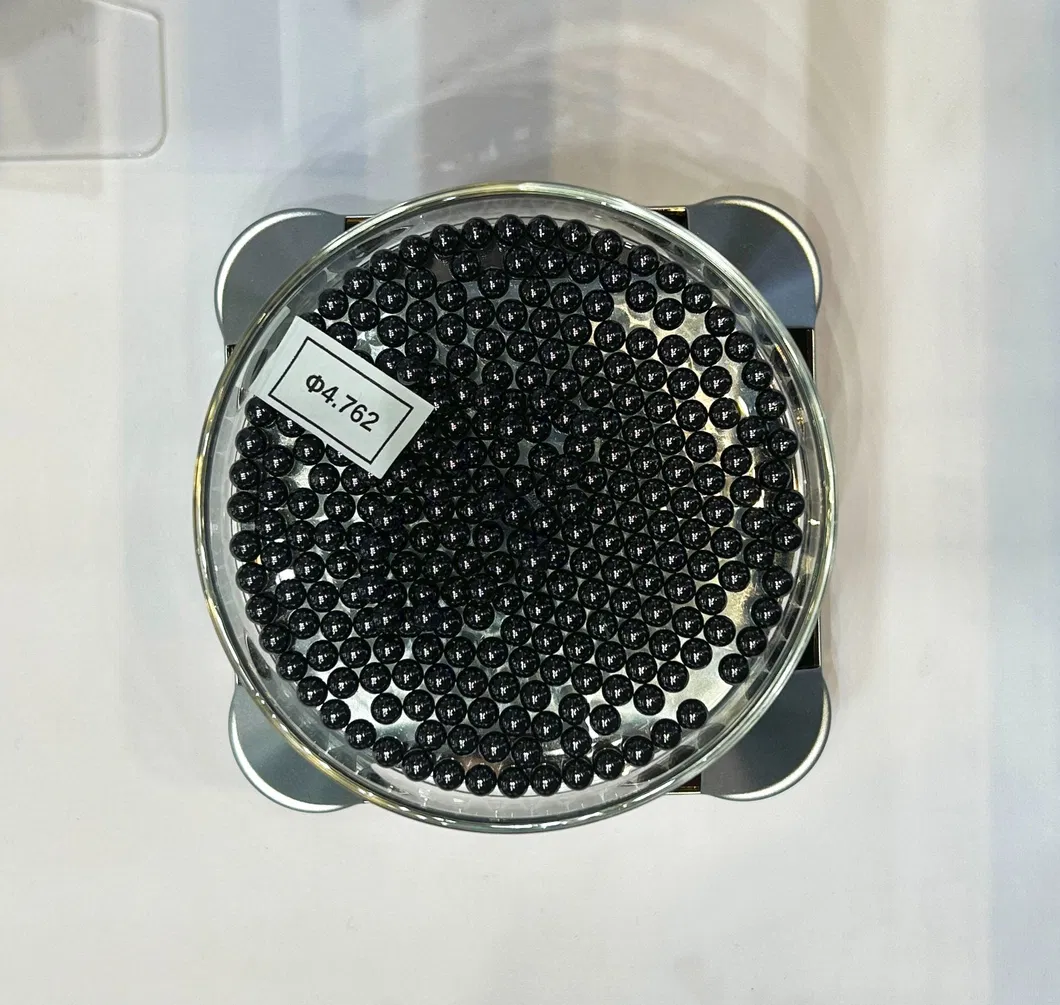

Ceramic Ball 3
Material Properties
Material Material Model Grade Color Characteristics
Si3N4 JSN-W4C (HIP) Class I Black High fatigue life, strength, temperature resistance, wear resistance, non-magnetic
JSN-W4 (HIP) Class I Gray Corrosion resistance, high strength, non-magnetic
JSN-12 Class II Black High temperature resistance, high strength, wear resistance
Al2O3 AO-4N01 99.99wt% White Corrosion resistance, high hardness, high temperature resistance
SiC SC-HD01 - Black High hardness and corrosion resistance
ZrO2 ZO-HD01 - White High strength, high toughness, corrosion resistance
Product Parameters

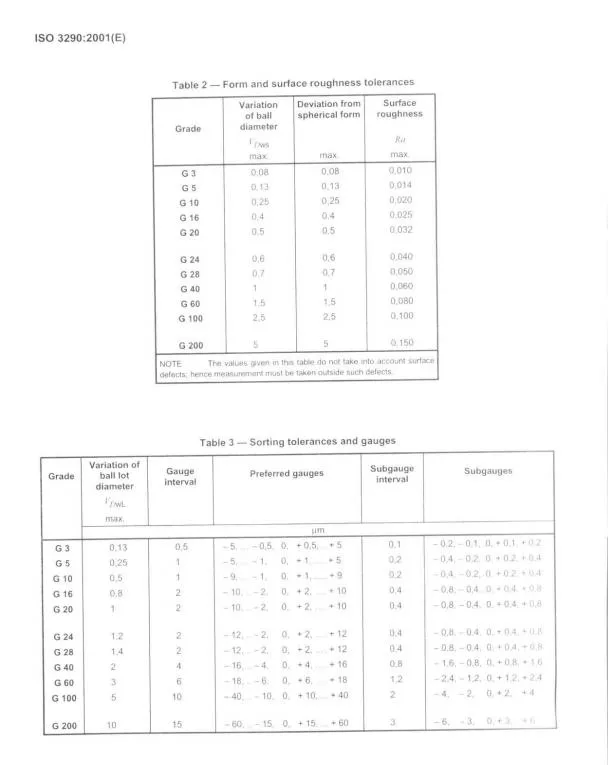

Product Parameters Table
Applications
  • High precision / speed bearings
  • High / low temperature bearings and valves
  • Hybrid bearings
  • Non-magnetic bearings
  • High precision linear motion systems
  • Robot arm joints
  • Automotive components
Application Image
Our Advantages
  • Strict quality control by our professional team
  • Quick response to all inquiries and technical questions
  • Efficient logistics and quick delivery schedules
Frequently Asked Questions
Q: What types of ceramic materials do you offer?
A: We provide a wide range of materials including Si3N4 (Silicon Nitride), Al2O3 (Alumina), SiC (Silicon Carbide), and ZrO2 (Zirconia).
Q: What is the highest precision grade available?
A: We can provide ceramic balls up to Grade G5 and G10 depending on the specific material and diameter requirements.
Q: Are these ceramic balls suitable for high-temperature environments?
A: Yes, materials like Si3N4 and Al2O3 are specifically chosen for their excellent high-temperature resistance and thermal stability.
Q: Can I request samples before placing a bulk order?
A: Yes, samples are available to ensure the product meets your specific technical requirements and quality standards.
Q: What industries typically use your precision balls?
A: Our products are widely used in the automotive, high-speed bearing, robotics, aerospace, and cosmetics industries.
Q: How are the products packaged for international shipping?
A: Products are carefully packed in plastic bags with dry or light oil protection, then placed in sturdy boxes, cartons, and wooden cases or barrels for safe transport.
