RPZ Valve
RPZ Valve
Specifications:

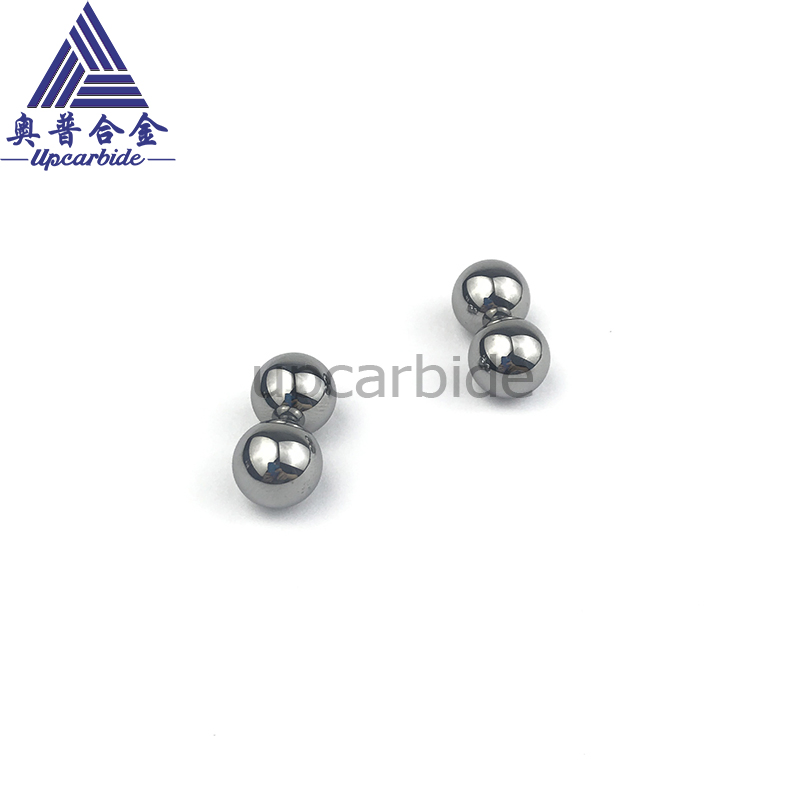

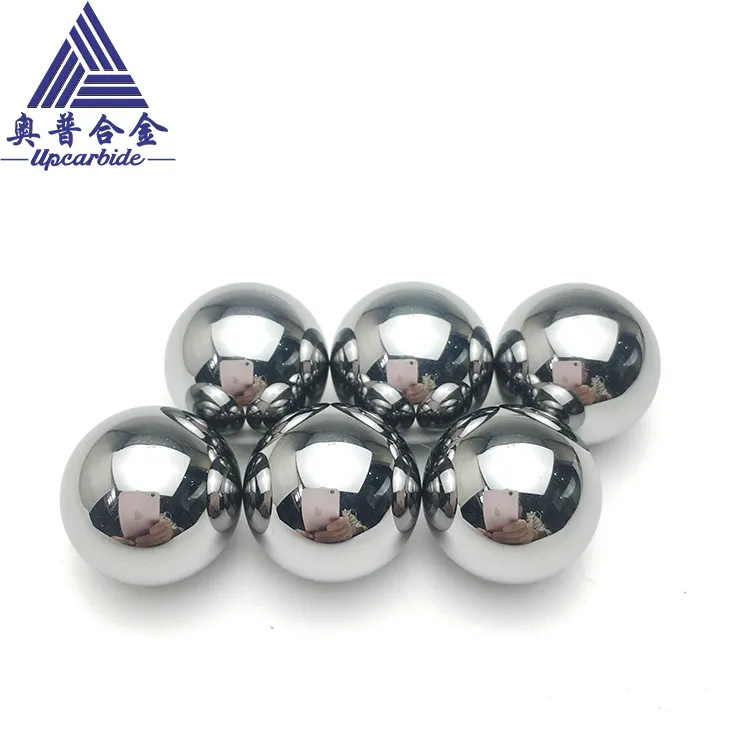

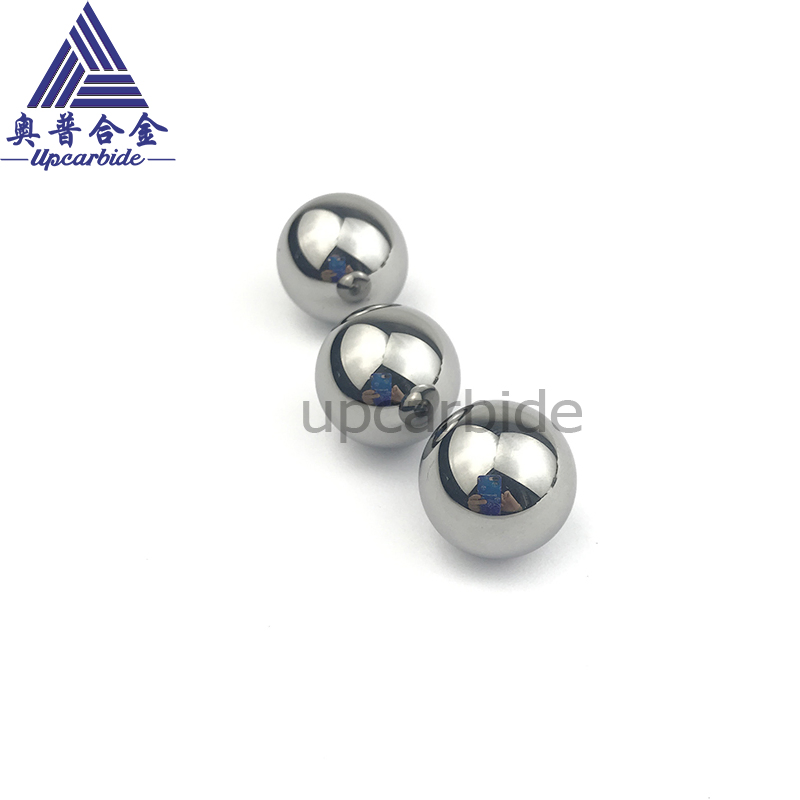

The unground ball is suitable for milling all kinds of materials. The grinding and polishing ball is suitable for precision punching member stretched, precision bearings, instruments, meters, pens, spraying machines, pumps, machinery parts, valve seals, brake pumps, squeeze-hole punches, oil, hydrochloric acid laboratories, hardness measuring instruments, fishing gear, and other high-end industries!
| Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPa) | Grain size (μm) | Compositions (%) |
|---|---|---|---|---|---|
| YG10X | 14.6 | 91.8 | 3000 | 0.6~0.8 | 10% CO 90% WC |
| YG6X | 14.85 | 92.0 | 1860 | 0.8~1.0 | 6% CO 94% WC |
| YG8 | 14.80 | 89.5 | 2320 | 1.2~2.0 | 8% CO 92% WC |
| YG6 | 14.85 | 90.0 | 2150 | 1.2~2.0 | 6% CO 94% WC |
| YN6 | 14.0 | 90.0 | 1400 | 1.2~2.0 | 6% CO 92% WC 2% Ni |
| Common Sintered Balls Diameters (mm) | |||||||
|---|---|---|---|---|---|---|---|
| 0.4 | 0.5 | 0.8 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 |
| 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | 11.0 | 12.0 | 13.0 |
| 14.0 | 15.0 | 16.0 | 17.0 | 18.0 | 19.0 | 20.0 | 21.0 |
| 22.0 | 23.0 | 24.0 | 25.0 | 26.0 | 27.0 | 28.0 | 29.0 |
| 30.0 | 31.0 | 32.0 | 35.0 | 36.0 | 37.0 | 38.0 | 39.0 |
| 40.0 | 41.0 | 42.826 | 45.0 | 50.0 | 52.0 | 55.0 | 60.0 |
| 62.0 | 65.0 | 70.0 | 75.0 | 80.0 | 90.0 | - | - |
| We have more than 100 kinds of diameter for your choice. | |||||||
Our factory specializes in manufacturing a series of Tungsten Carbide products such as:
• Saw Tips
• Buttons for Rock Bits
• Inserts for Road Milling
• Coal Cutter Picks
• Snow Plow Blades
• Mining Tools Inserts
• Round Rods & Tubes
• Rings, Strips and Plates
• Debarking Bits
• Brazed Inserts or Tips
• Pins & Tire Studs
• Wear-Parts & Circular Cutters
