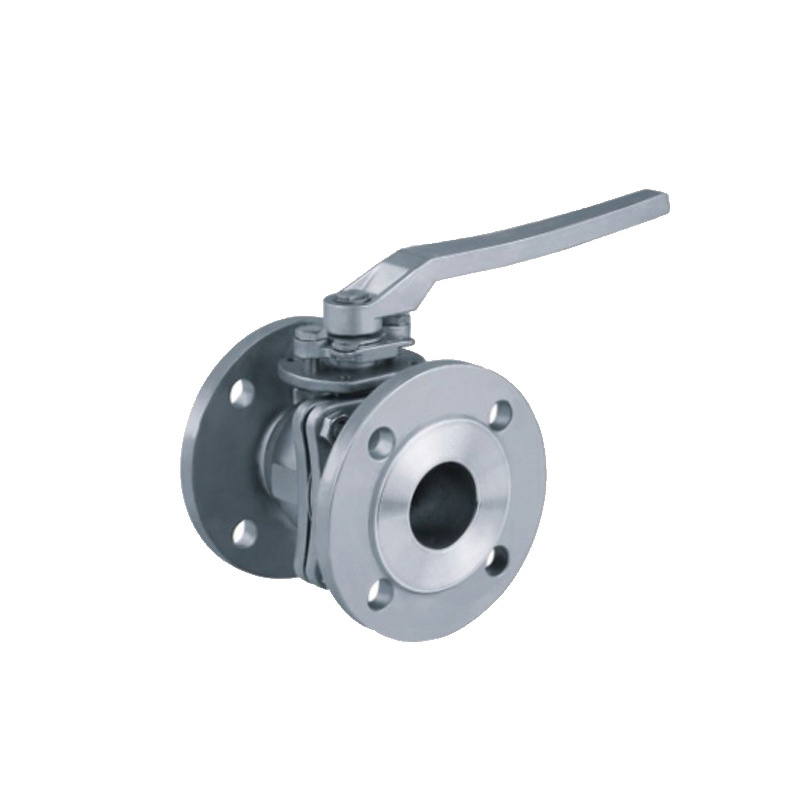

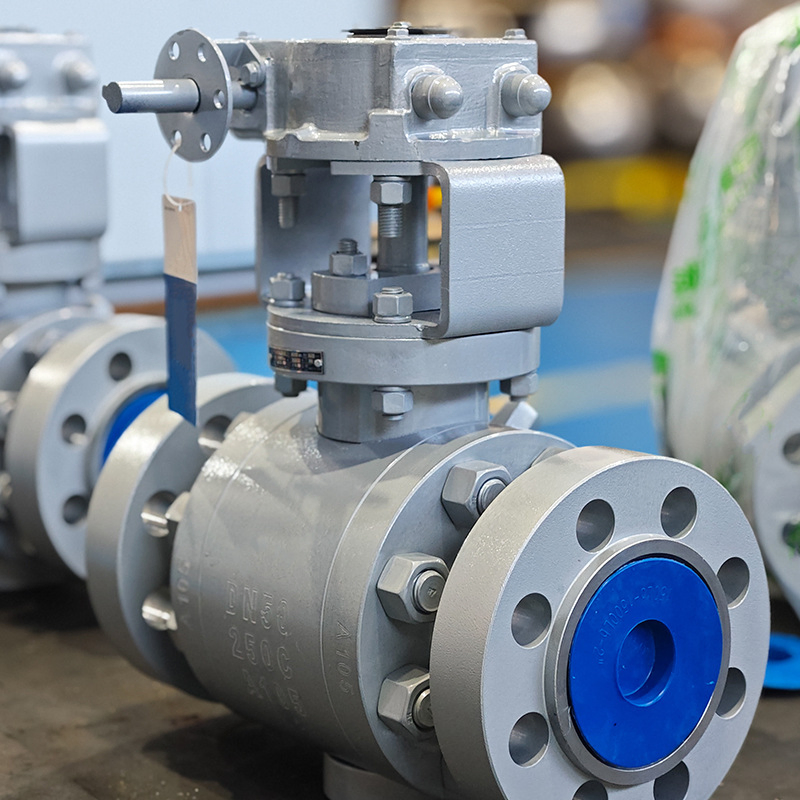

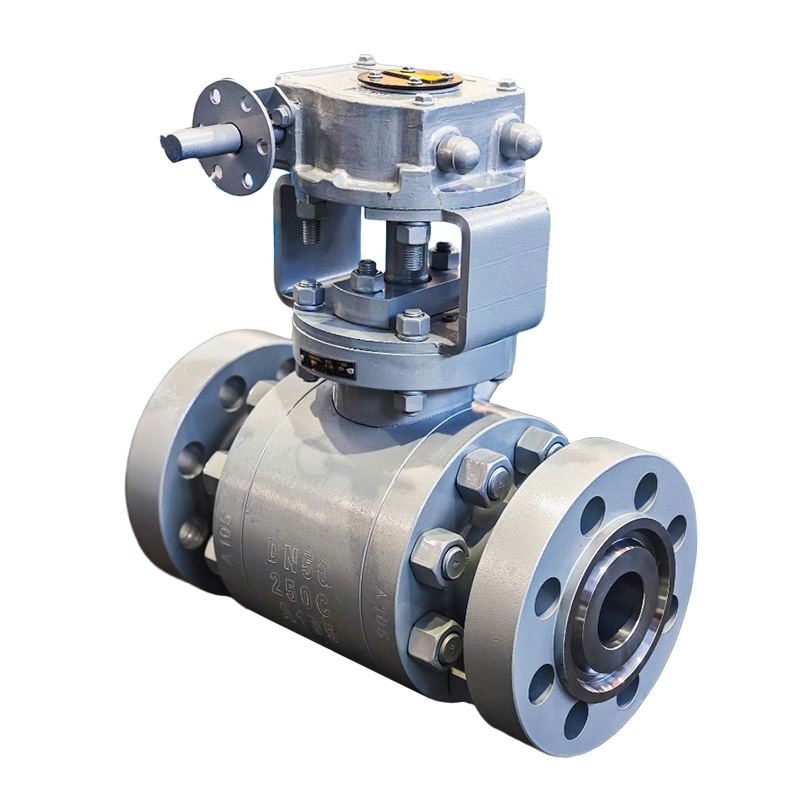

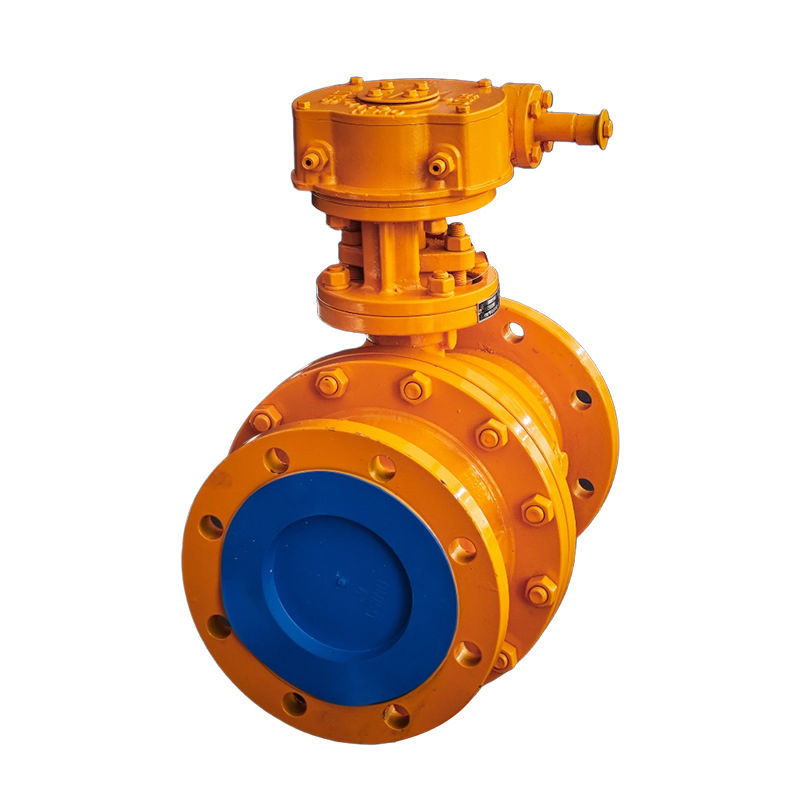

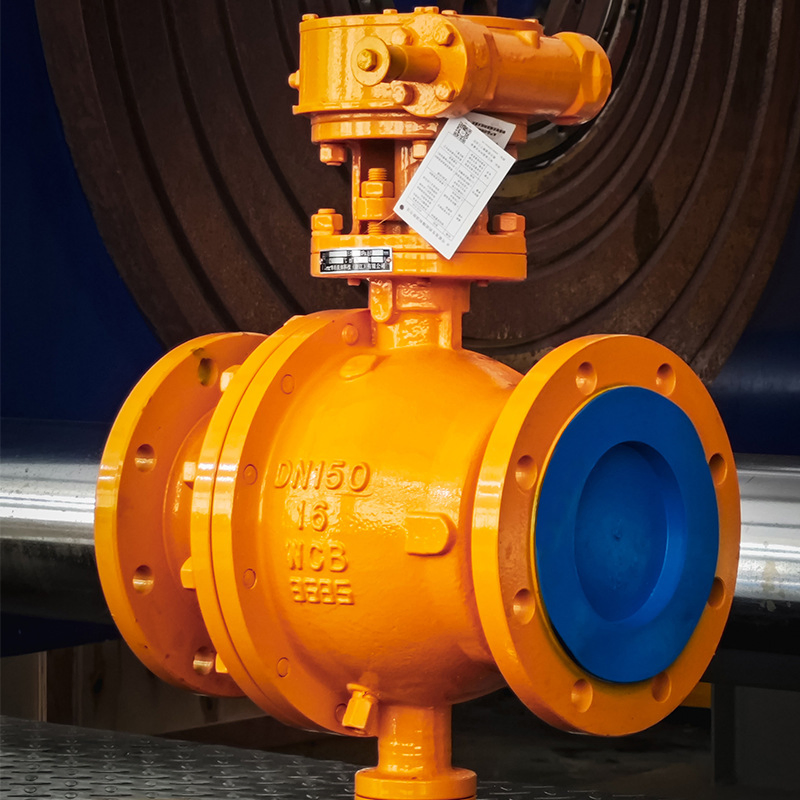

Tungsten Carbide Coated Ball Valve for Slurry Service

Basic Information

Model NO.

Valve

Type

Straight-through

Material

Carbon Steel

Connection Form

Flange

Pressure

High Temperature

Actuator

Electric

Standard

ANSI

Application

Industrial & Water Usage

Capacity

10000 Tons/Year

Certificate

UL/FM, ISO, CE, API

Product Description

24inch Class 600 Carbon Steel Flange Valve

Our 24" 600LB carbon steel flanged valve is designed for high-pressure, large-diameter pipeline systems. It offers outstanding durability, excellent sealing performance, and easy operation under extreme working conditions. Made from ASTM A216 WCB carbon steel, it features a solid or flexible wedge, rising stem design, metal-to-metal sealing, and heavy-duty gear operator. With compliance to API 600 and API 598 standards, this valve ensures reliable shut-off performance and long service life in oil, gas, power, and industrial applications.

Key Applications

Widely used in industries requiring reliable shut-off and high pressure resistance:

Oil & Gas: Pipelines, refining plants, offshore platforms, LNG terminals.
Power Generation: Thermal, nuclear, and combined cycle power stations.
Water Treatment: Municipal supply, sewage treatment, and desalination.
Industrial: Petrochemical, mining, steel, and pulp industries.

Technical Specification

Specification Item	Description

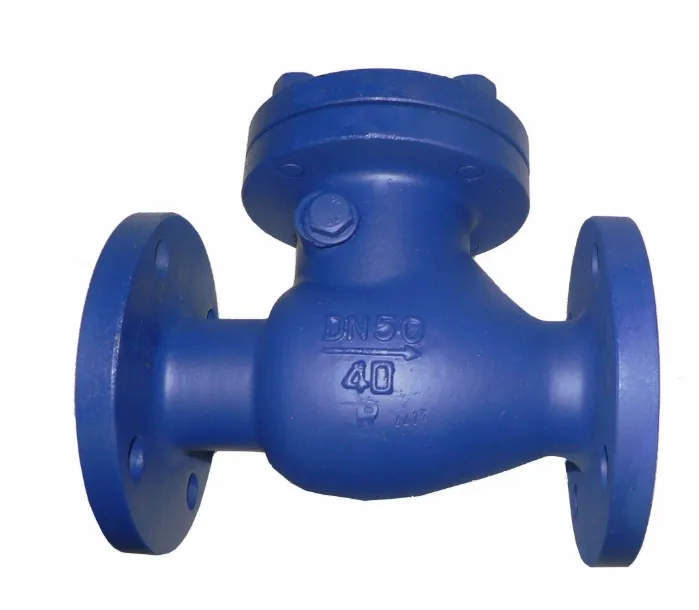

Product Type	Wedge Type Check Valve / Gate Valve
Design Standard	API 600 / ASME B16.34
Nominal Diameter	DN50 - DN1200 (2" - 48")
Pressure Rating	Class 150 / 300 / 600, PN16 - PN40
Body Material	Carbon Steel (A216 WCB), Stainless Steel, Alloy Steel
Connection Type	Flanged (RF/RTJ), Butt Weld (BW)
Sealing Surface	Metal to Metal (Stellite/13Cr)
Working Temperature	-29°C to +425°C
Testing Standard	API 598
Actuation	Handwheel / Gearbox / Electric / Pneumatic

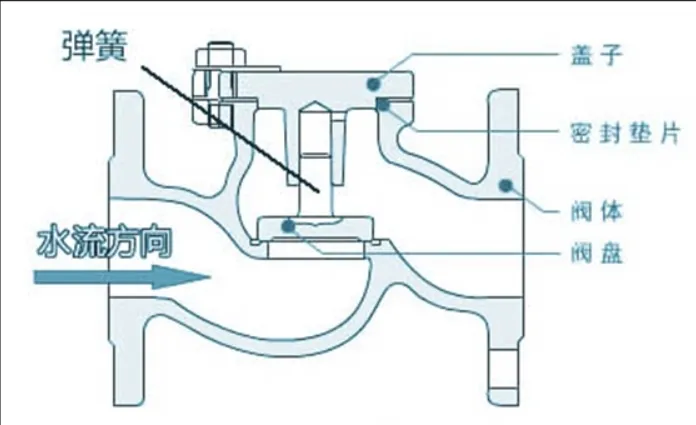

*Custom configurations available upon request. Detailed CAD drawings and dimensional diagrams are available upon inquiry.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts.

Training: On-site or remote operation and maintenance training.

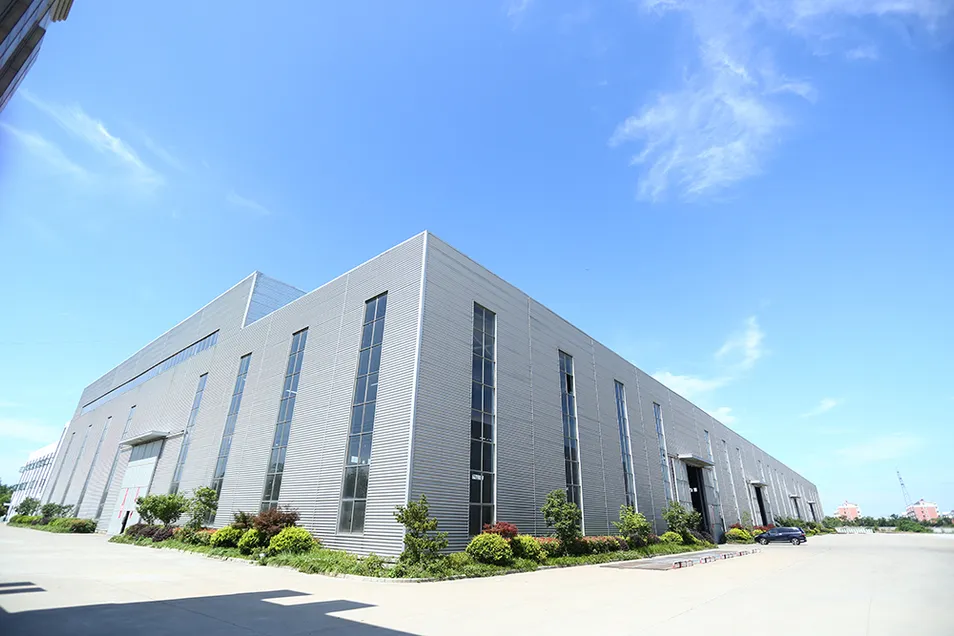

Our Capabilities

We provide a diverse range of products including Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, and Copper. Our services include laser cutting, welded pipe processing, flange fastener processing, and bar forging.

Why Choose Us?

15+ years of valve manufacturing experience
API 6D / ISO / CE certified factory
Strict quality control, 100% tested
OEM/ODM customization supported

Other Products

Ball Valves & Globe Valves
Butterfly & Check Valves
Strainers & Forged Steel Valves
Low Temperature & Custom Valves

Frequently Asked Questions

What certifications and production standards do your valves follow?

Our manufacturing processes are ISO 9001, CE, API 600, and API 6D certified. All products are built to international standards including API, ASME, and DIN.

Can you provide customized services?

Yes, we support full OEM/ODM services. We can customize the material, size, color, and logo based on your technical drawings and project requirements.

What is the typical delivery time for an order?

Standard valves usually ship within 7–15 days. For large-scale or customized orders, the lead time is typically 20–35 days depending on complexity.

Do you perform pressure testing on all units?

Absolutely. All valves undergo 100% pressure and leakage testing according to API 598 standards before leaving our facility.

What is the MOQ for a trial order?

We accept small trial orders to help customers verify quality. The specific MOQ can be discussed based on the valve type and specifications.

What is your standard warranty policy?

We provide a 12-month warranty from the date of shipment, along with lifetime technical support for all our industrial valve products.
