RPZ Valve
RPZ Valve

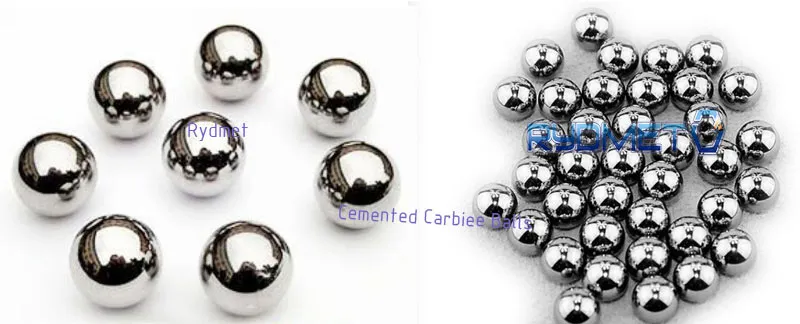

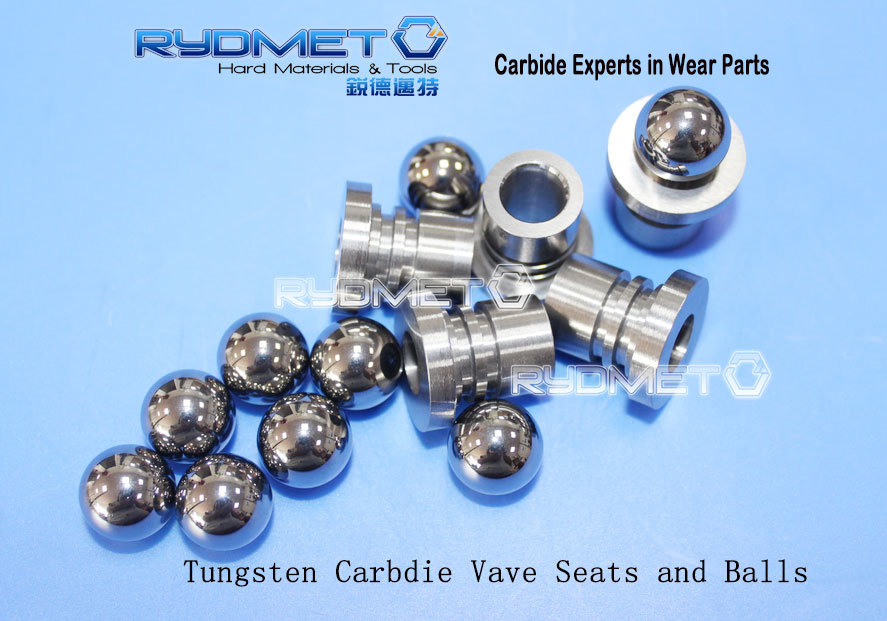

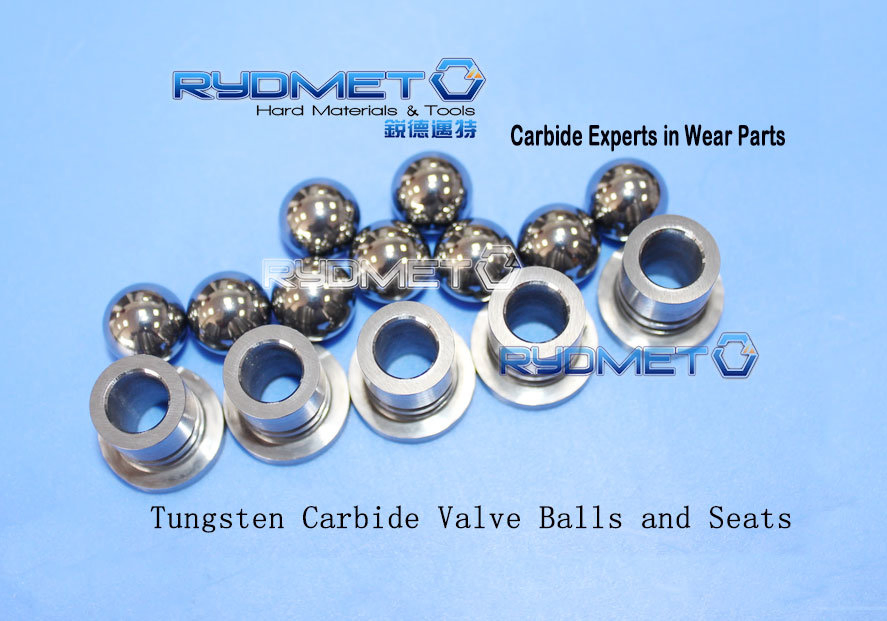

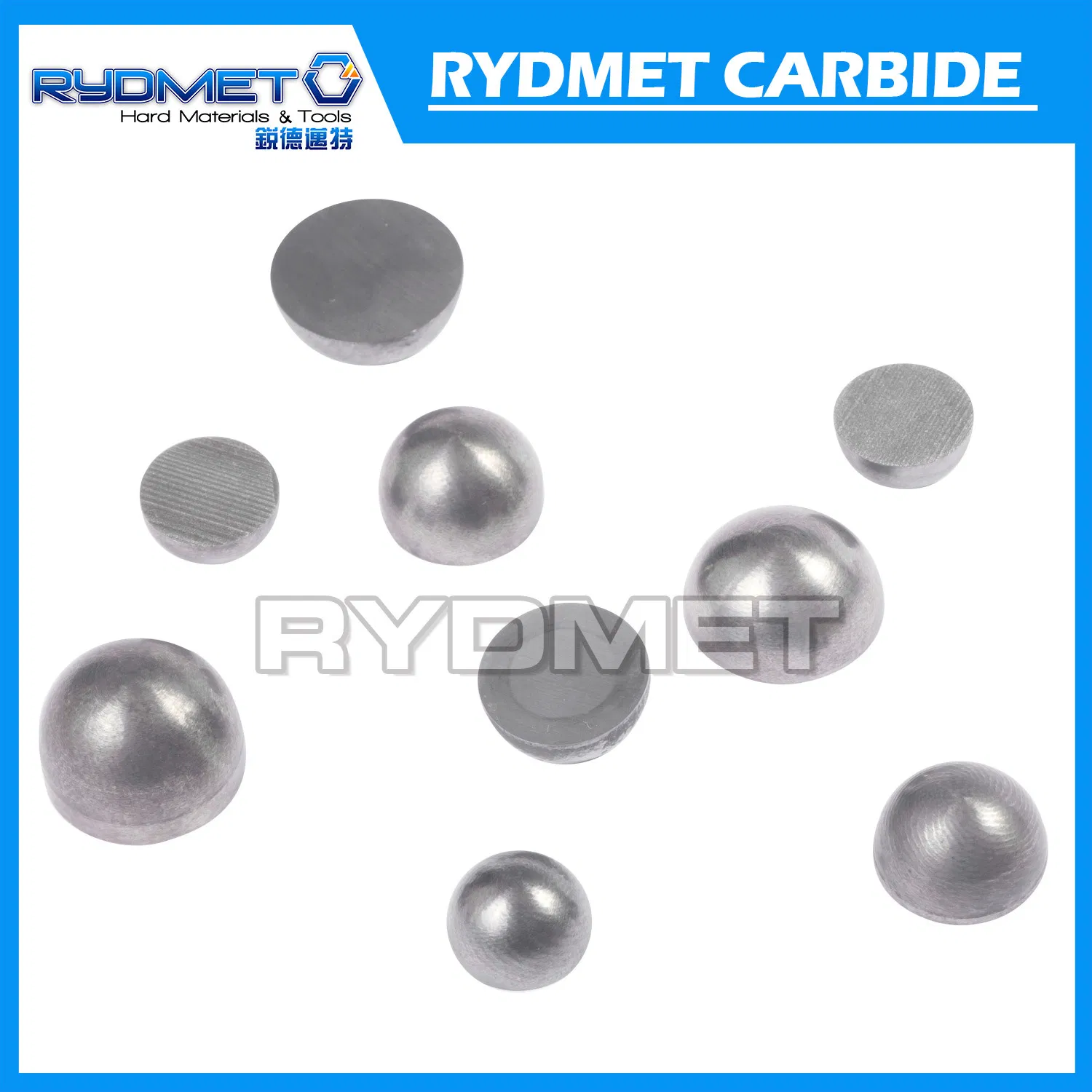

Our cemented carbide Valve Parts (Seats, Balls, Plugs, etc.) are designed for the valve industry to provide outstanding material performance in corrosive and abrasive environments. We utilize Nickel-Bonded, Cobalt-Bonded, or mixed binder grades to ensure the right fit for specific fluid handling applications. Our engineers provide expert guidance to select the optimal grade for your specific environmental challenges.
| Grade Code | Binder Content & Type | Hardness (Ra) | Hardness (HV30) | Density (g/cm³) | TRS (MPa) | Grain Size |
|---|---|---|---|---|---|---|
| RD06X | 6% Co | 91.5 | 1530 | 14.95 | 2,300 | Fine |
| RD08X | 8% Co | 90.8 | 1450 | 14.75 | 2,500 | Fine |
| RD15X | 15% Co | 88.9 | 1250 | 13.9 | 2,700 | Fine |
| RD06M | 6% Co | 90.3 | 1380 | 14.95 | 2,500 | Medium |
| RD08M | 8% Co | 89.5 | 1300 | 14.75 | 2,600 | Medium |
| RD011M | 11% Co | 89.2 | 1270 | 14.3 | 2,650 | Medium |
| RD06N | 6% Ni | 90 | 1350 | 14.9 | 1,800 | Medium |
| RD08N | 8% Ni | 88.5 | 1700 | 14.7 | 1,900 | Medium |
| RD12N | 12% Ni | 87.5 | 1110 | 14.1 | 1,950 | Medium |
| RD06UF | 6% Co | 94 | 2010 | 14.9 | 3,800 | Ultra-fine |
** Custom grades are available upon request to meet specific application needs.
