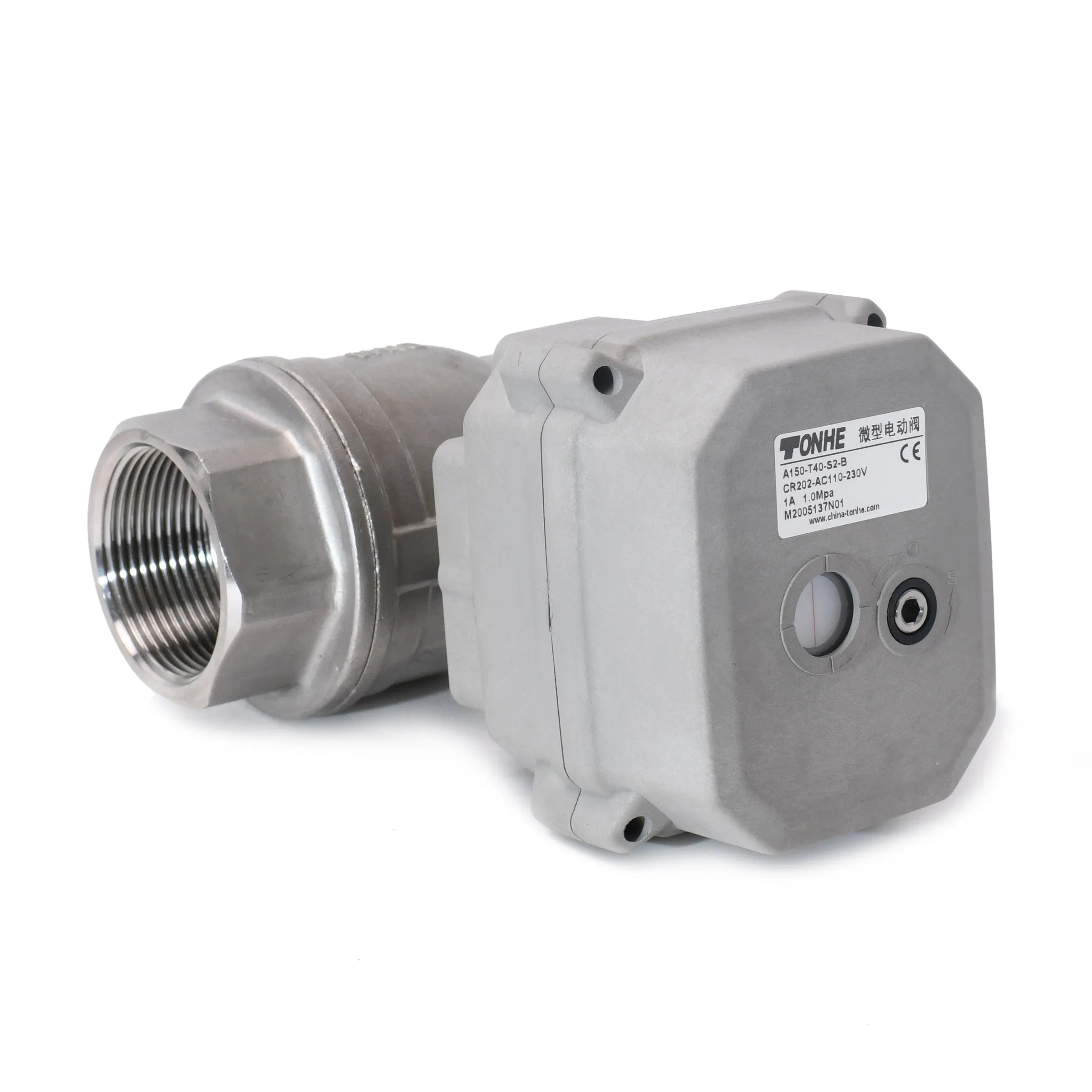

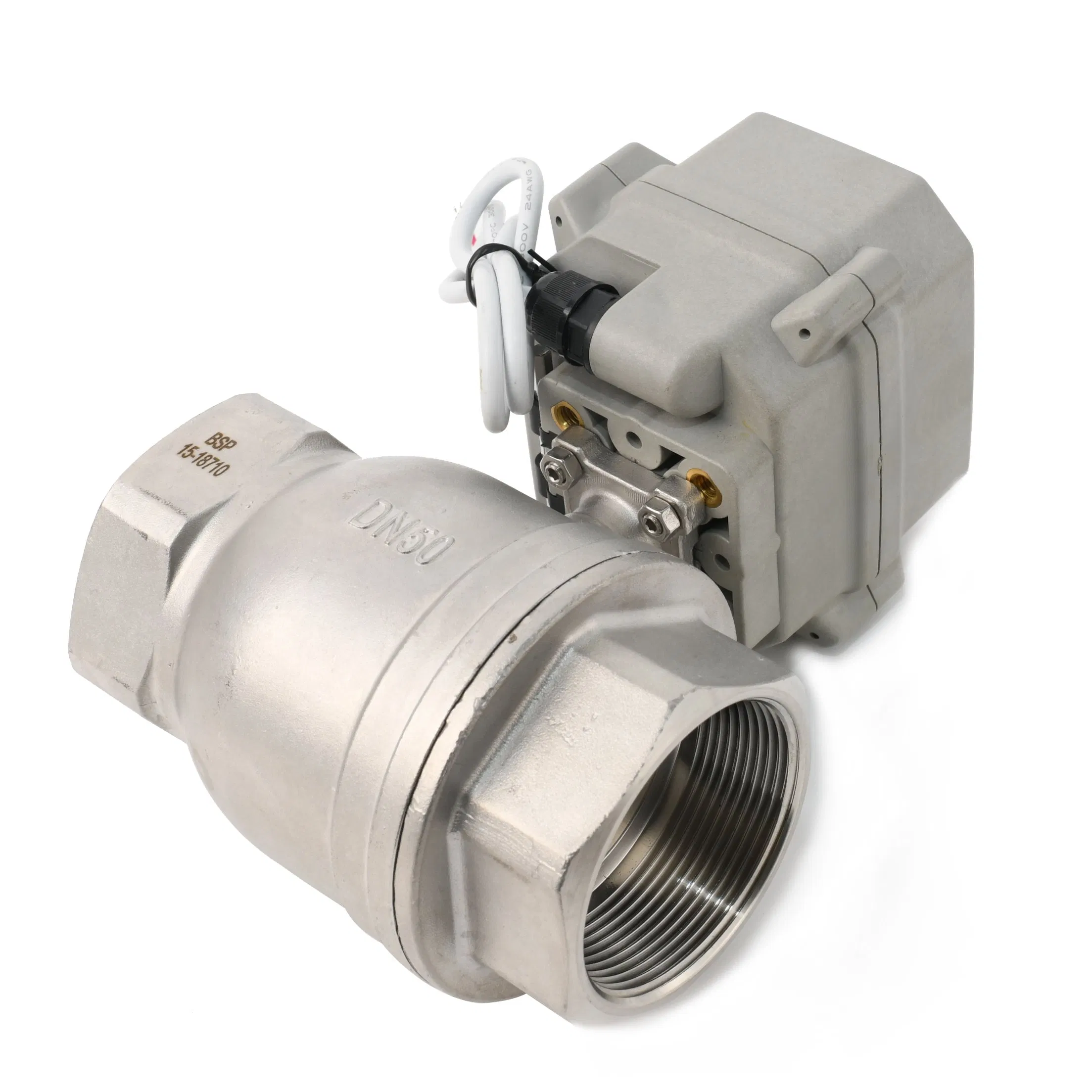

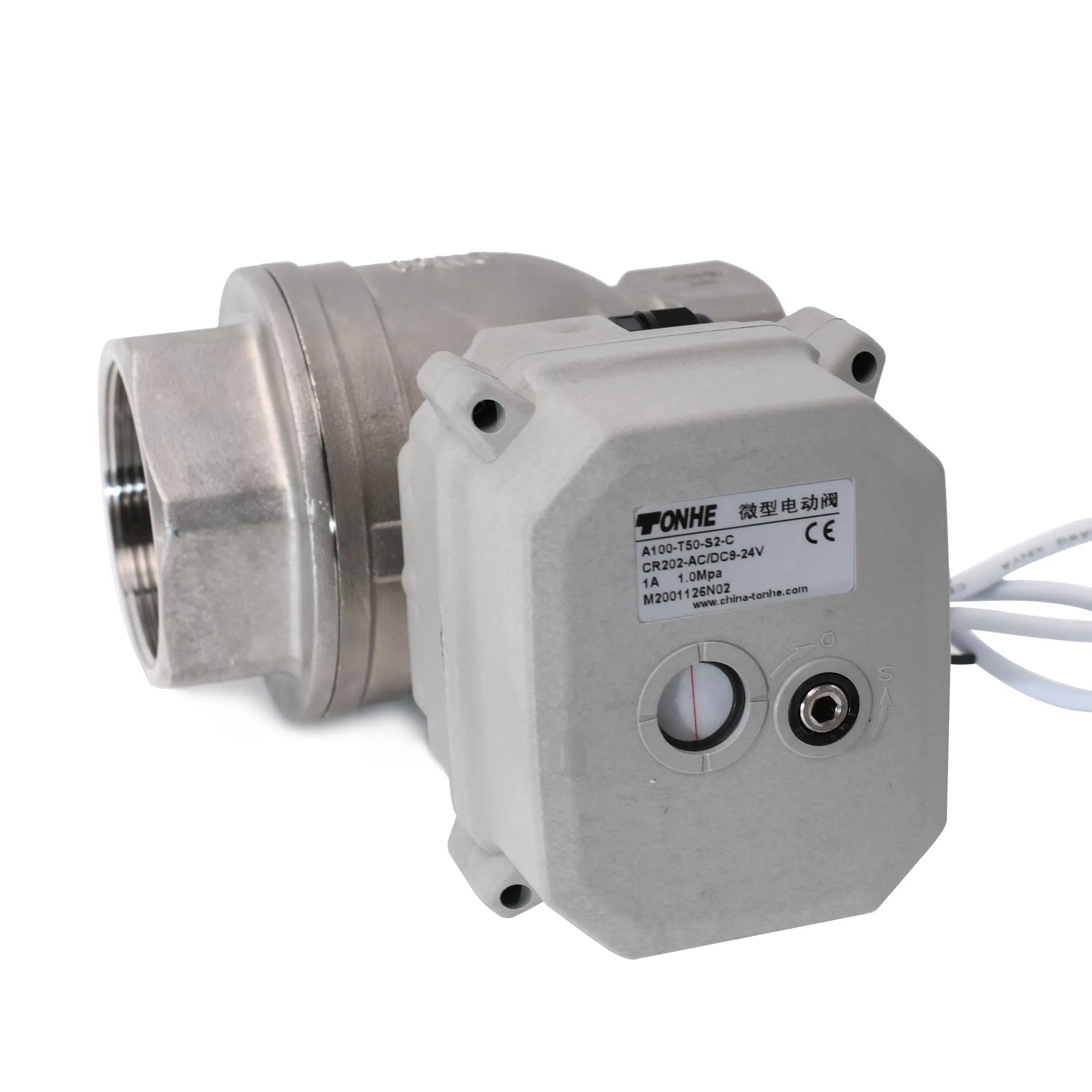

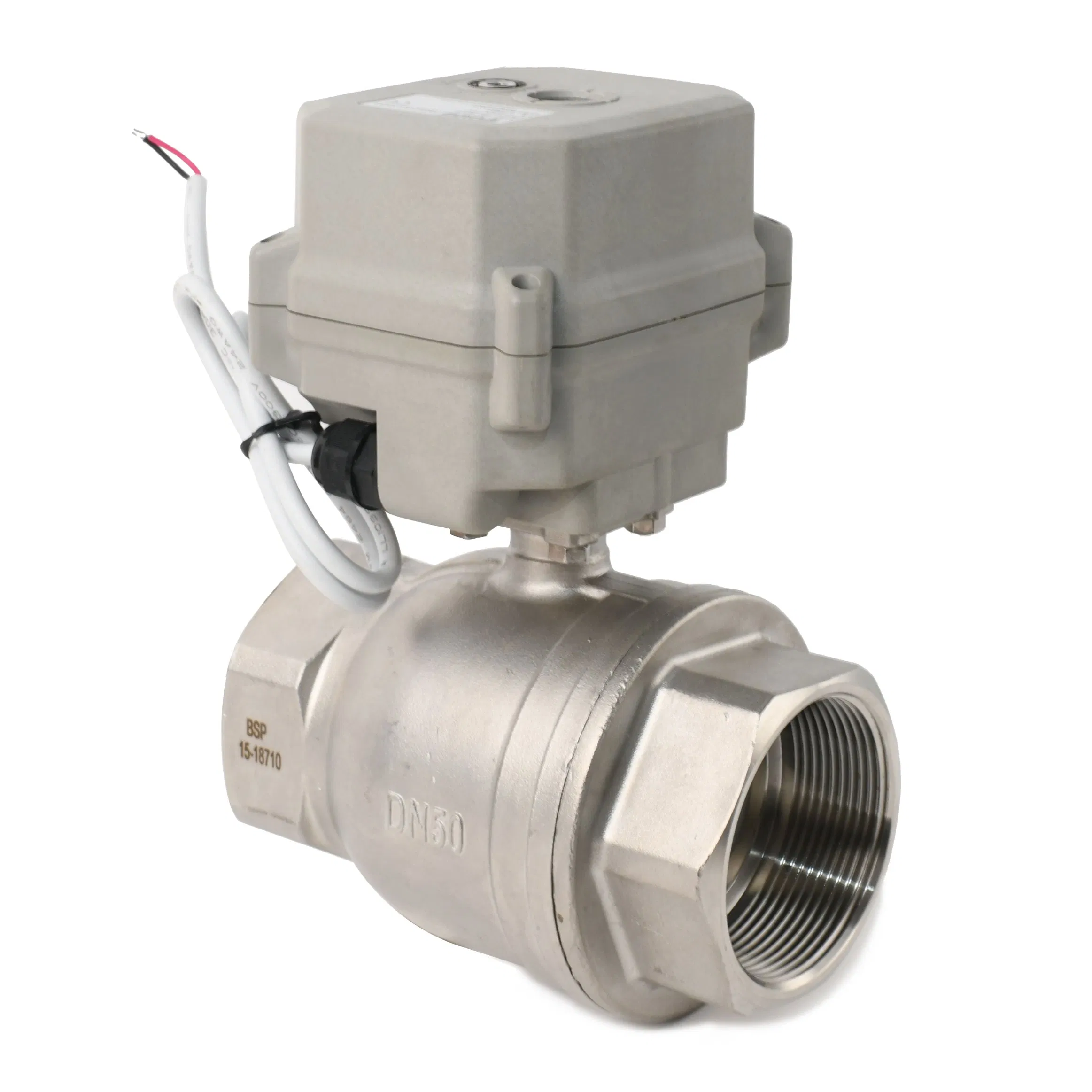

2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
1 / 5
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve
2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve

2 Way DN40 1-1/2'' DC12V Stainles Steel 316 Motorized Water Ball Alve

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
A150-T40-S2-B
Connection Form
Thread
Driving Mode
Electric
Nominal Pressure
1.0MPa
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Motorized Control Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Enclosure
IP67
Actuator Torque
10n.M
Certification
SGS ISO9000, CE
Working Time
12s
Working Voltage
DC12V/DC24V/AC110-230VAC/DC9-35V
Transport Package
Carton
Specification
1 1/2''
Origin
China
HS Code
8537101190
Production Capacity
5000/Month
💡 Product Overview

2 way NSF61 electric on off valve for water treatment, different wiring control, DC12V/24V/AC/DC110V-230V, IP67, CE, NSF61, 1.5 Mpa

Design Features:

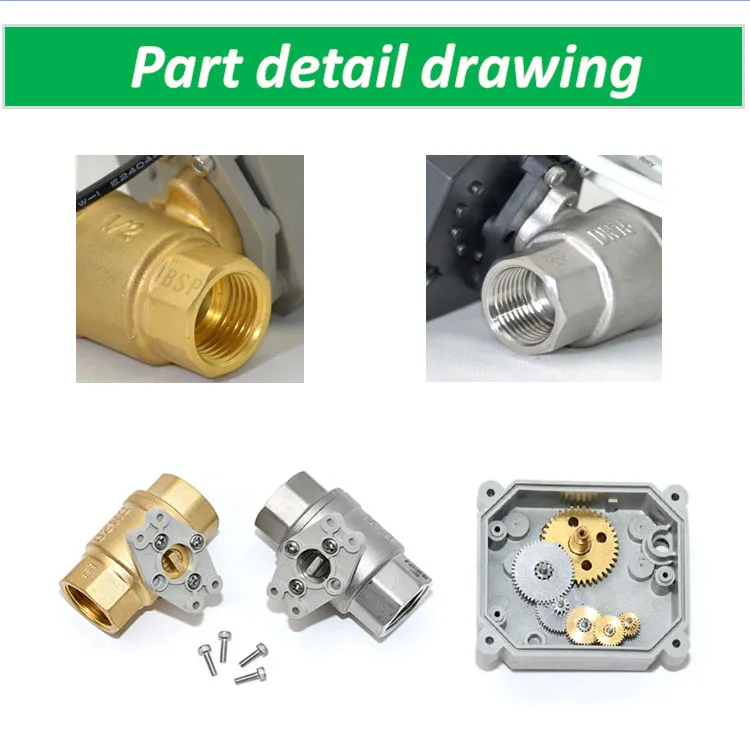

  • Metal gear design, high accuracy output torque, especially for multi-channel scaling system.
  • Small size, compact structure.
  • A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unit testing.
  • Good sealing performance.
Applications:

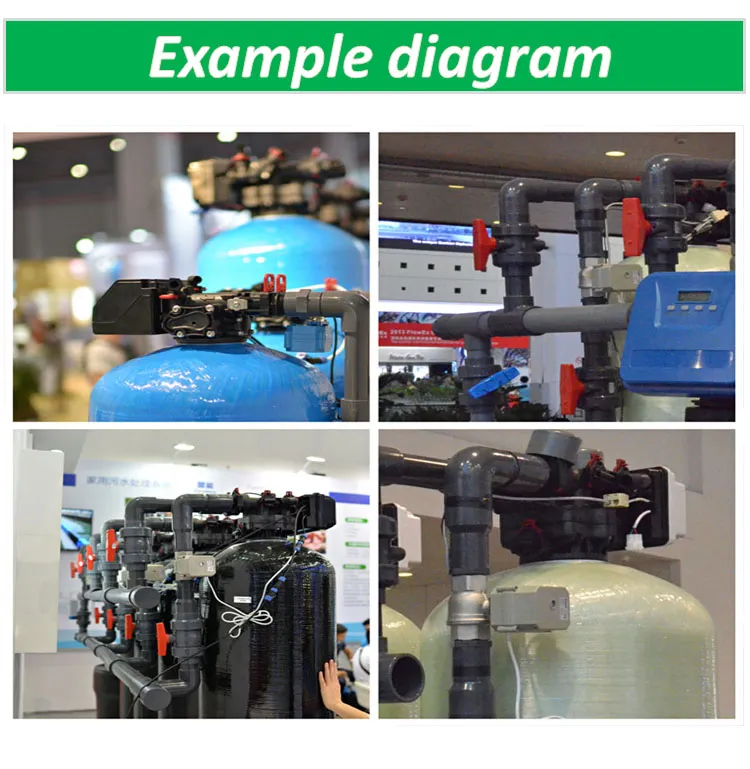

  • IC card water meter, heat meter.
  • Air-conditioning fan coil, fire sprinkler.
  • Solar energy drain valve, high efficiency water-saving.
  • Automatic control systems, university water system, smallscale industrial automation equipment, environmental protection.

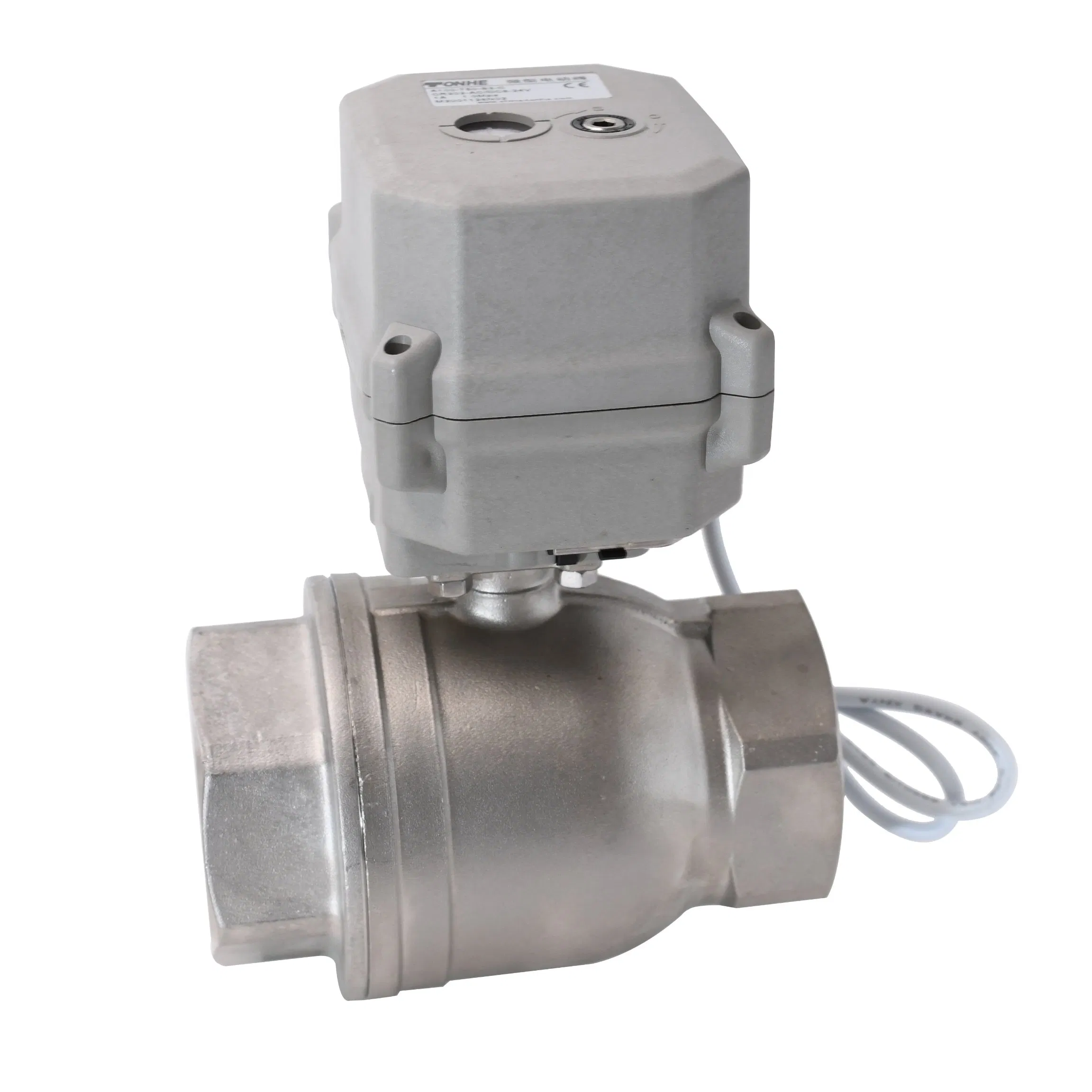

Motorized Water Ball Valve

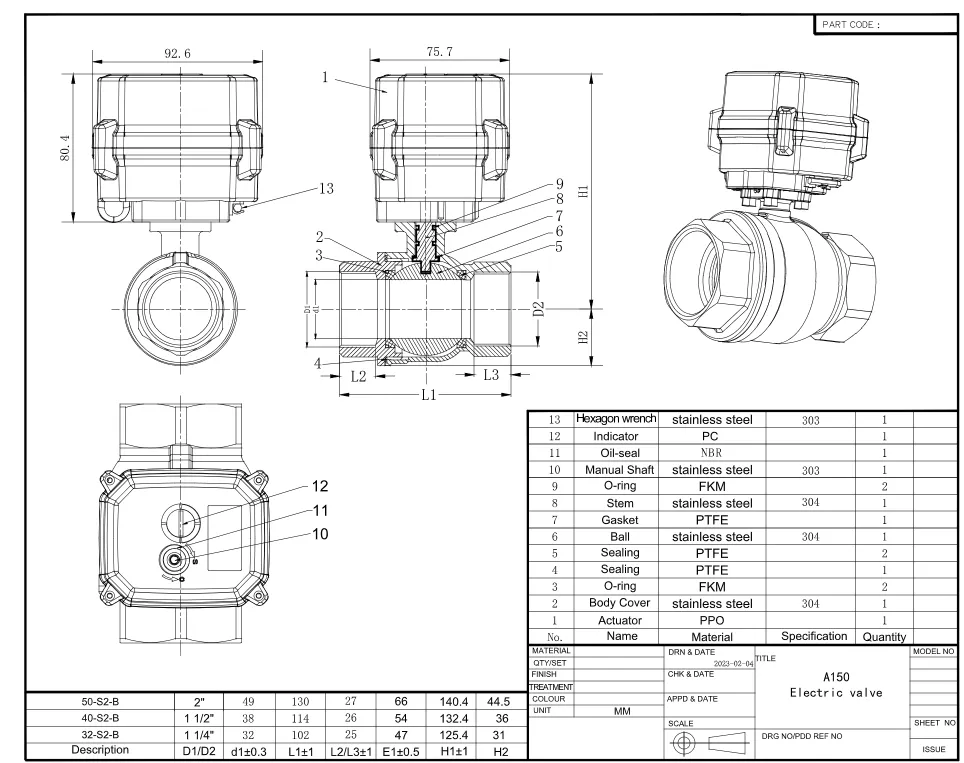

Motorized Water Ball Valve Detail
📊 Technical Parameters
Product specifications1 1/2''
Medium pressure≤ 1.5 MPa
Internal diameter50 mm
Circulation mediumfluid
Rated voltage110v-230VAC/DC12V/DC24V (for selection)
Working current≤ 500MA
Open/close time≤ 13 S
Extra long time100000 times
Body materialss304 / ss316
Actuator materialEngineering Plastics
AirtightPressure 0.20Pa, maintaining 15s, Spillage ≤ 0.122ml/s
Actuator rotation90°
Environment temperature-15℃ to 50℃
Liquid temperature2℃ to 90℃
Manual overrideNo
Wiring ControlCR201, CR202, CR303, CR401/CR501, CR502, CR704
Frequently Asked Questions
What are the available voltage options for this electric valve?
The valve supports multiple voltage configurations including DC12V, DC24V, and a wide-range AC110V-230V to suit different industrial and household requirements.
Is the valve suitable for outdoor or wet environments?
Yes, the actuator is designed with an IP67 enclosure rating, providing excellent protection against dust and water ingress, making it suitable for various environments.
What is the maximum pressure this motorized ball valve can handle?
The valve is rated for a nominal pressure of 1.0MPa, with a maximum medium pressure capability of up to 1.5 MPa.
How long does it take for the valve to fully open or close?
The typical opening or closing time is approximately 12 to 13 seconds, ensuring smooth operation and preventing water hammer effects.
What materials are used in the construction of the valve body?
The valve body is constructed from high-quality stainless steel (SS304 or SS316), offering excellent durability and corrosion resistance for water treatment applications.
Does this valve have an NSF certification?
Yes, this electric valve is NSF61 certified, ensuring it meets the strict health and safety standards for components that come into contact with potable water.
