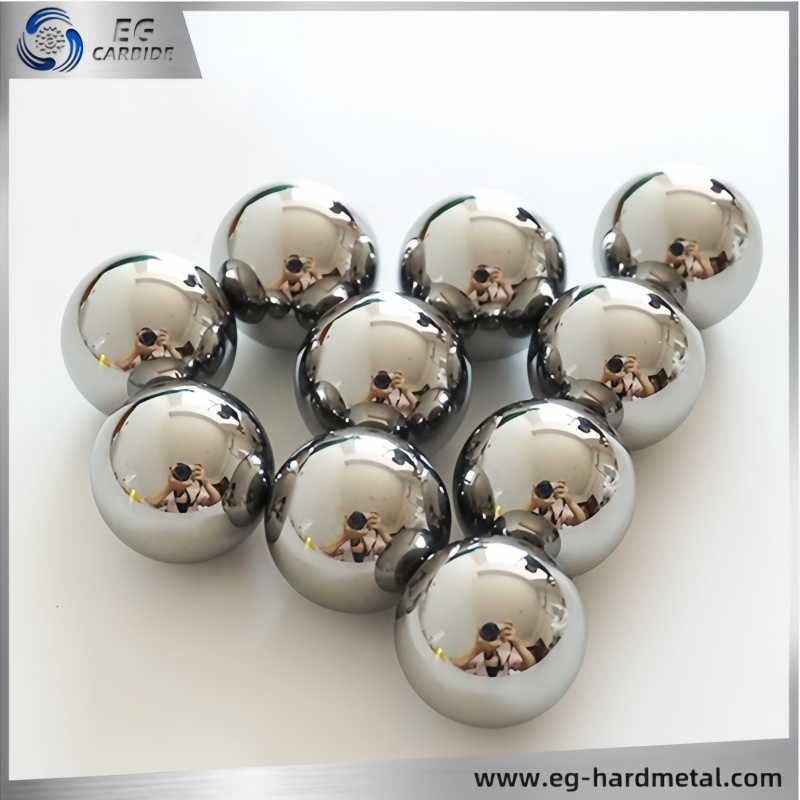

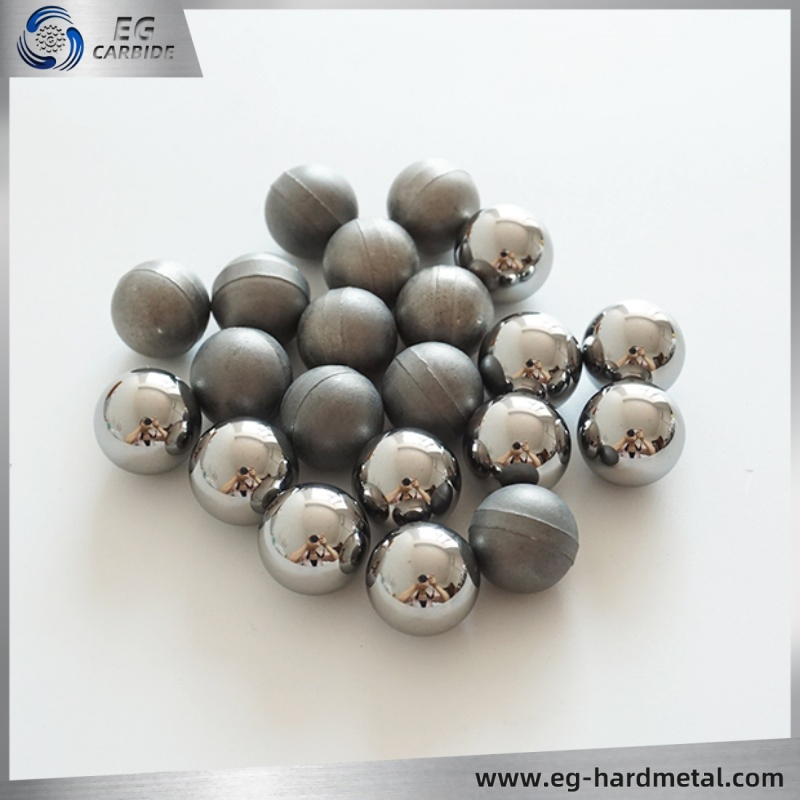

Tungsten Carbide Valve Bearing Balls Grinding Corrosion-Resistan Beading Mill Tc Balls

1 / 5

Tungsten Carbide Valve Bearing Balls Grinding Corrosion-Resistan Beading Mill Tc Balls

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

YG6X

Temperature

High Temperature

Pressure

High Pressure

Material

YG6, YG6X, YG8, YN

Type

Four-Way

Grade

K10/K20/K30/K40/YL10.2/YG6/YG6X/YG8/YG10X

Surface Finishing

Polished and Unpolished

Main Purpose

Bearing Part, Wear Part

Delivery Time

1-2 Weeks

HS Code

8480490000

Capacity

100ton/Year

Packaging & Delivery

Package Size

35.00cm * 25.00cm * 15.00cm

Gross Weight

22.000kg

Transport Package

Carton

Product Description

YG6 YG8 tungsten carbide ball for valve pair & oil industry
1. Diameter: Ø0.3~ø100mm
2. Application: Precision parts punching and drawing, precision bearing, instrument, pen making, spraying machine, water pump, mechanical fittings, sealing valve, brake pump, oil field, hydrochloric acid laboratory, hardness measuring instrument, fishing gear, and other high-end industries.

Our Advantages

100% Virgin raw material
Sufficient stock with high quality
Competitive price and fast delivery

Feature	High hardness, wear resistance, corrosion resistance, and bending resistance. Suitable for harsh environments.
Density	14.9g/cm3
Hardness	≥ 90.5 HRA
Process	Powder preparation → Wet grinding → Mixing → Drying → Pressing → Sintering → Grinding → Packaging.

Product Parameters

Grade	Density (g/cm3)	Hardness (HRA)	T.R.S (MPa)	Grain size (μm)	Composition
YG8	14.65~14.85	≥89.5	≥2320	1.2~2.0	8%CO 92%WC
YG6	14.85~15.05	≥90.0	≥2150	1.2~2.0	6%CO 94%WC

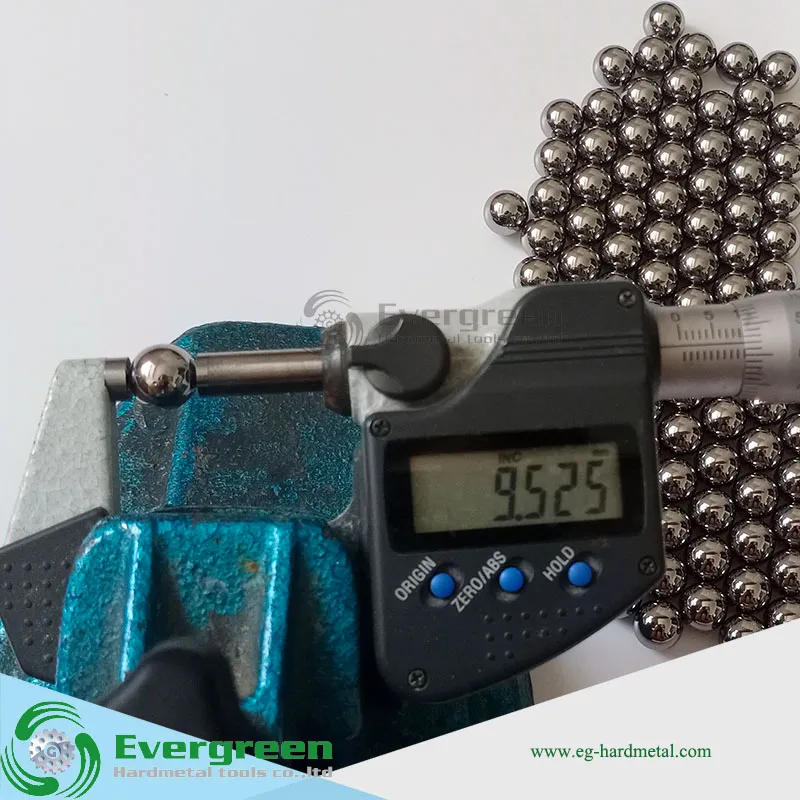

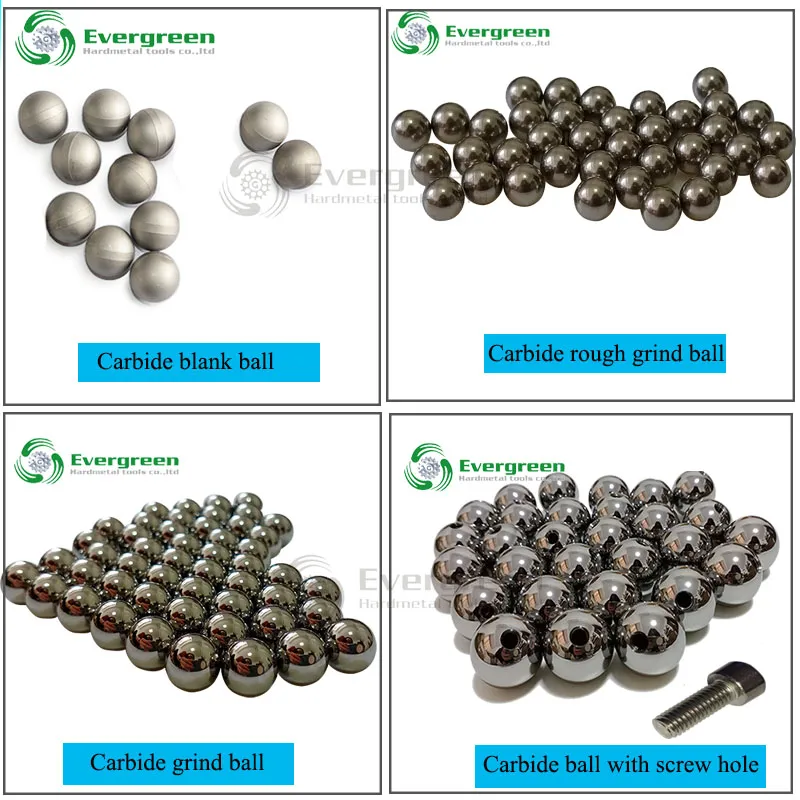

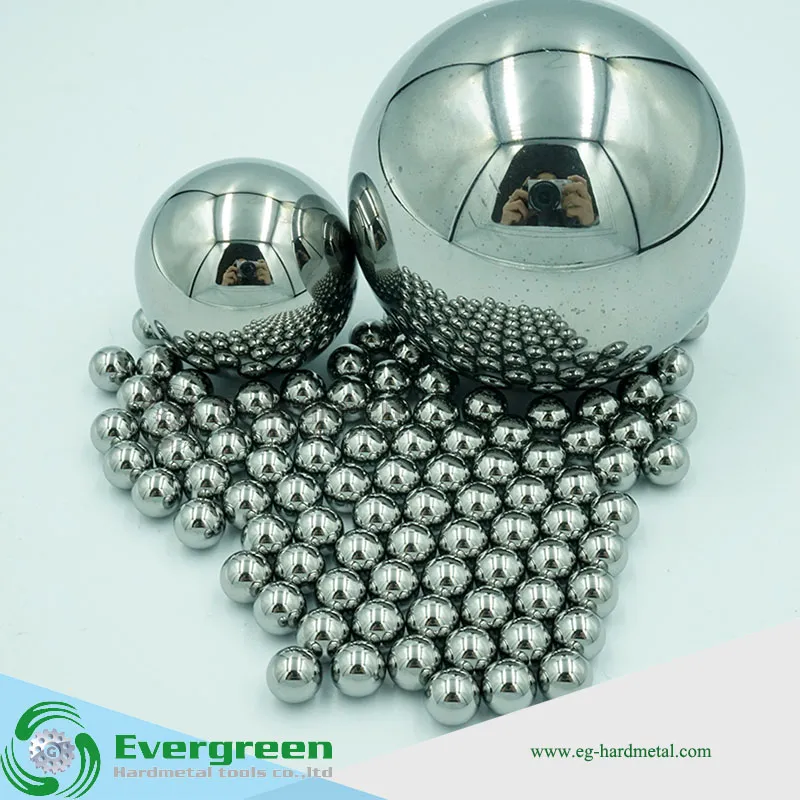

Detailed Photos

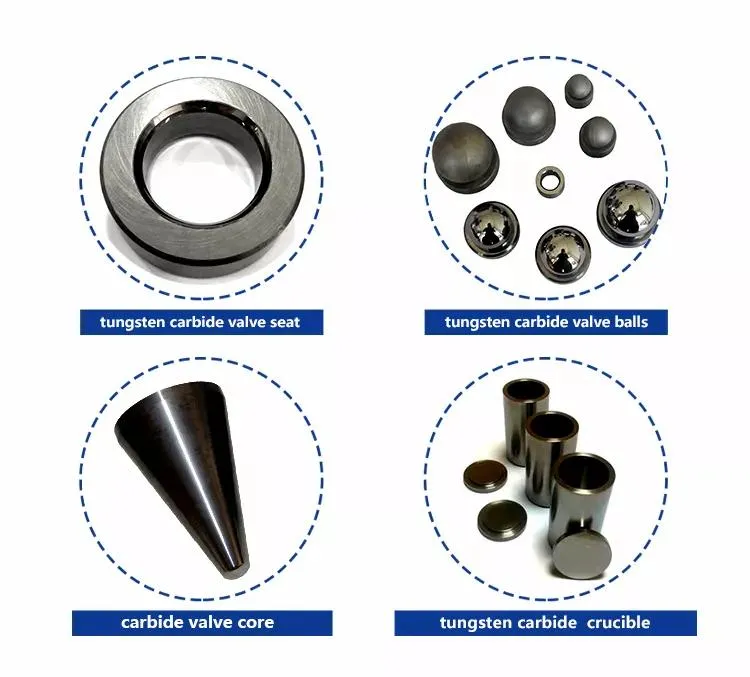

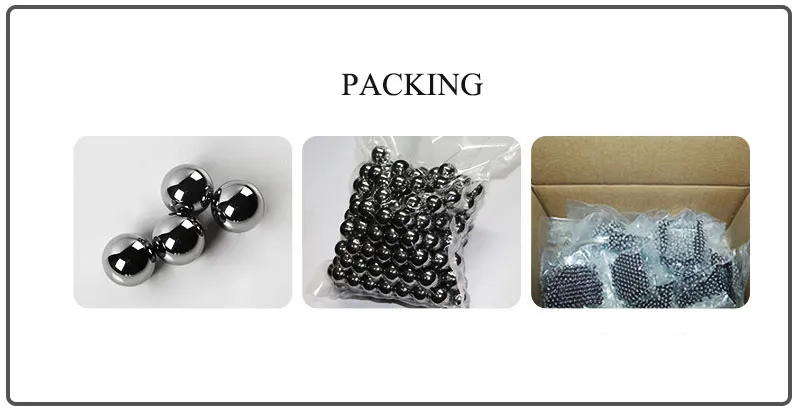

Packaging & Related Products

Frequently Asked Questions

Q1: What grades of tungsten carbide balls do you offer? We offer a wide range of grades including YG6, YG6X, YG8, YN6, YN8, and ISO equivalents like K10, K20, and K30.

Q2: What is the hardness and density of your carbide balls? Our tungsten carbide balls typically feature a hardness of ≥ 90.5 HRA and a density of approximately 14.9g/cm3.

Q3: What are the primary applications for these balls? They are widely used in precision bearings, sealing valves, brake pumps, oil field equipment, and instruments requiring high wear and corrosion resistance.

Q4: Can you provide customized sizes? Yes, we provide diameters ranging from 0.3mm to 100mm, covering various standard and specialized industrial requirements.

Q5: What is the typical lead time for an order? For standard items in stock, the delivery time is usually between 1 to 2 weeks.

Q6: Are the balls made from virgin materials? Yes, we use 100% virgin raw materials to ensure maximum performance, durability, and consistency in our products.
