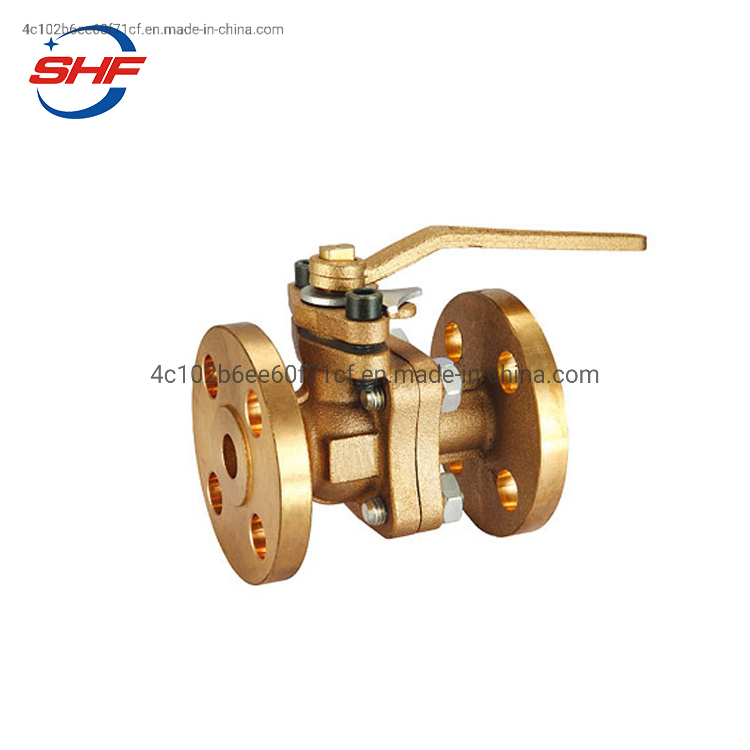

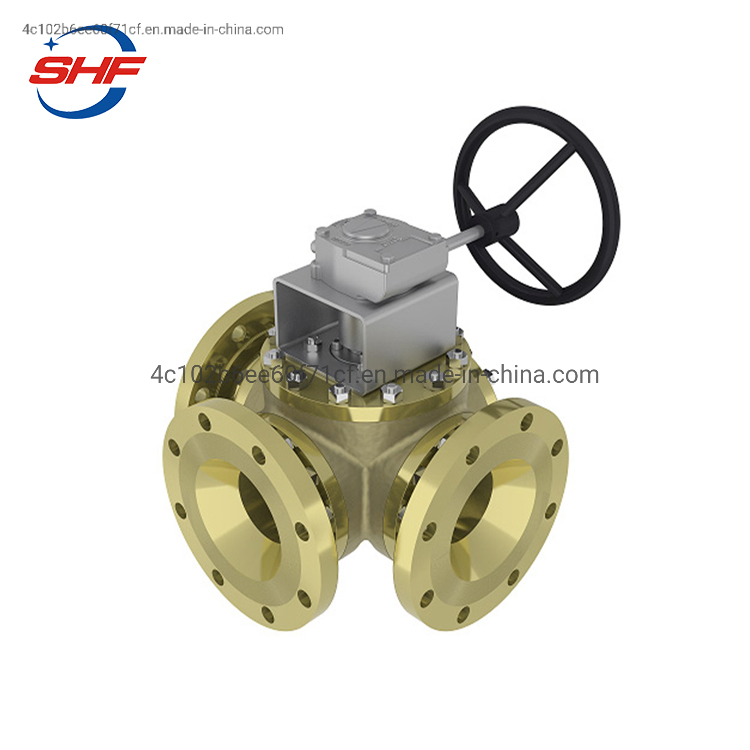

Chinese Manufacture API 6D 3 Way Bronze Ball Balve for Sea Water

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋Basic Information

Model NO.	3Q41F
Connection Form	Flange
Driving Mode	Manual
Nominal Pressure	150lbs, 300lbs; Pn16, Pn40
Channel	Full Bore
Structure	Floating Ball Valve
Type	3 Way Soft Seal Ball Valve
Function	Blow-Down Valve, Switch for Fluid Control
Standard	Mss Sp-110; ANSI, DIN, JIS
Quality Guarantee	18 Months
Size Range	1/2 Inch - 10 Inch (DN15-DN250)

📦Packaging & Delivery

Package Size	70.00cm * 65.00cm * 66.00cm
Gross Weight	350.000kg
Transport Package	Plywood Wooden Case

⚙️Product Description

Material	Bronze, Al bronze (C95800, C83600, C84400, B62)
Flange Standard	ANSI B 16.5; EN1092, DIN2543~DIN2547, AS2129
Testing	MSS SP-110, API 598
Medium	Sea water, oil, liquefied gas, steam
Temperature	Water < 120°C, Oil/Gas/Steam < 220°C
Operation	Lever Handle, Electrical Actuated, Pneumatic Actuated

🏗️Structure Features

3 way L Type or T Type Full Port Design

Split Body and Cast Bronze Construction

Packing Gland Design with Fire Safe Features

Anti-static Design & Blow-out proof stem

Solid Ball Configuration

Handle Options: Locking Handle, T-Handle, Memory Stop

🛠️Main Parts & Materials

Part Name	Material Material
Body / Bonnet	Bronze, Al bronze (C95800, C83600, C84400, B62)
Ball	C37700 (Chrome plated)
Stem / Packing gland	C37700
Seal Ring / Gasket	PTFE, RPTFE, PPL
Handle / Nut	Steel galvanized, SS304

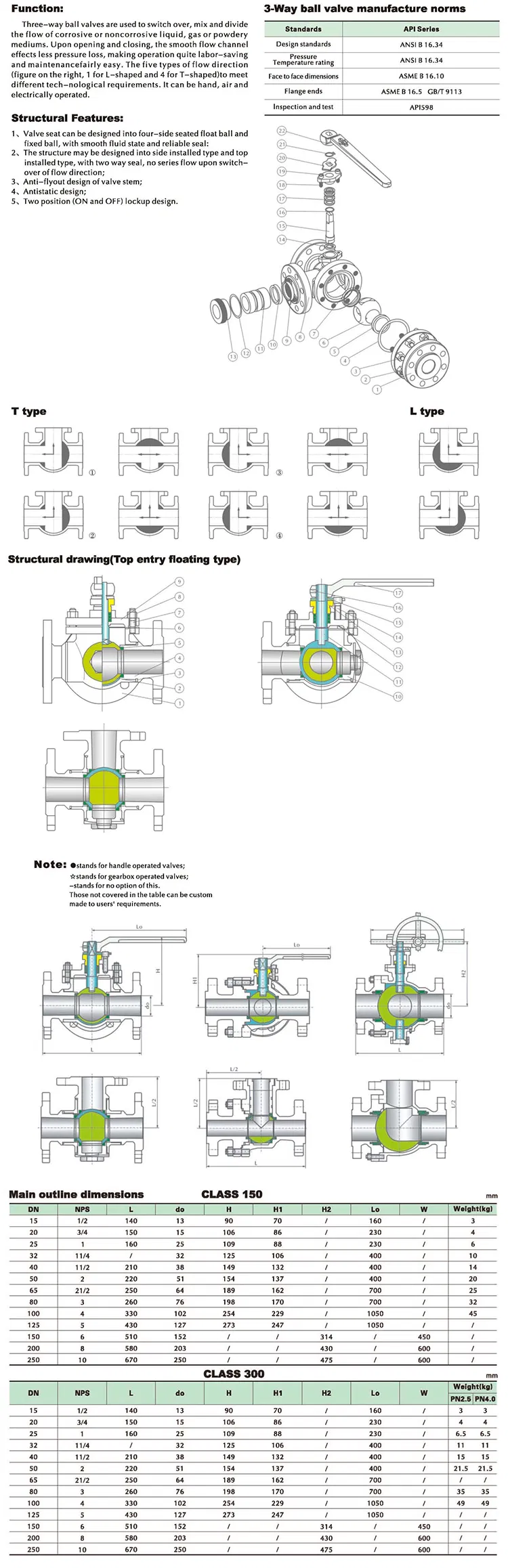

📐Product Drawing

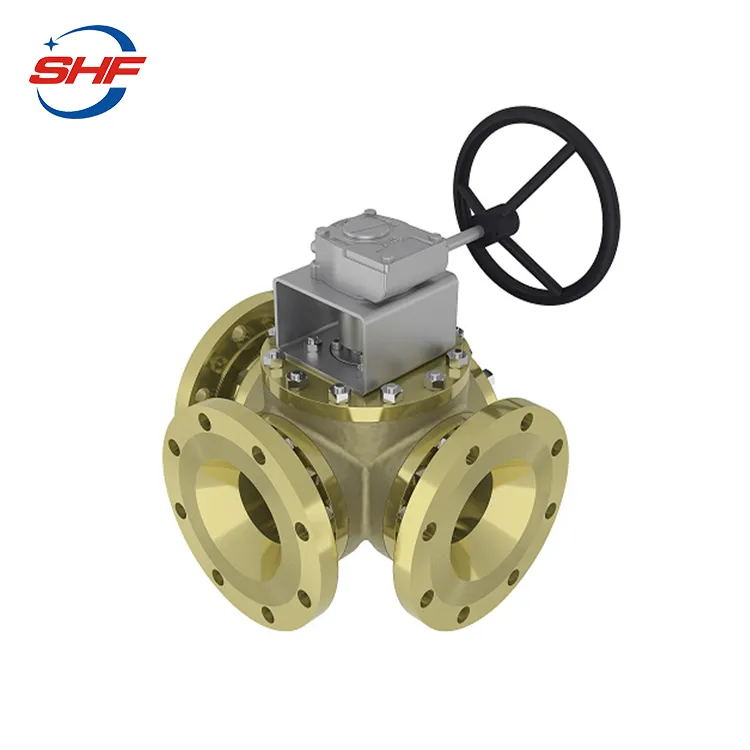

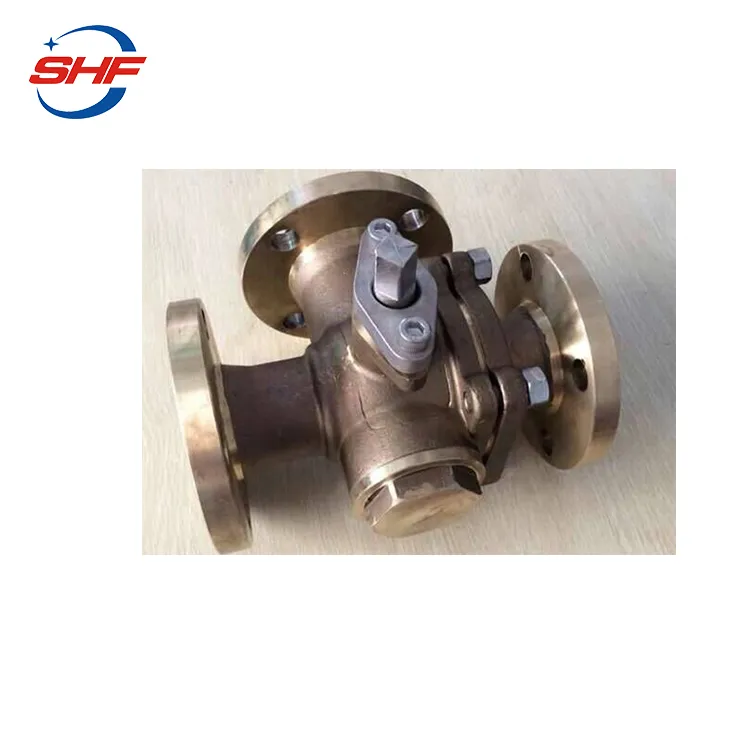

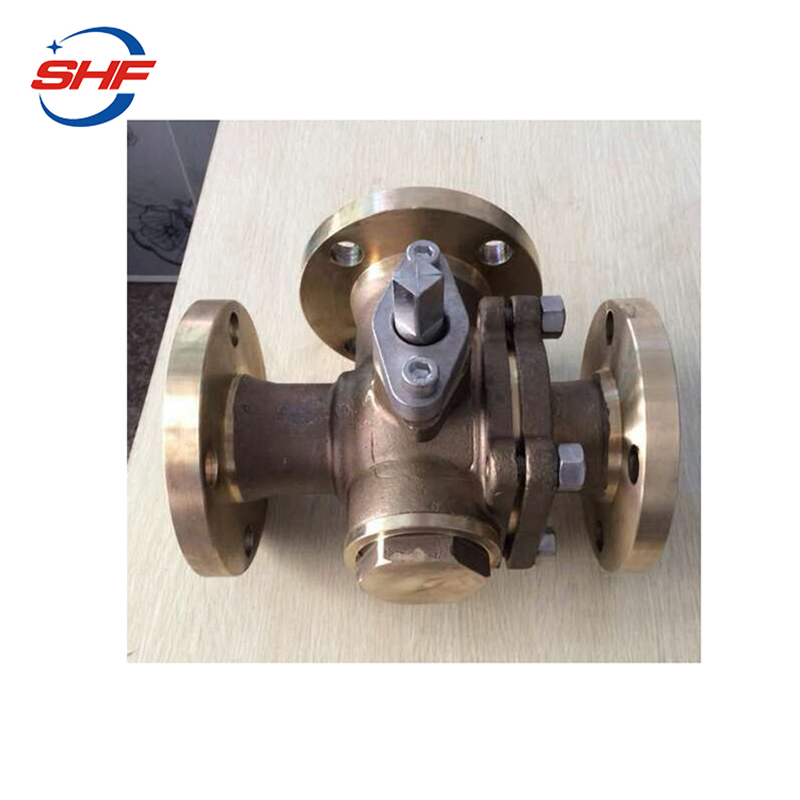

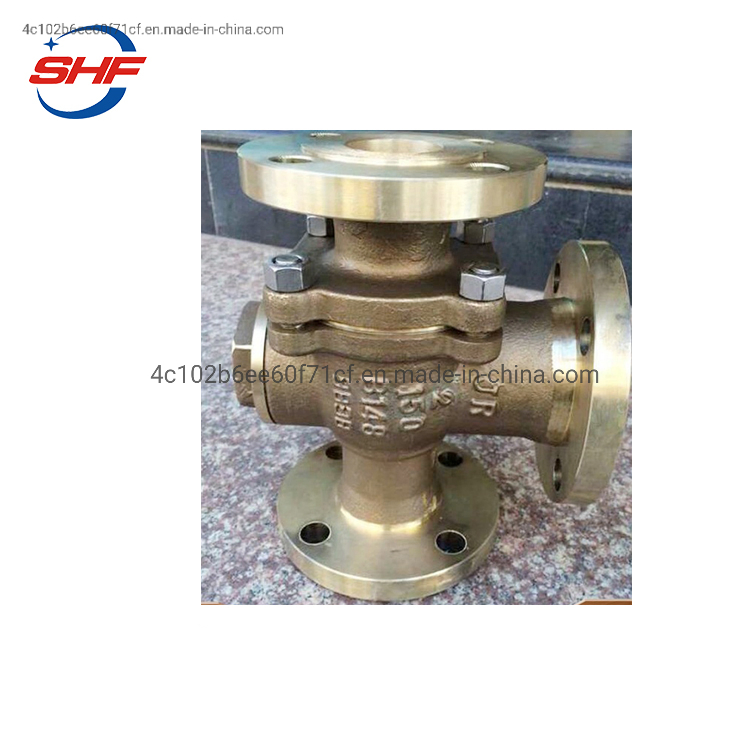

💎Product Display

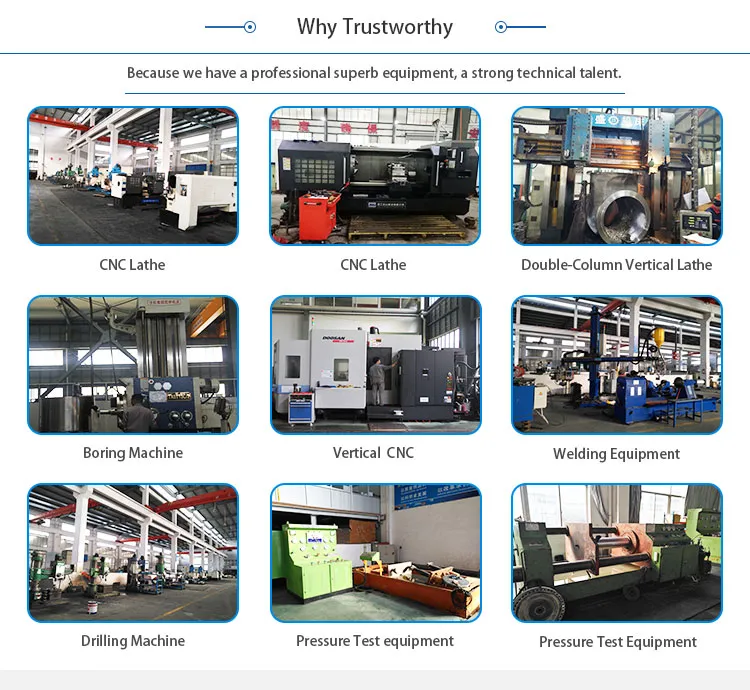

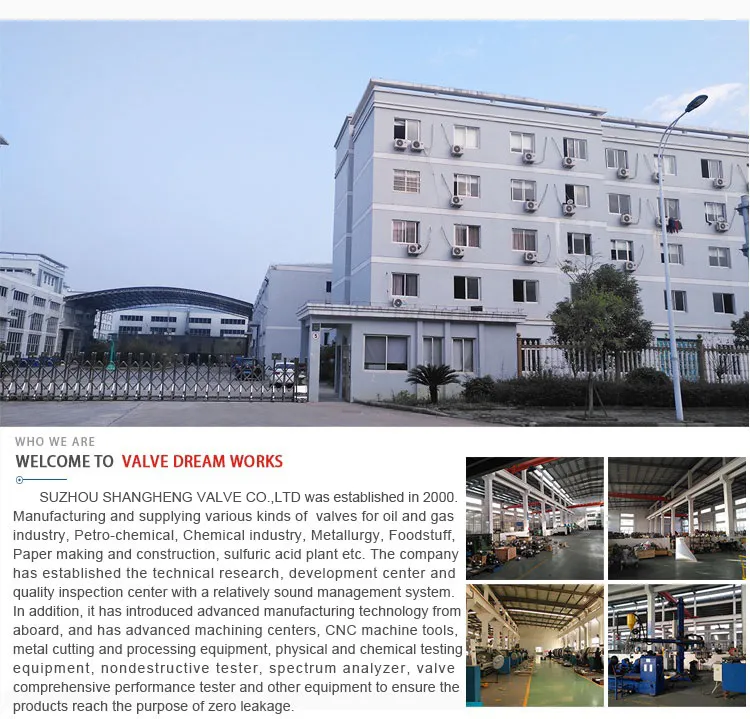

🏢Factory Overview

❓Frequently Asked Questions

Q: Why choose our valves? A: We are a professional manufacturer with over 20 years of experience in valve production, featuring our own large-scale casting foundry to ensure quality control. Q: What is your standard payment term? A: We accept T/T, L/C, and other mutually acceptable payment methods. Q: Do you offer OEM/ODM services? A: Yes, we provide full OEM/ODM services, supporting customized logos, sizes, and specialized packaging to meet your requirements. Q: Which markets do you primarily serve? A: Our products are distributed globally, including North America, South America, Europe, Southeast Asia, the Middle East, and Oceania. Q: Can I request samples before placing a bulk order? A: Yes, product samples can be provided from our factory for quality evaluation. Q: How do you handle quality concerns? A: We take full responsibility for any quality issues. Our dedicated inspection team and engineers ensure every product meets the required standards.
